Fluid - M/T: Service and Repair

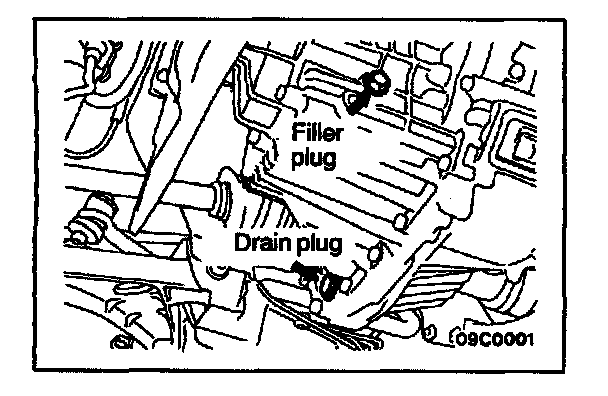

1. Remove transaxle drain plug.
2. Drain oil.
3. Tighten drain plug to specified torque.

Specified torque: 32 Nm (24 ft.lbs.)

4. Remove filler plug and fill with specified oil till the level comes to the lower portion of filler plug hole.

Specified oil: Hypoid gear oil SAE 75W-90 or 75W-85W conforming to API classification GL-4
Quantity: 2.1 dm3 (2.2 qts.)

5. Tighten filler plug to specified torque.

Specified torque: 32 Nm (24 ft.lbs.)
