Home >> Mitsubishi >> 1995 >> Galant L4-2350cc 2.4L DOHC >> Repair and Diagnosis >> Heating and Air Conditioning >> Condenser Fan >> Service and Repair

Condenser Fan: Service and Repair

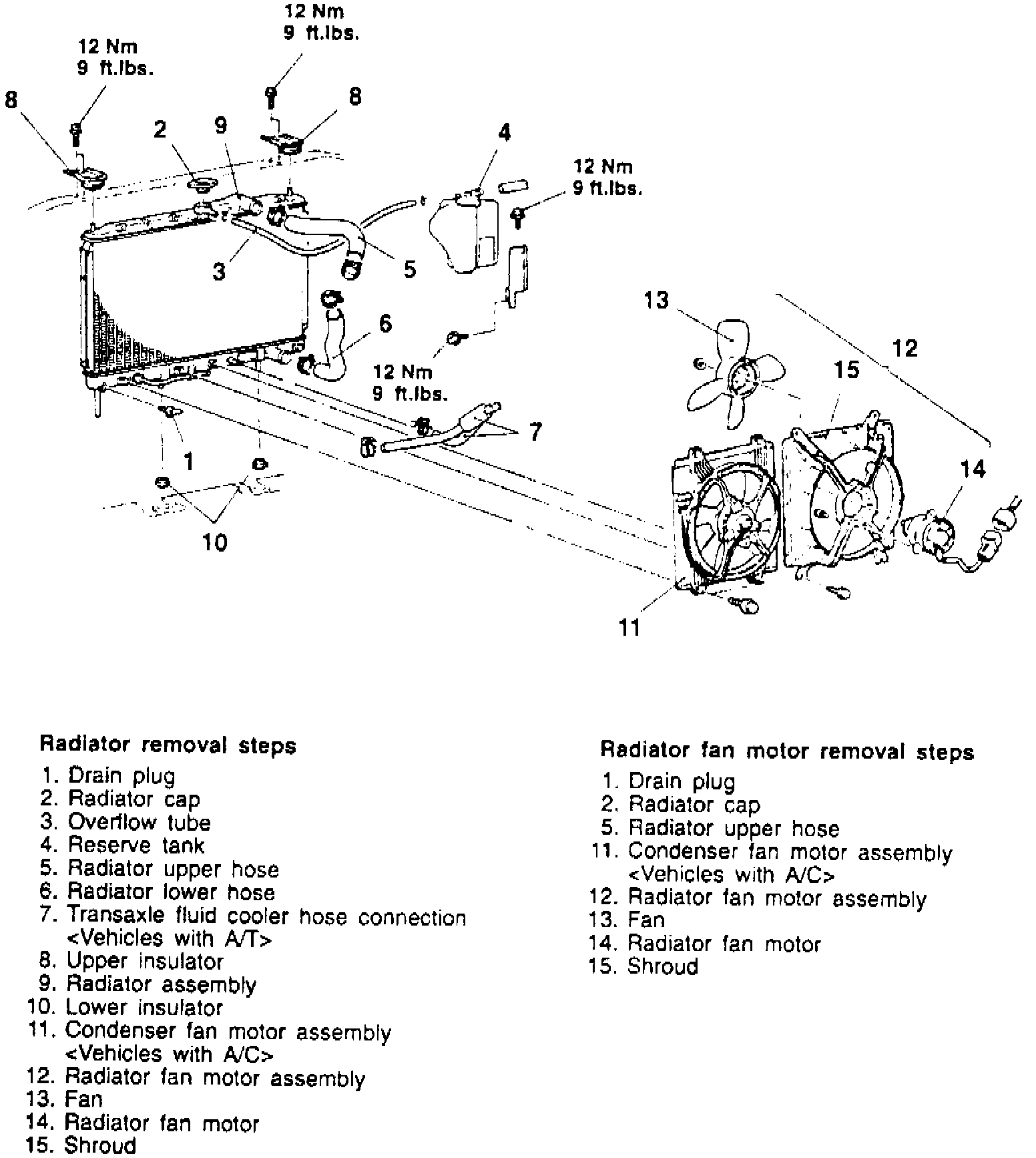

Fig. 47 Cooling Fan System Component Replacement:

Refer to Fig. 47 for component replacement.
