SRS Warning Lamp Bulbs - Manual Revision
NO.: TSB-96-52B-005DATE: July, 1996
MODEL: 1995 Expo/Expo LRV
SUBJECT:
DECREASE IN NUMBER OF SRS WARNING LAMP BULBS (1995 EXPO/EXPO LRV) SERVICE MANUAL REVISION
PURPOSE
The number of Supplemental Restraint System (SRS) warning lamps in the combination meter was decreased from 2 to 1 beginning with November 1994 production. This bulletin revises the service manual circuit diagrams to reflect this change and also revises some incorrect pin numbers on the wiring diagrams.
AFFECTED VEHICLES
1995 Expo/Expo LRV beginning with 11/94 production
AFFECTED MANUALS
1992-96 Expo/Expo LRV, Volume 1, Page 52B-8
1992-96 Expo/Expo LRV, Volume 1, Page 52B-14
1992-96 Expo/Expo LRV, Volume 1, Page 52B-27
1992-96 Expo/Expo LRV, Volume 1, Page 52B-50
1992-96 Expo/Expo LRV, Volume 2, Page 462
SRS General Information
SERVICE MANUAL REVISIONS
1992-96 Expo/Expo LRV Service manual, Volume 1, Page 52B-8

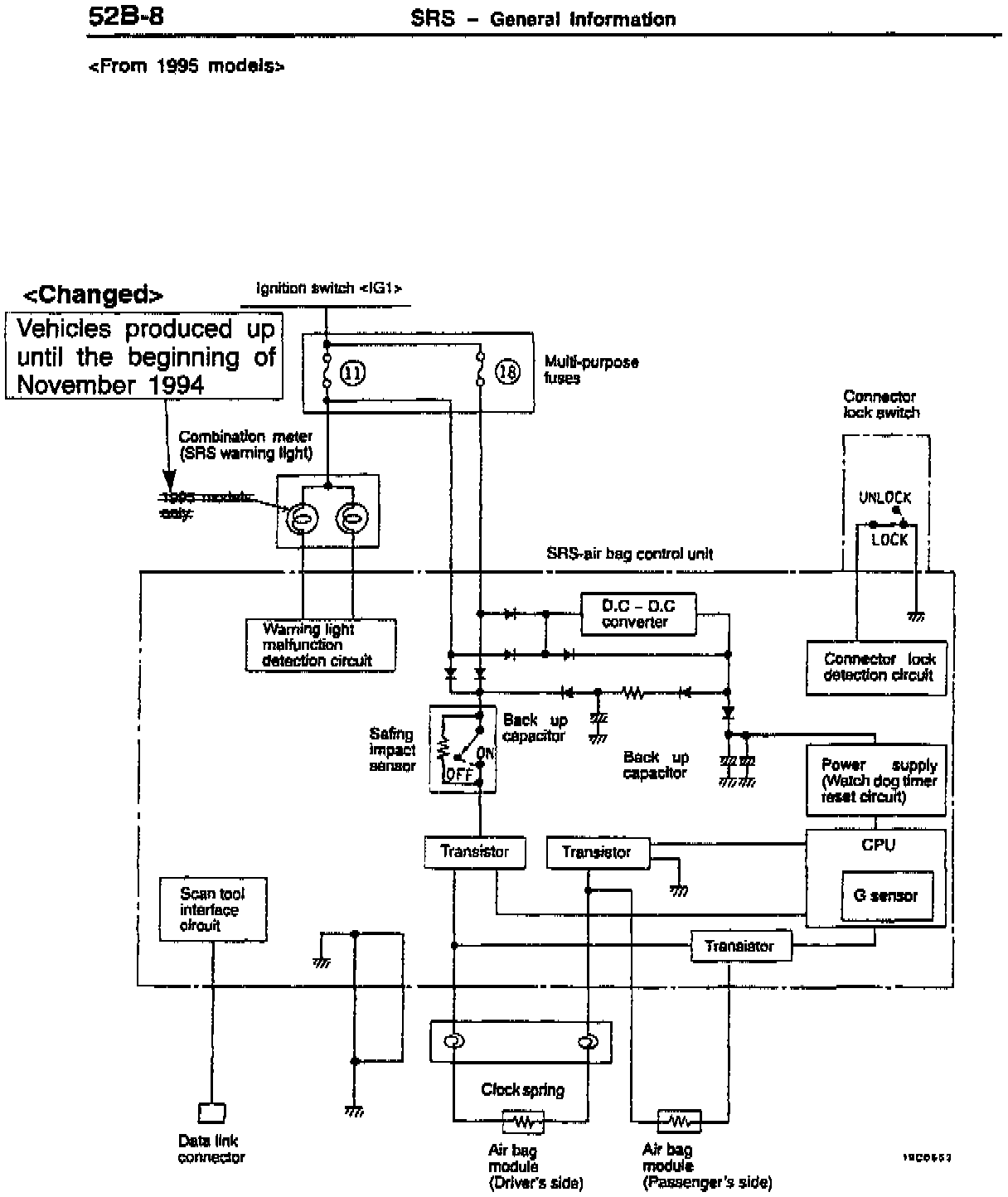

Make the necessary changes in the manual to indicate that the second SRS indicator bulb in the combination meter was eliminated starting with November 1994 production.
SRS General Information
1992-96 Expo/Expo LRV Service Manual, Volume 1, Page 52B-14

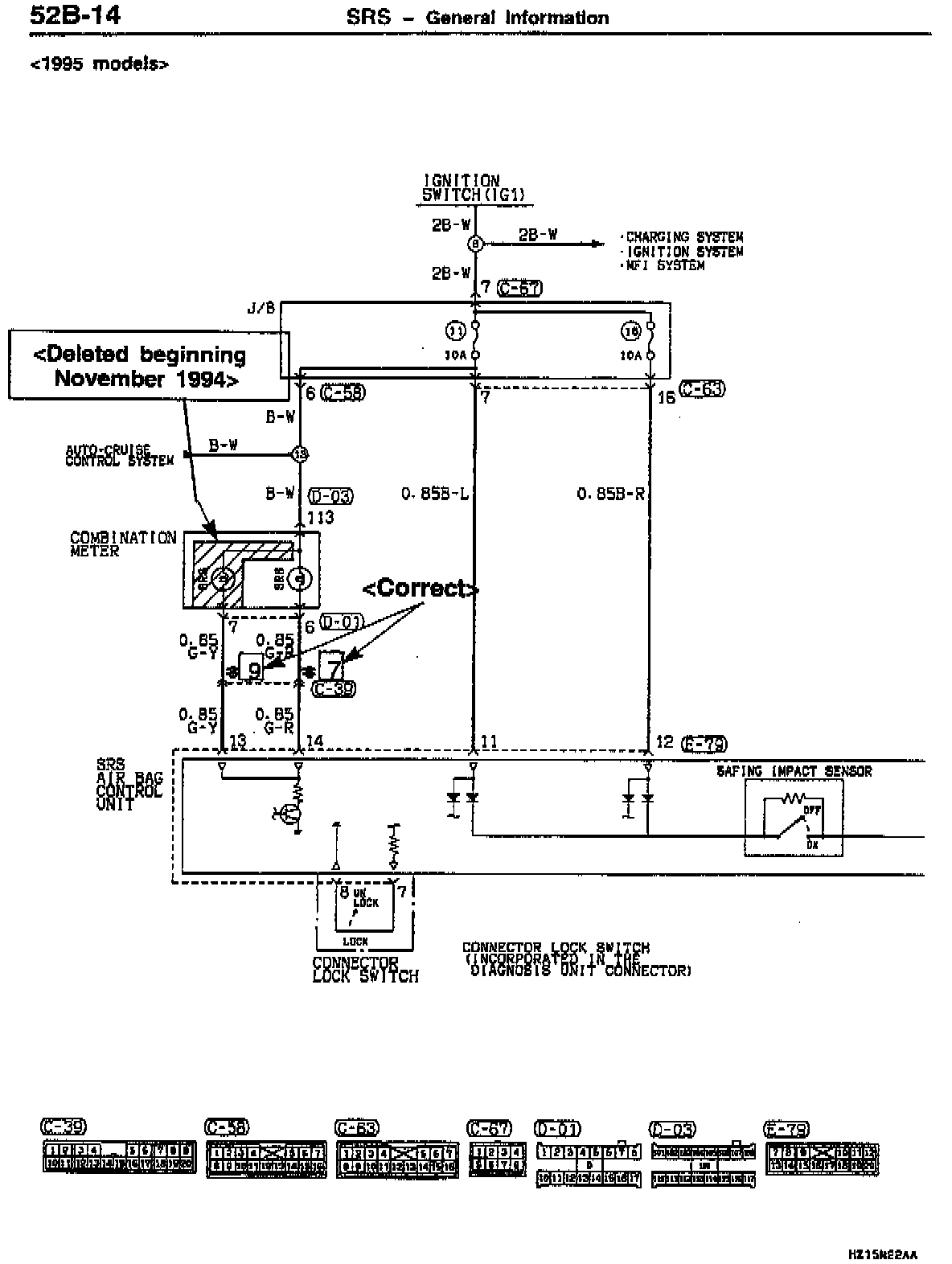

Make the necessary changes in the manual to indicate that the second SRS indicator bulb in the combination meter was eliminated beginning with November 1994 production, Also, correct the pin numbers on the wiring diagram as shown.
SRS Troubleshooting
1992-96 Expo/Expo LRV Service Manual, Volume 1, Page 52B-27

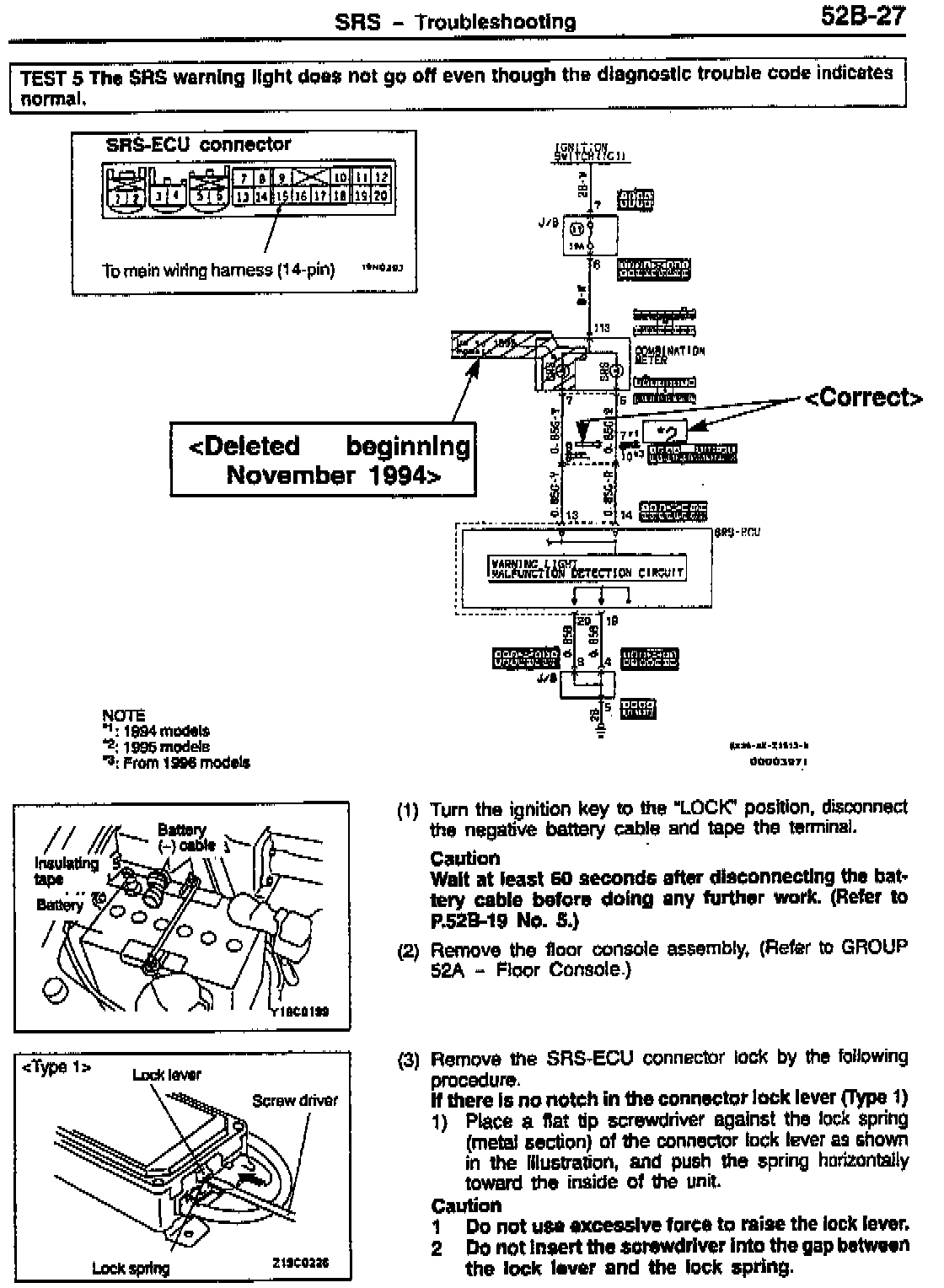

Make the necessary changes in the manual to indicate that the second SRS indicator bulb in the combination meter was eliminated beginning with November 1994 production. Also, correct the pin number on the wiring diagram as shown.
SRS Troubleshooting
1992-96 Expo/Expo LRV Service Manual, Volume 1, Page 52B-50

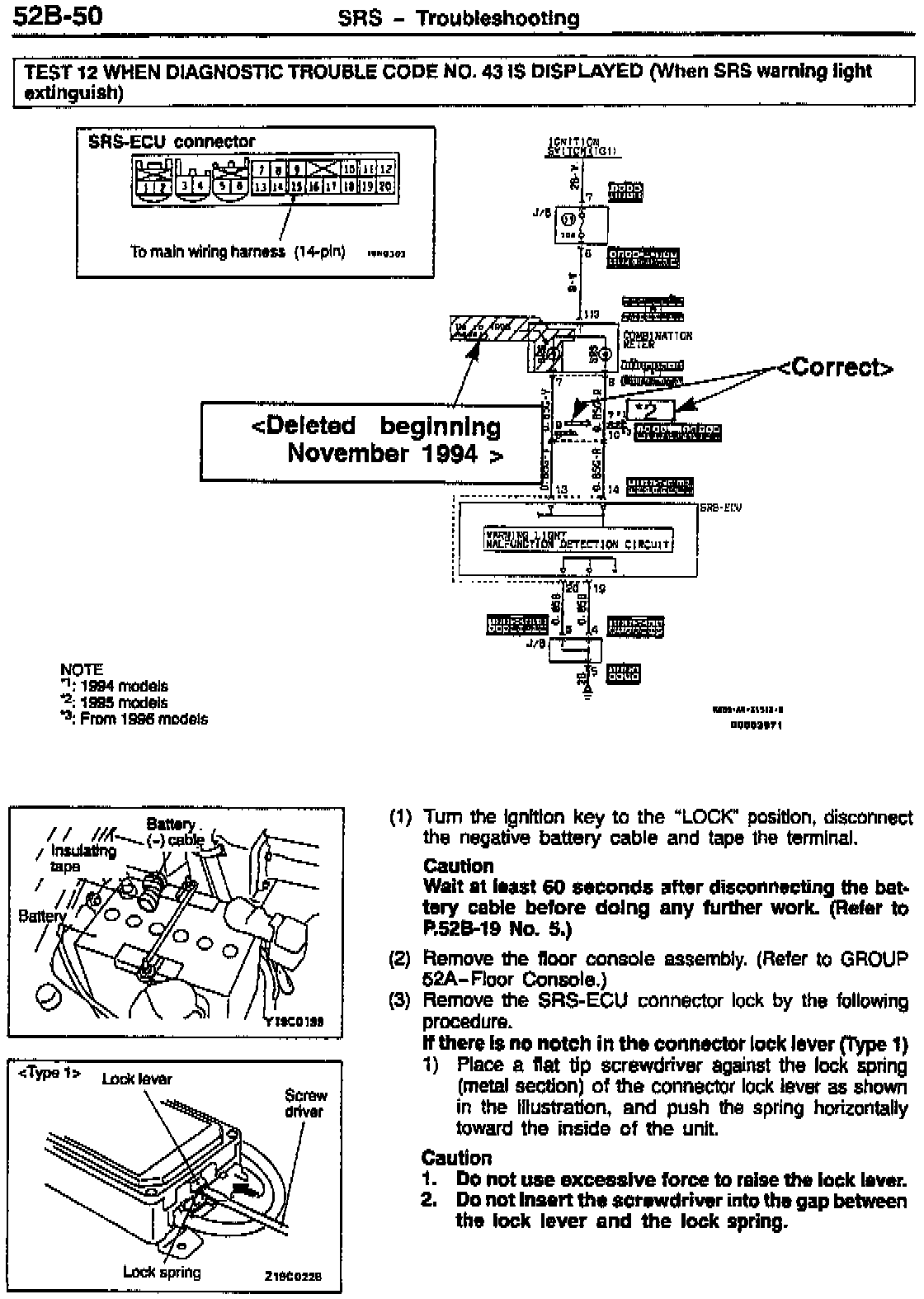

Make the necessary changes in the manual to indicate that the second SRS indicator bulb in the combination meter was eliminated beginning with November 1994 production. Also, correct the pin number on the wiring diagram as shown.
Circuit Diagrams Supplemental Restraint System
1992-96 Expo/Expo LRV Service Manual, Volume 2, Page 462

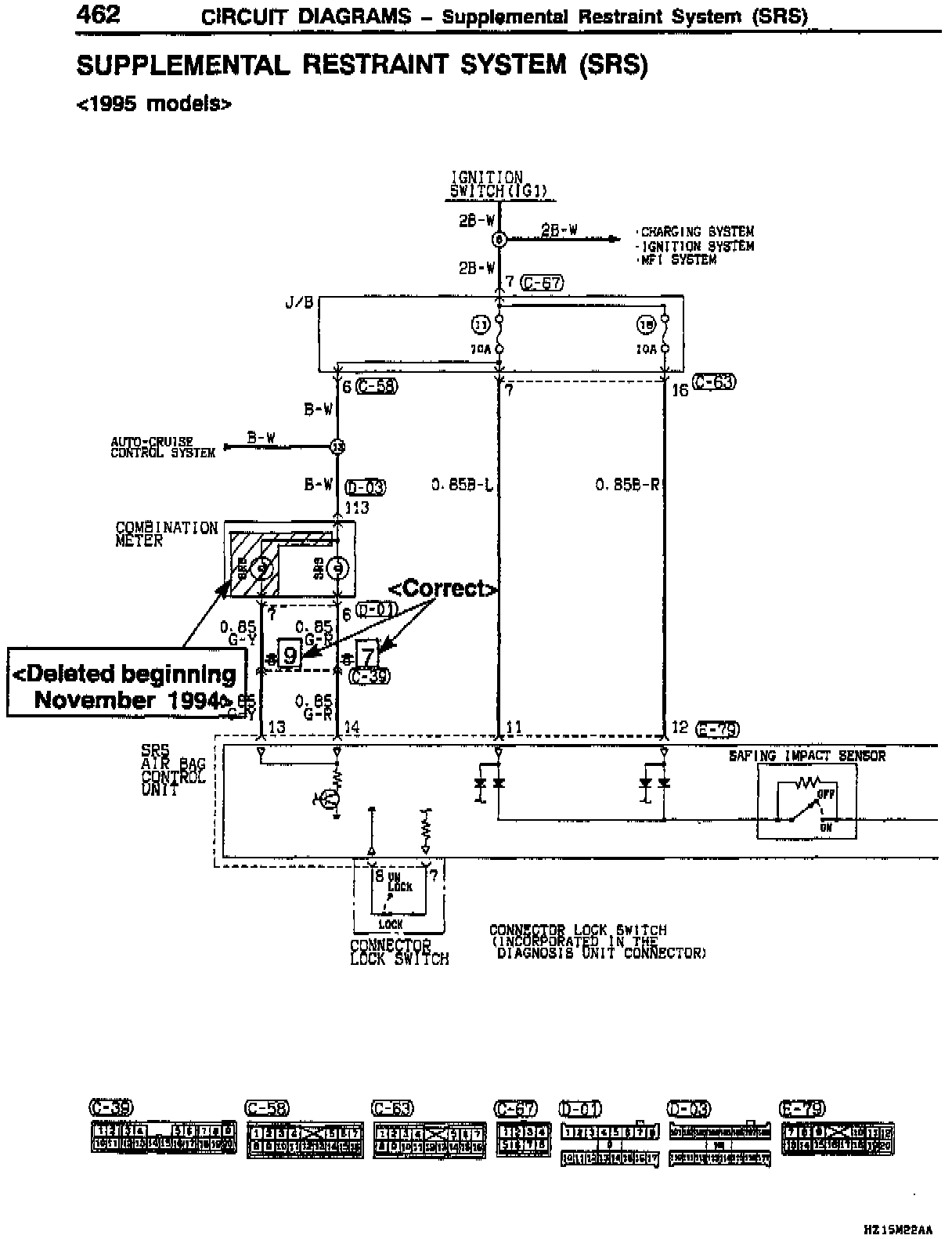

Make the necessary changes in the manual to indicate that the second SRS indicator bulb in the combination meter was eliminated beginning with November 1994 production. Also, correct the pin numbers on the wiring diagram as shown.
