Condenser Fan Motor Relay: Testing and Inspection

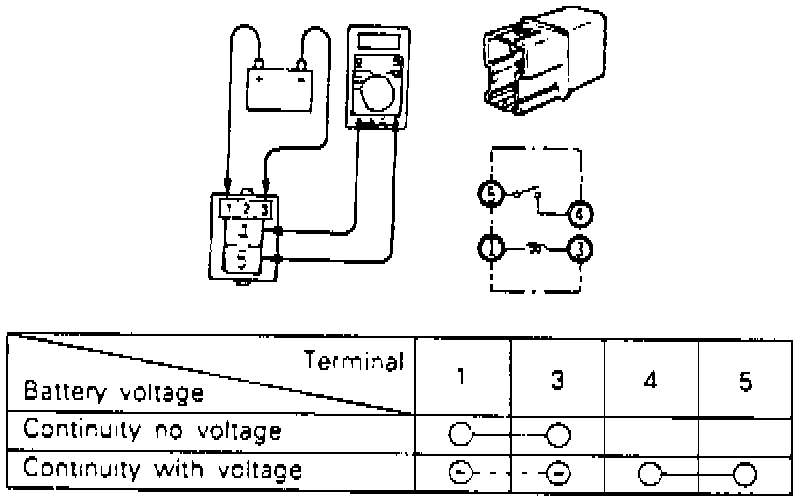

Fig. 38 Condenser Fan Motor Relay Inspection:





Test condenser fan motor relay as shown in Fig. 38.
