Service Data Reference Table

SERVICE DATA REFERENCE TABLE

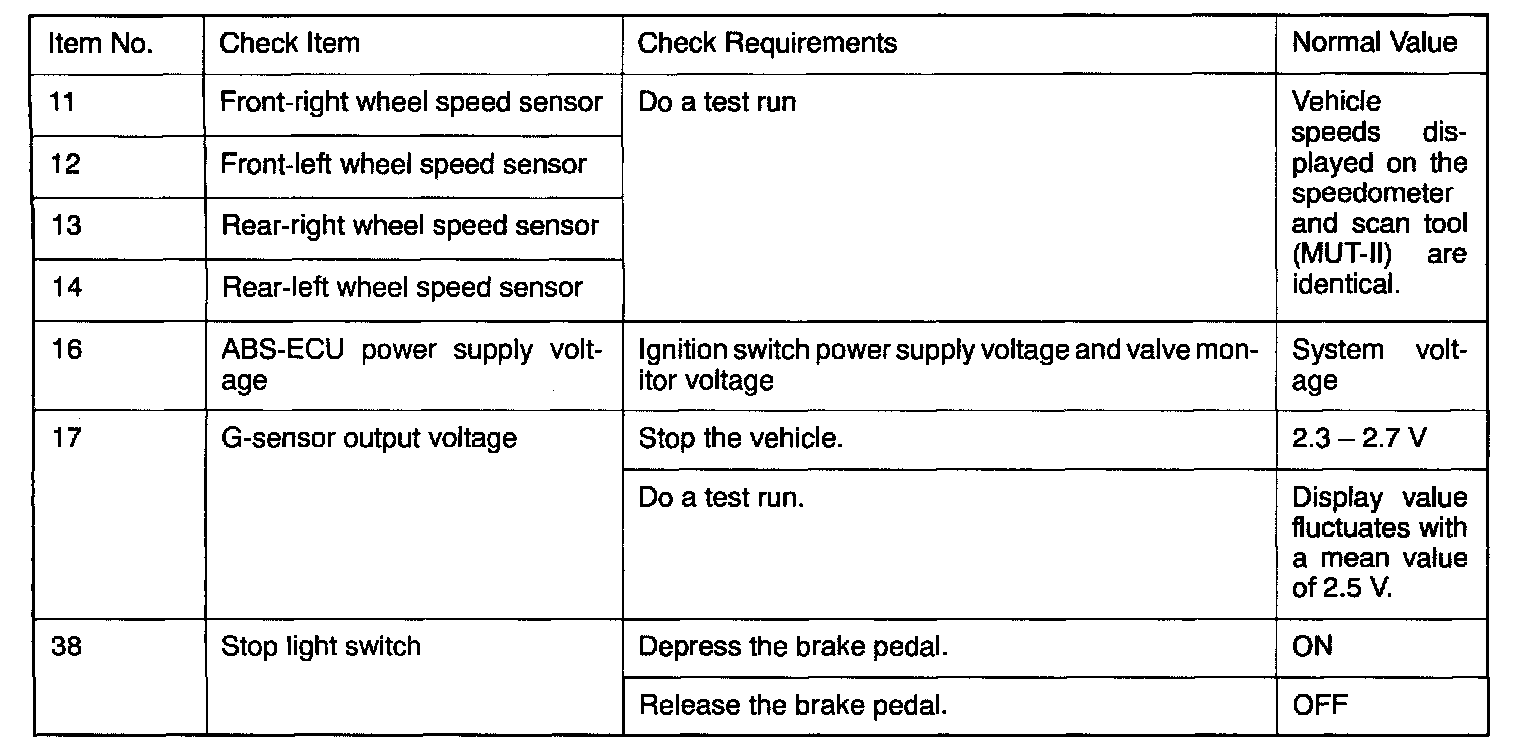

The following items can be read by the scan tool (MUT-II) from the ABS-ECU input data.





1. When the system is normal use the chart above.

2. When the ABS-ECU has shut off ABS operation.
When the diagnosis system stops the ABS-ECU, the scan tool (MUT-II) display data will be unreliable.
