Actuator Testing and Reference Tables

ACTUATOR TEST REFERENCE TABLE

The scan tool (MUT-II) activates the following actuators for testing.

NOTE:
1. If the ABS-ECU runs down, actuator testing cannot be carried out.





2. Actuator testing is only possible when the vehicle is stationary. If the vehicle speed during actuator testing exceeds 10 km/h, forced actuation will cancels.

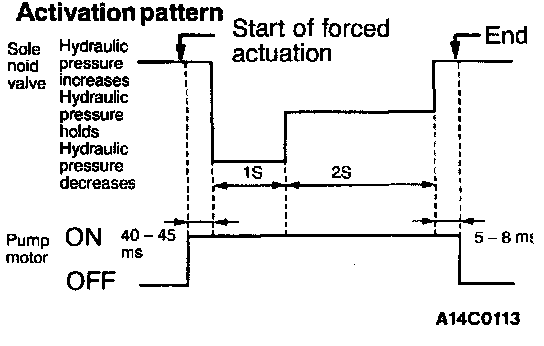

ACTUATOR TEST SPECIFICATIONS
