Automatic Transmission

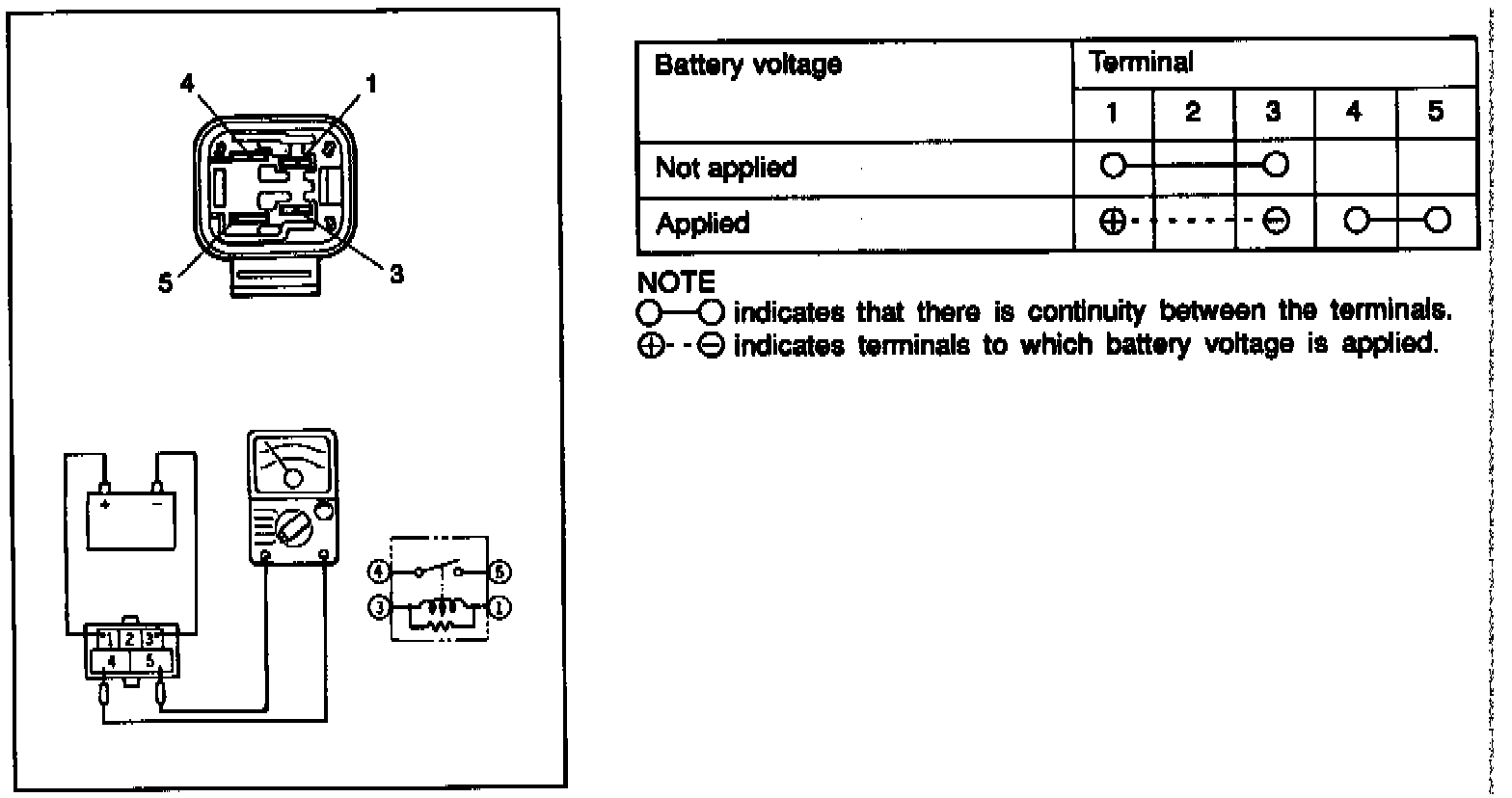

Fig. 15 Starter Relay Test:





Fig. 17 Theft Alarm & Starter Relay Test:





For relay testing, refer to Fig. 15 and 17.
