Mitsubishi
>>
1995
>>
Eclipse AWD L4-1997cc 2.0L DOHC Turbo
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>

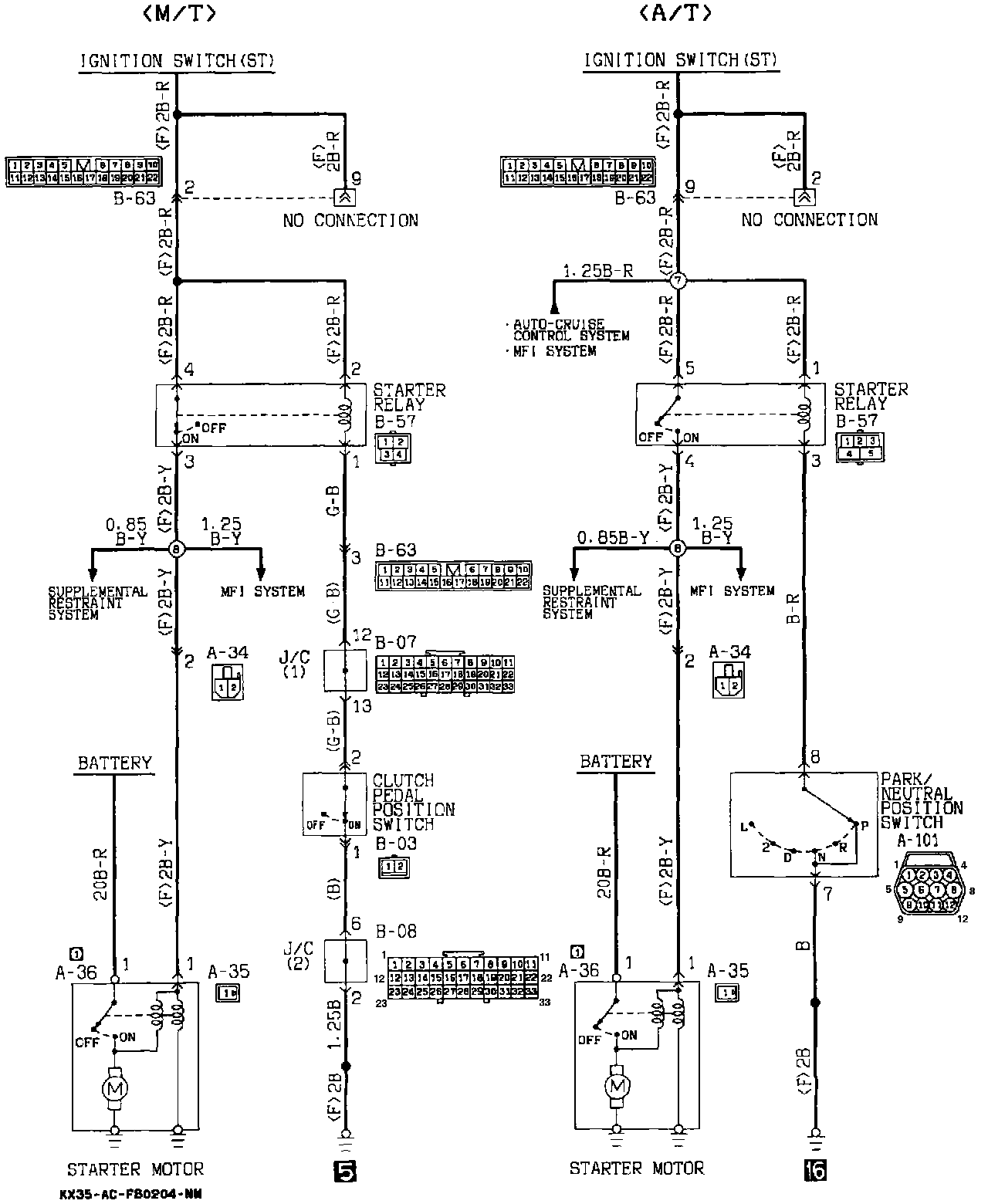

Starting System
>>
Vehicles Without Theft Alarm
Vehicles Without Theft Alarm
Troubleshooting Circuit:
