Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Mitsubishi
>>
1995
>>
Eclipse AWD L4-1997cc 2.0L DOHC Turbo
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Ignition System
Ignition System

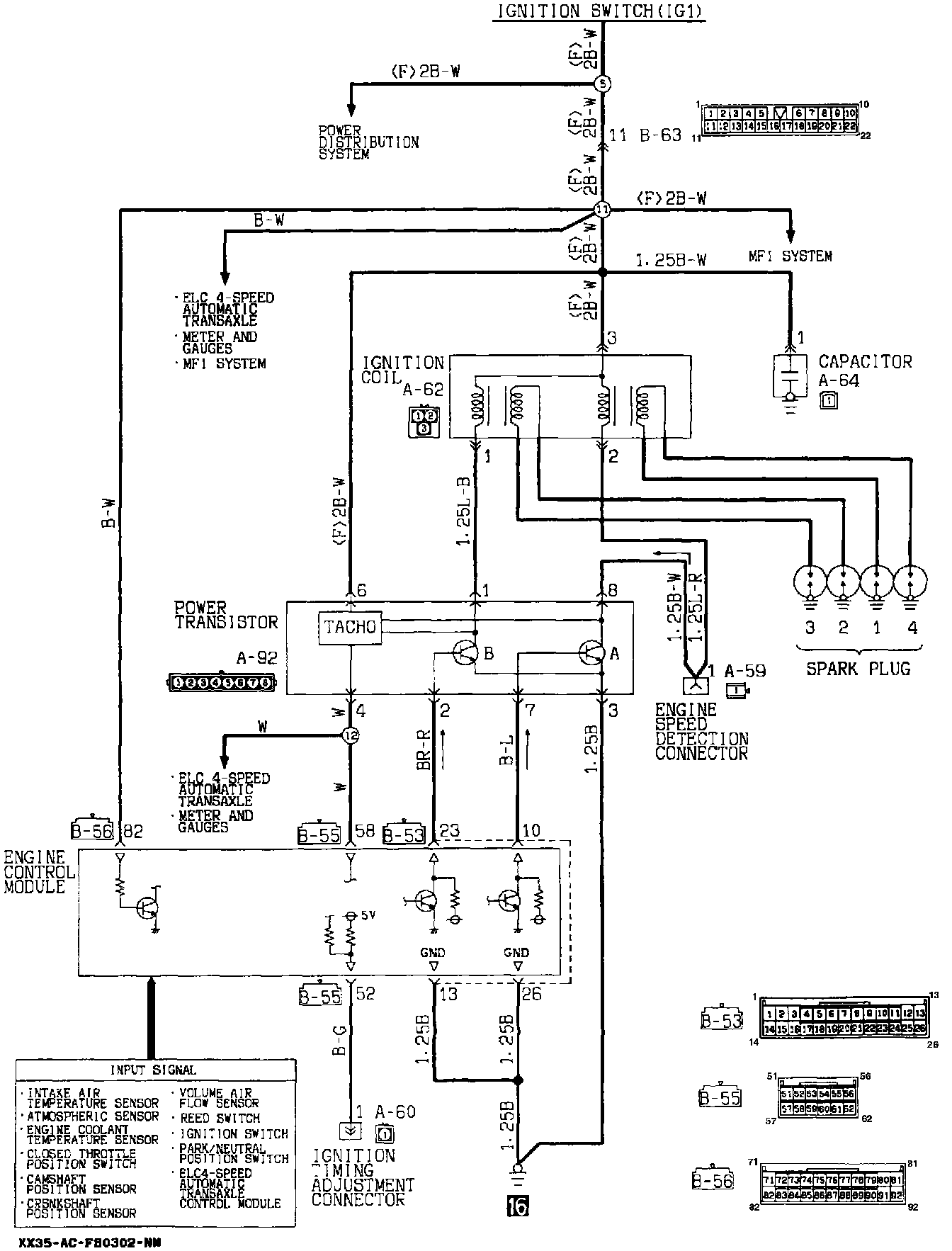

Troubleshooting Circuit:
