Camber

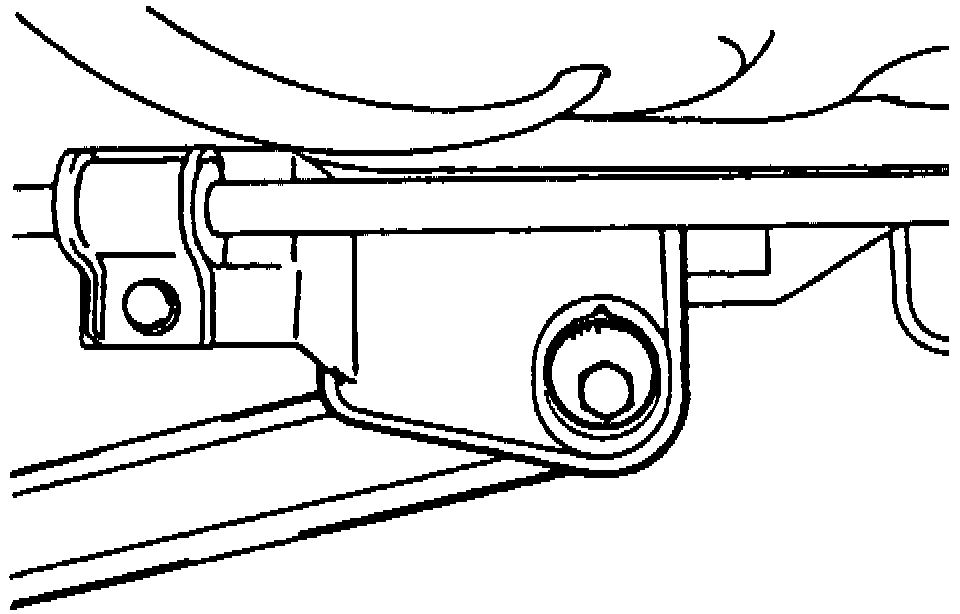

Fig. 2 Rear Camber Adjustment:

1. Turn lower arm mounting bolt to adjust rear camber, Fig. 2.
2. On models with 2 wheel steering, loosen assist link mounting bolt prior to camber adjustment.
3. On models with 4 wheel steering, disconnect power cylinder tie rod end from knuckle prior to adjustment.
4. Difference between both wheels should not exceed 1/2°.
