System Diagram
>>
Without Traction Control (TCL)
>>
Part 1 of 7
Part 1 of 7

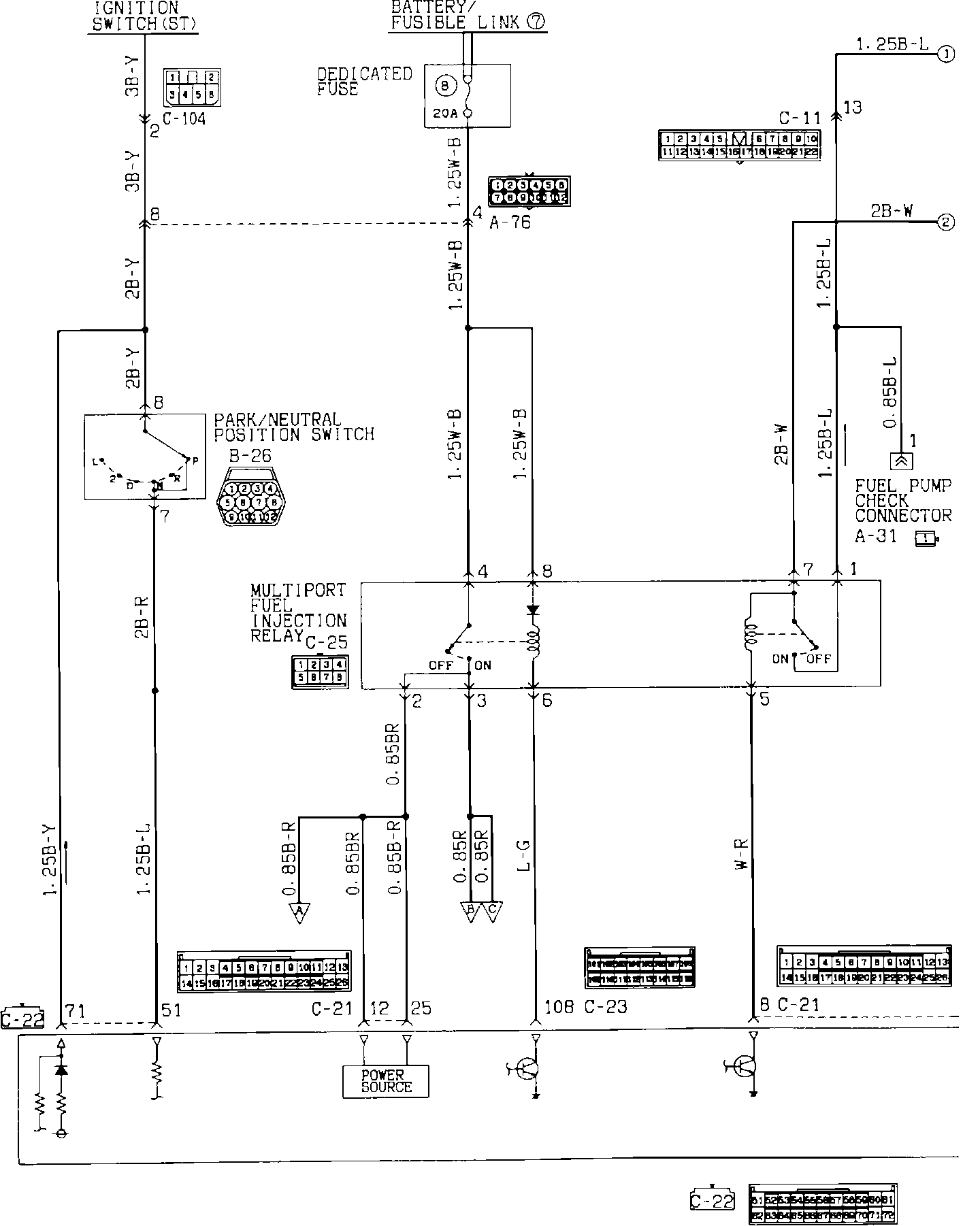

Engine Control Module Wiring Diagram (1 Of 2):
