Troubleshooting Guide

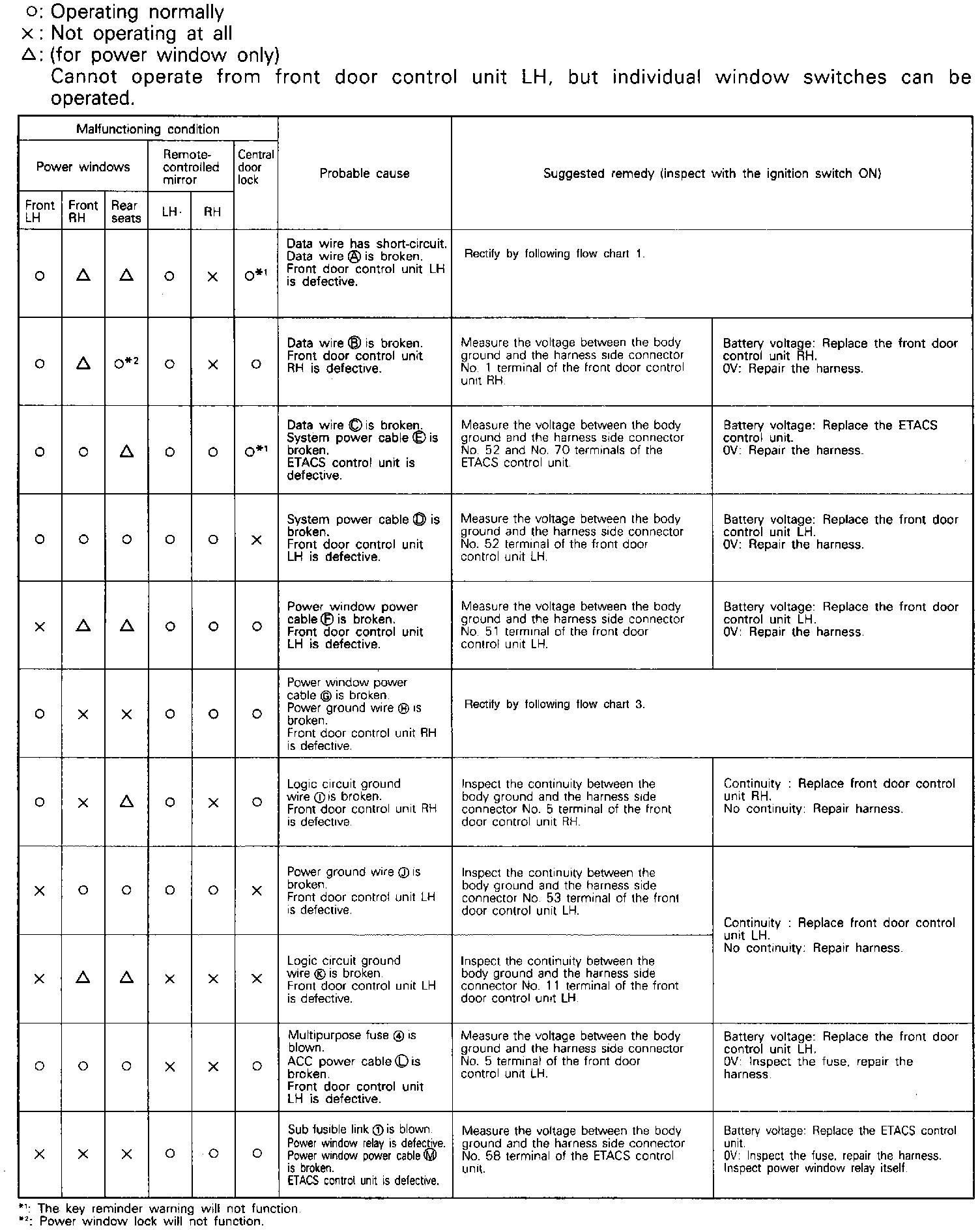

Quick Reference Troubleshooting Guide:

1. Check for malfunctions by carrying out all of the following operations that are controlled by the SWS:
- Operation of the remote control mirror.
- Operation of all of the power windows by the front door control unit LH.
- Operation of the power window by the front door control unit RH.
- Operation of the power windows by the rear power window units (RH and LH).
- Operation of the central door lock by the front door control unit LH.
2. After examining the malfunction problem that has been checked against the quick reference troubleshooting guide, follow the procedure indicated to rectify the fault.
If the malfunction is not in the quick reference troubleshooting guide, inspect the related fuses and connectors.
