Diamante Sedan V6-2972cc 3.0L DOHC 24 Valve
>>
Repair and Diagnosis
>>
Windows and Glass
>>
Windows
>>
Testing and Inspection
>>
Component Tests and General Diagnostics
>>
Simplified Wiring System (SWS) Testing
>>
Chart 2
Chart 2

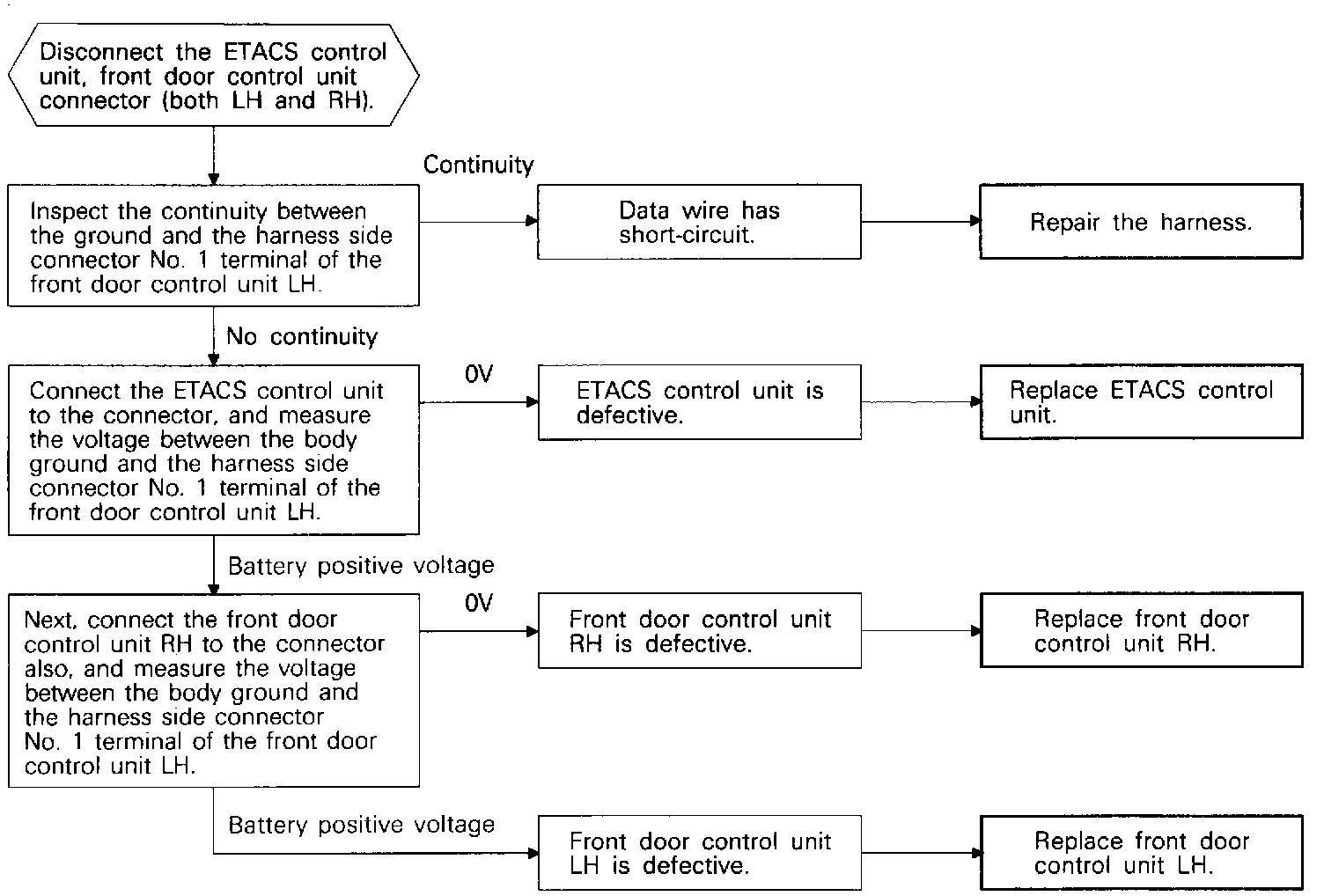

Flow Chart 2:
Inspection of Data Wire Short-Circuits
