Home
>>
Mitsubishi
>>
1995
>>
Diamante Sedan V6-2972cc 3.0L DOHC 24 Valve
>>
Repair and Diagnosis
>>
Windows and Glass
>>
Windows
>>
Testing and Inspection
>>
Component Tests and General Diagnostics
>>
Simplified Wiring System (SWS) Testing
>>
Chart 1
Chart 1

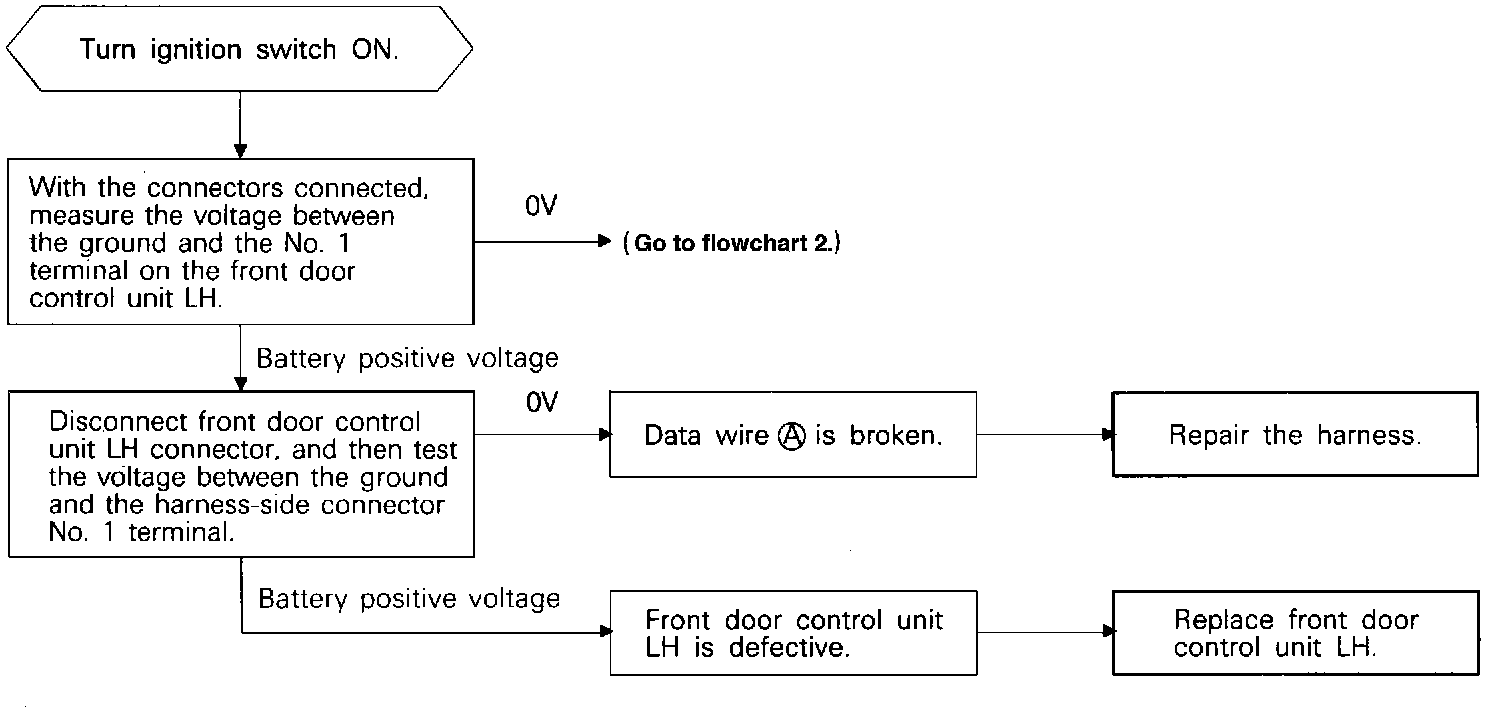

Flow Chart 1:
Inspection of Broken Data Wires
