Starter Relay: Testing and Inspection

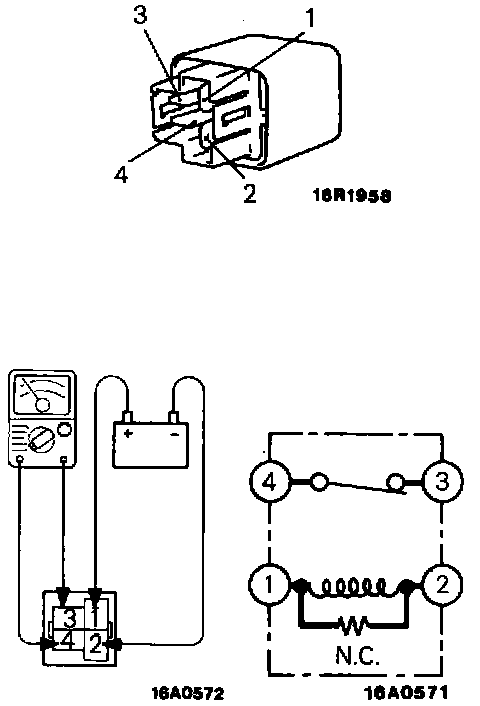

Starter Relay Continuity Check:

1. Remove the battery and air cleaner assembly.
2. Remove the starter relay.

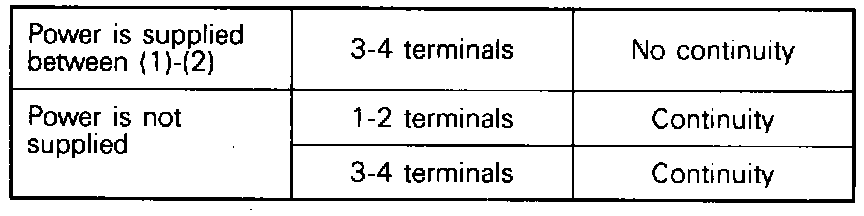

Starter Relay Continuity Check Table:

3. Connect battery to terminal 1 and check continuity between terminals with terminal 2 grounded.
