Ignition Switch: Service and Repair

Ignition Switch - Removal And Installation:

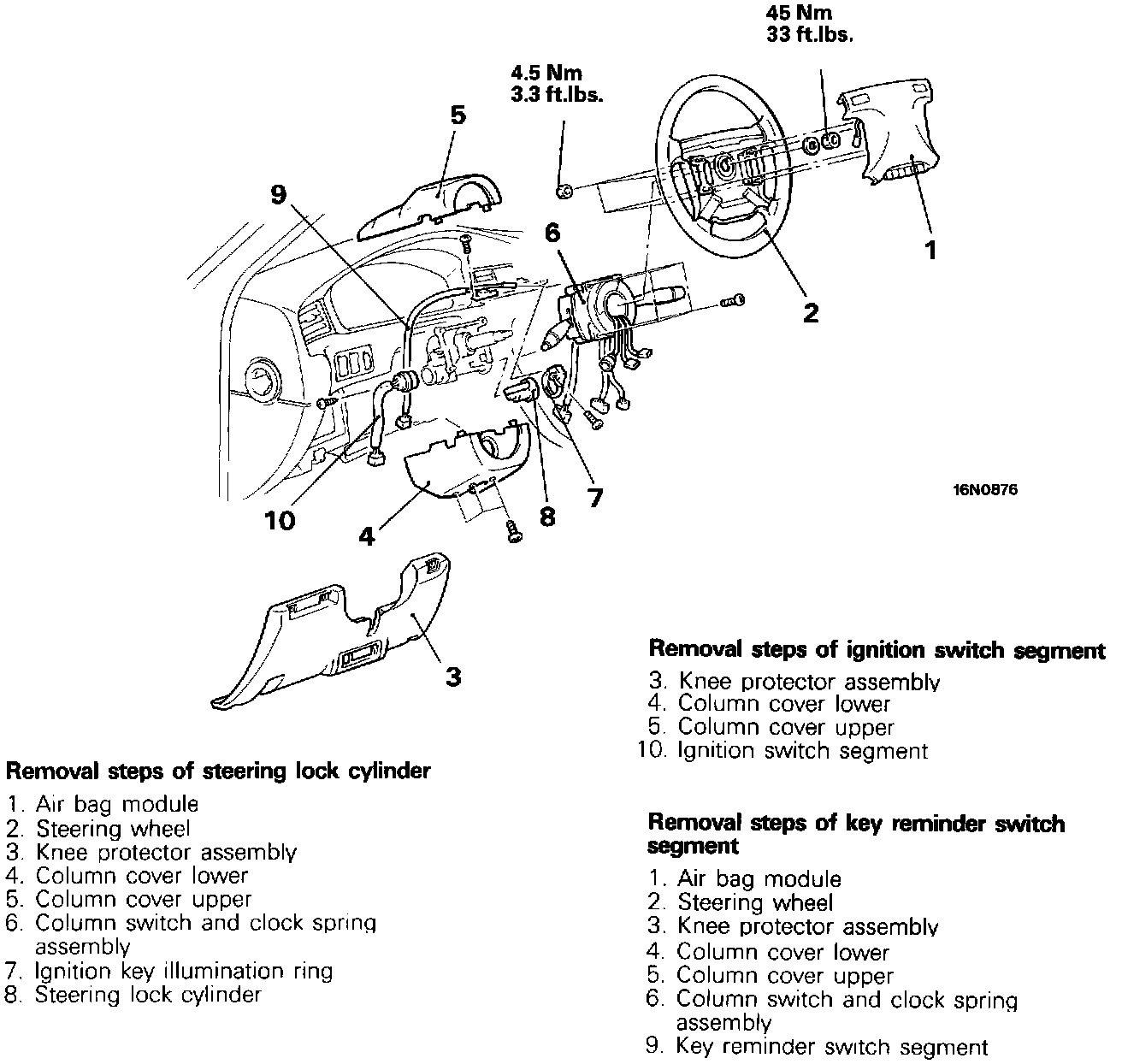

Fig. 7 Ignition Lock Cylinder Removal:

CAUTION: Before removal of air bag module, refer to Air Bag Module and Clock Spring.


REMOVE
Steering Lock Cylinder
1. Air bag module
2. Steering wheel
3. Knee protector Assembly
4. Column cover, lower
5. Column cover, upper
6. Column switch and clock spring assembly
7. Ignition key illumination ring
8. Steering lock cylinder

Ignition Switch Segment
3. Knee protector
4. Column cover, lower
5. Column cover, upper
10. Ignition switch segment

Key Reminder Switch
1. Air bag module
2. Steering wheel
3. Knee protector assembly
4. Column cover lower
5. Column cover upper
6. Column switch and clock spring assembly
9. Key reminder switch segment


INSTALL
Steering Lock Cylinder
1. Steering lock cylinder
2. Ignition key illumination ring
3. Column switch and clock spring assembly
4. Column cover, upper
5. Column cover, lower
6. Knee protector Assembly
7. Steering wheel
8. Air bag module


Ignition Switch Segment
3. Ignition switch segment
4. Column cover, upper
5. Column cover, lower
10. Knee protector

Key Reminder Switch
1. Key reminder switch segment
2. Column switch and clock spring assembly
3. Column cover upper
4. Column cover lower
5. Knee protector assembly
6. Steering wheel
9. Air bag module
