Removal And Installation Steps

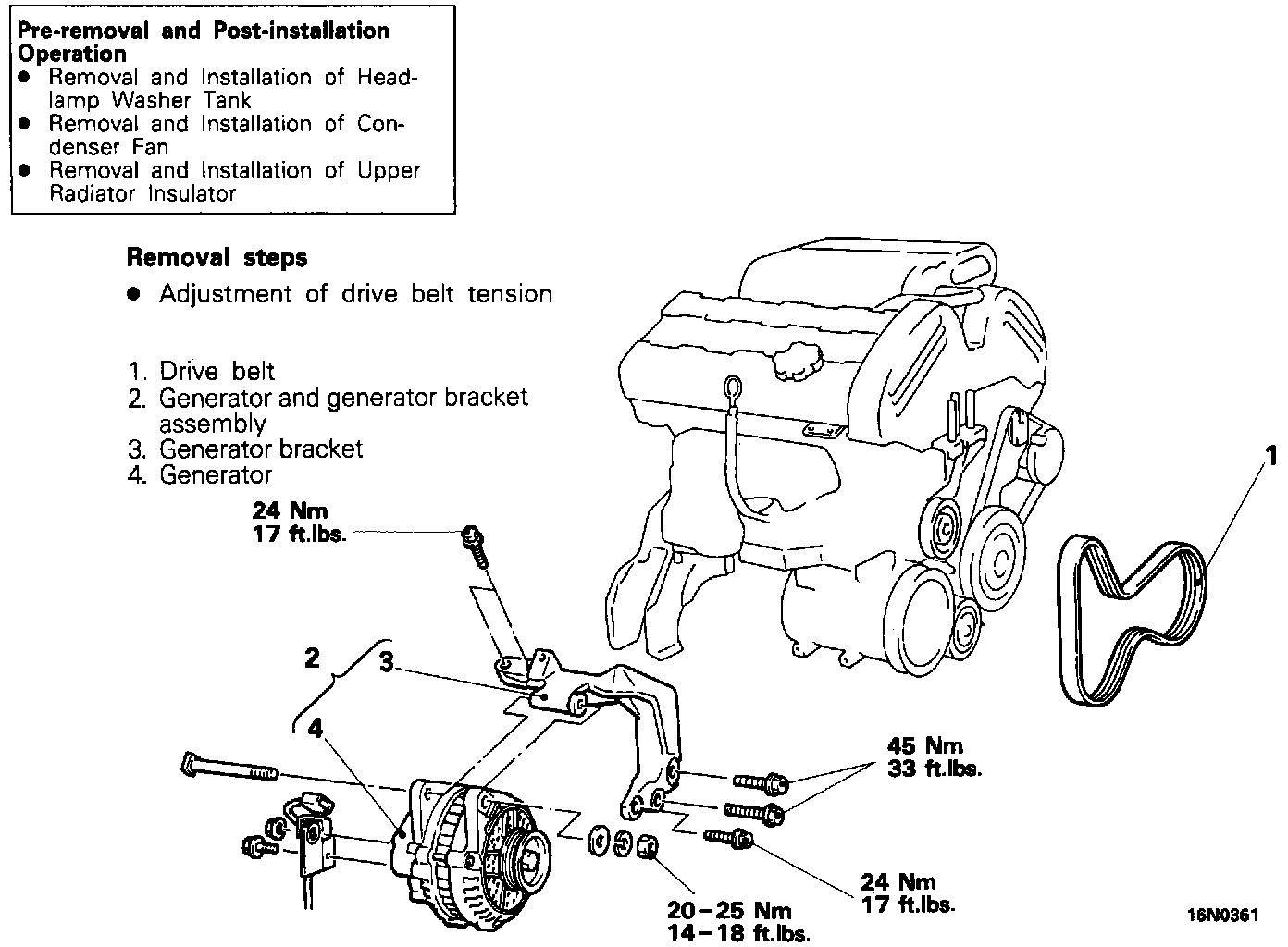

Generator - Removal And Installation:

Pre-Removal
- Headlamp Washer Tank
- Condenser Fan
- Upper Radiator Insulator

REMOVE
- Adjustment of drive belt tension
1. Drive belt
2. Generator and Generator Bracket Assembly
3. Generator Bracket
4. Generator

INSTALL
1. Generator
2. Generator Bracket
3. Generator and Generator Bracket Assembly
4. Drive belt
- Adjustment of drive belt tension

Post-Installation
- Headlamp Washer Tank
- Condenser Fan
- Upper Radiator Insulator
