Heated Glass Element Relay: Testing and Inspection

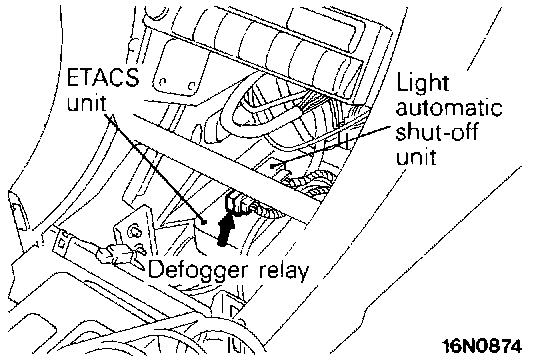

Defogger Relay:

1. Remove the floor console.

Defogger Relay Continuity Check:

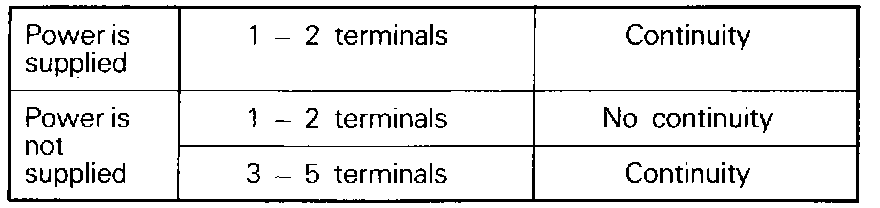

Defogger Relay Continuity Check Table:

2. Connect battery power source to terminal 5. Check circuit between terminals with terminal 3 grounded.
