Accessory Delay Module: Testing and Inspection

Light Automatic Shut-Off Unit:

1. Remove the floor console.

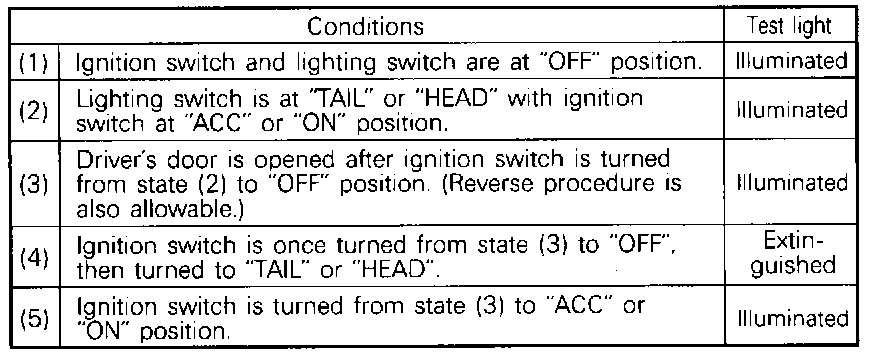

Light Automatic Shut-Off Unit Conditions:

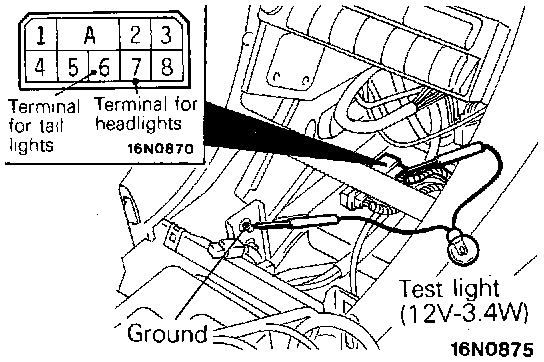

2. Keeping the connector connected to the light automatic shut-off unit, connect the test light (12 V - 3.4 W) from the harness side to terminal No. 6 (for tail lights) or No. 7 (for headlights). According to the above conditions, check the operation of the test light.
