Ignition System: Service and Repair

Pre-Removal
- Intake Manifold Plenum
- Timing Belt Cover

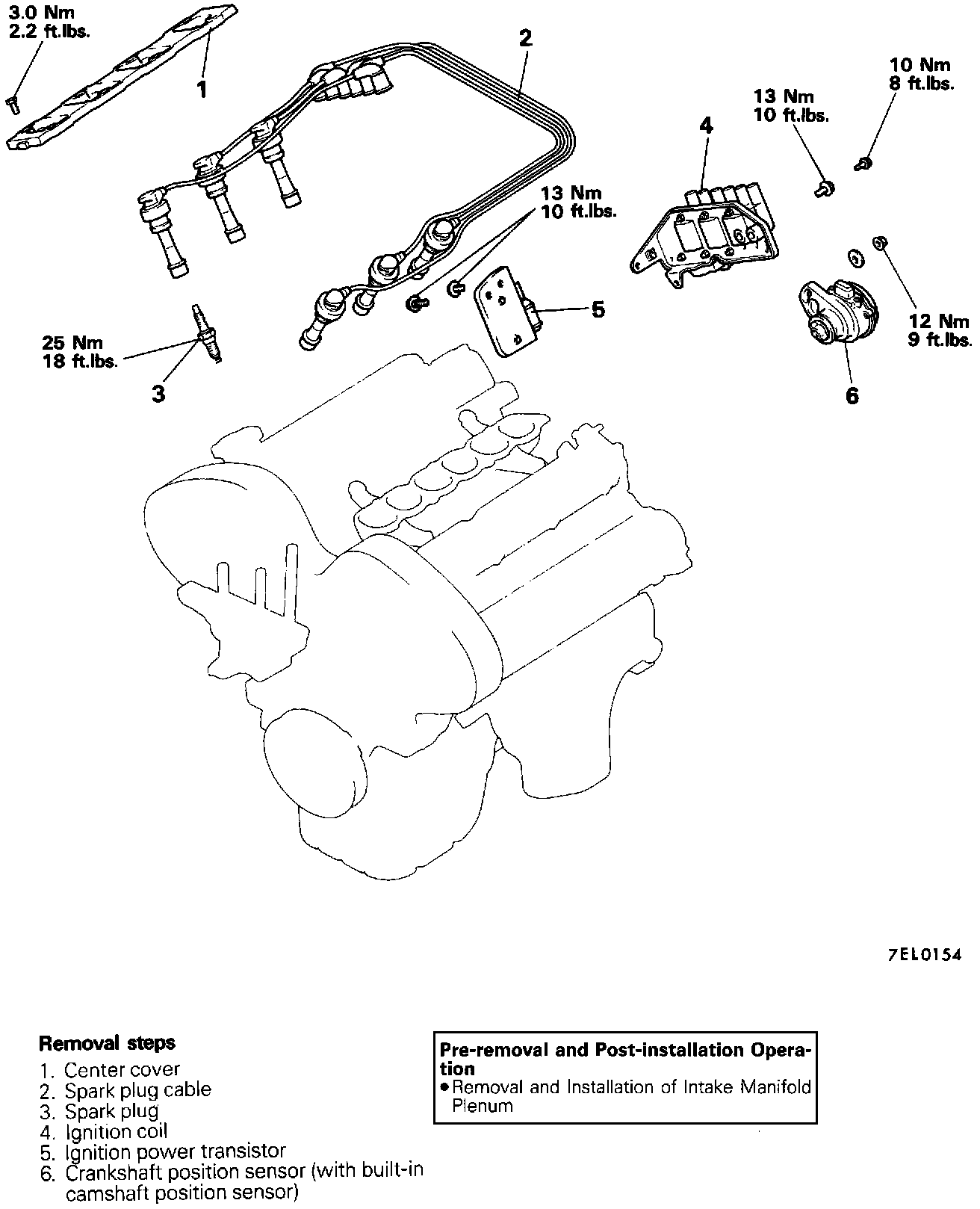

REMOVE
1. Center cover
2. Spark plug cable
3. Spark plug
4. Ignition coil
5. Ignition power transistor
6. Crankshaft position sensor (with built-in camshaft position sensor)

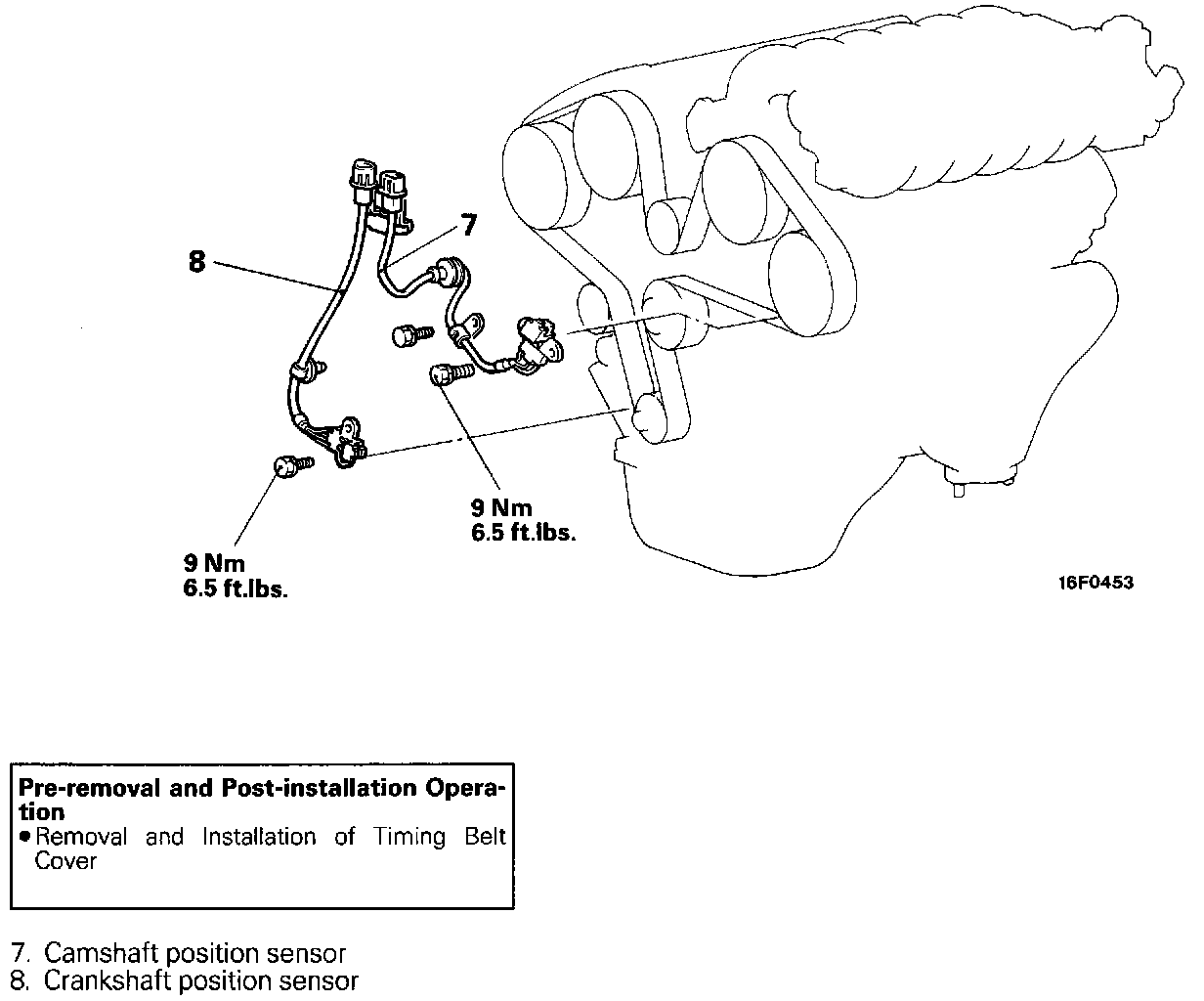

7. Camshaft Position Sensor
8. Crankshaft position sensor

INSTALL
1. Crankshaft position sensor
2. Camshaft Position Sensor
3. Crankshaft position sensor (with built-in camshaft position sensor)
4. Ignition power transistor
5. Ignition coil
6. Spark plug
7. Spark plug cable
8. Center cover
Post-Removal
- Timing Belt Cover
- Intake Manifold Plenum
