Multi-Purpose Fuses (In Junction Block)

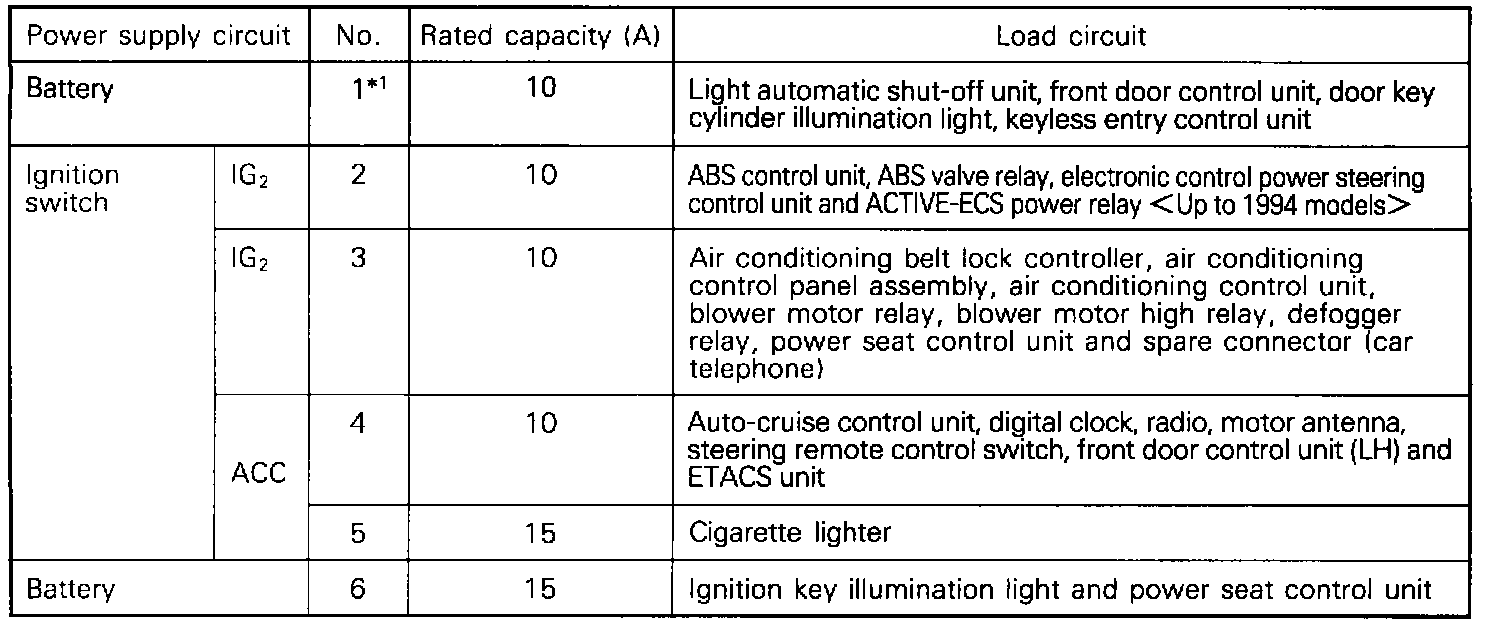

Multipurpose Fuse Block:

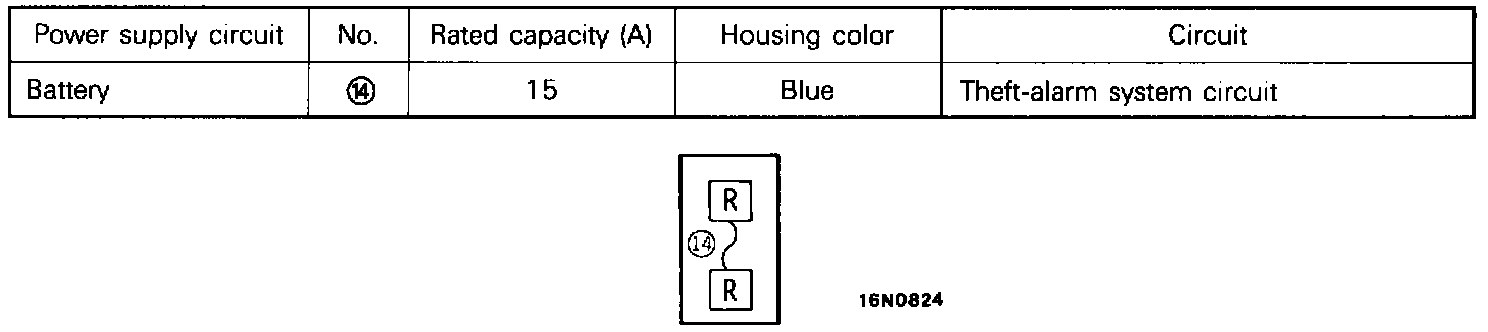

Dedicated Fuse (Relay Box In Passenger Compartment):



Dedicated Fuse:

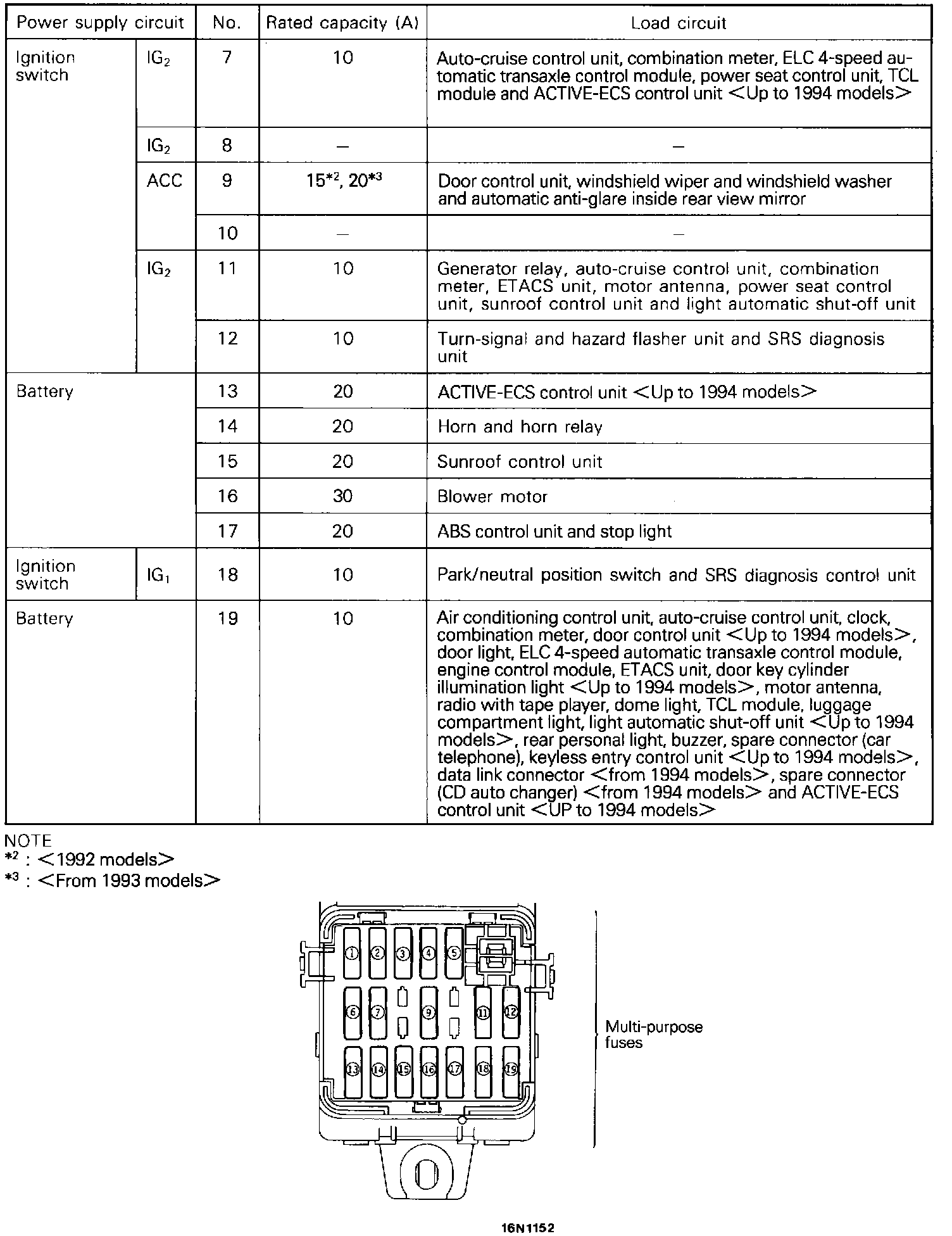

Multi-Purpose Fuse (In Junction Block):

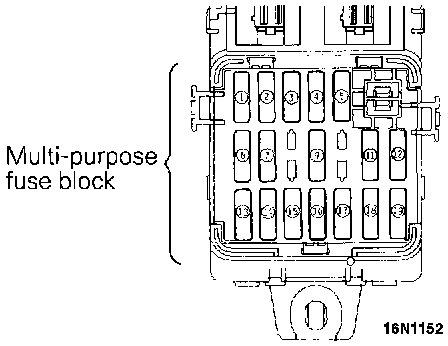

Multi-Purpose Fuse (In Junction Block):

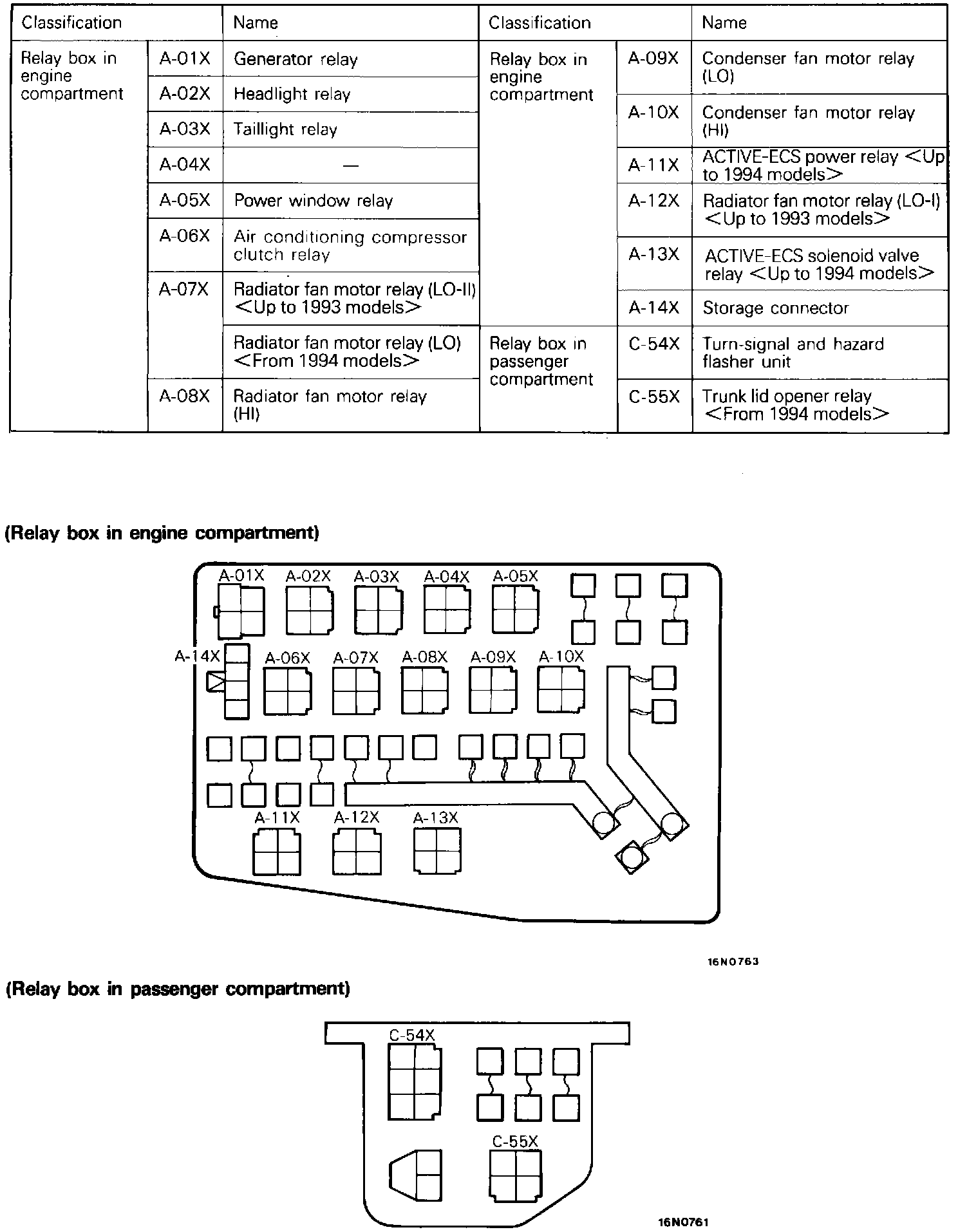

Multi-Purpose Relay (Relay In Engine And Passenger Compartment):
