Toe-In

2 Wheel Steering

Fig. 3 Rear Toe-In Adjustment:

Adjust rear toe-in by turning assist link mounting bolt an equal amount on both sides, Fig. 3.

4 Wheel Steering

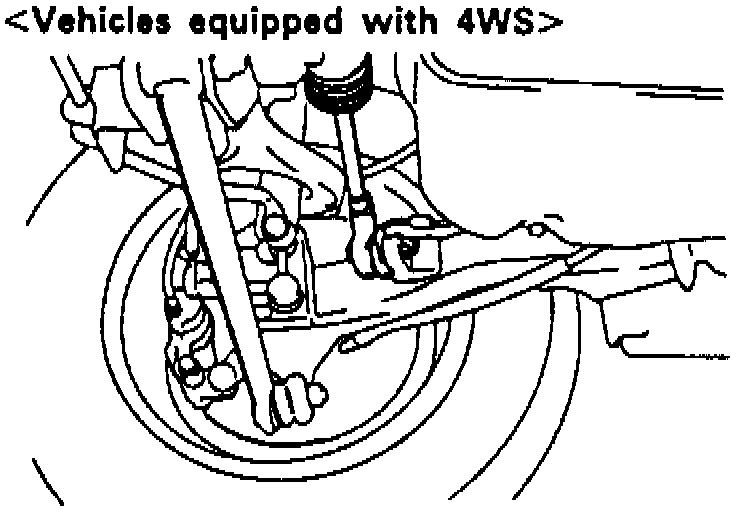

Fig. 4 Rear Toe-In Adjustment:

Adjust rear toe-in by turning power cylinder tie rod screw an equal amount on both sides, Fig. 4.
