Home
>>
Mitsubishi
>>
1995
>>
Diamante Sedan V6-2972cc 3.0L DOHC 24 Valve
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>
Computers and Control Systems
>>
System Diagram
>>
Without Traction Control (TCL)
>>
Part 1 of 8
Part 1 of 8

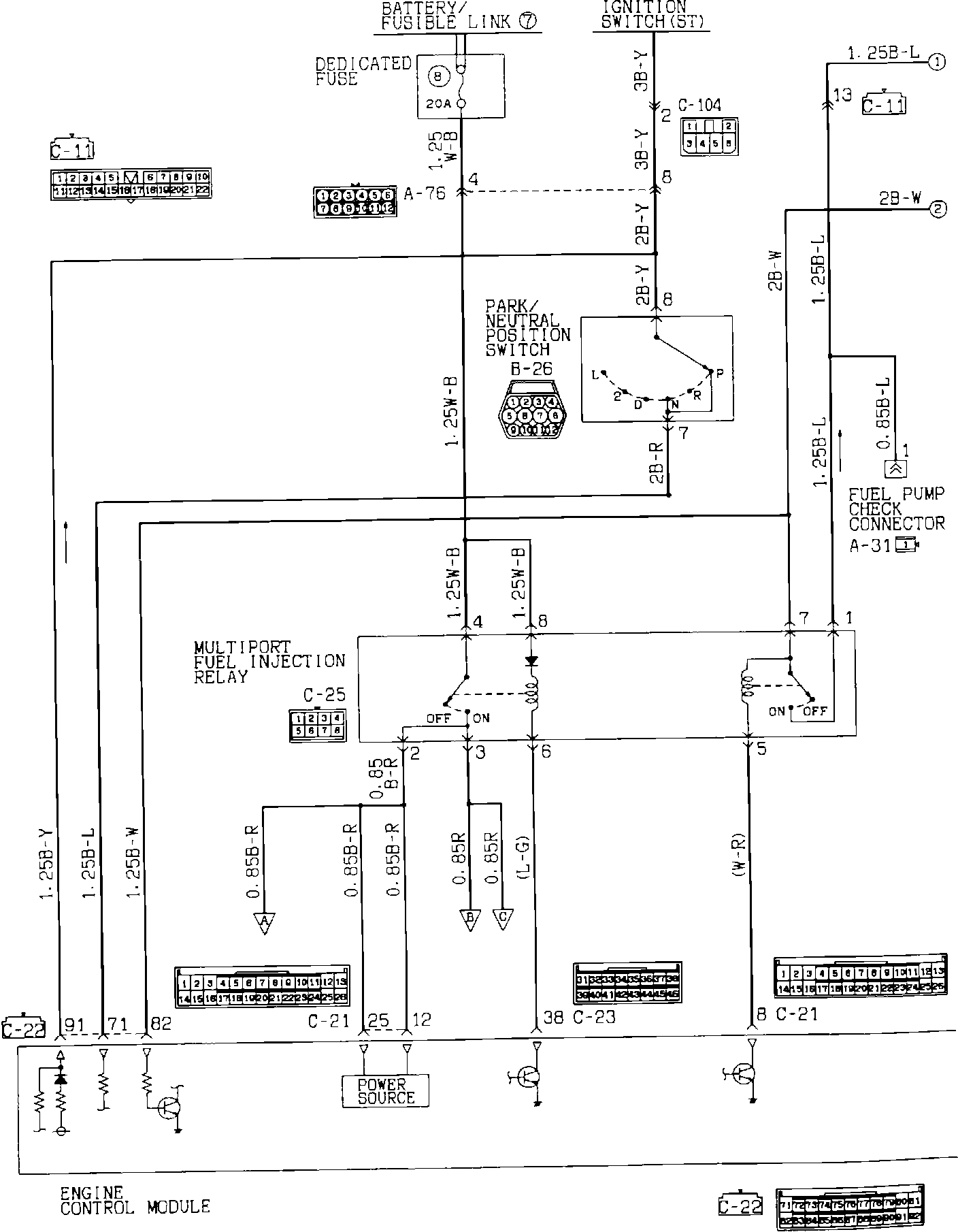

Engine Control Module Wiring Diagram (1 Of 4):
