Home >> Mitsubishi >> 1995 >> Diamante Sedan V6-2972cc 3.0L DOHC 24 Valve >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Powertrain Management >> Computers and Control Systems >> System Diagram >> With Traction Control (TCL) >> Part 1 of 9

Part 1 of 9

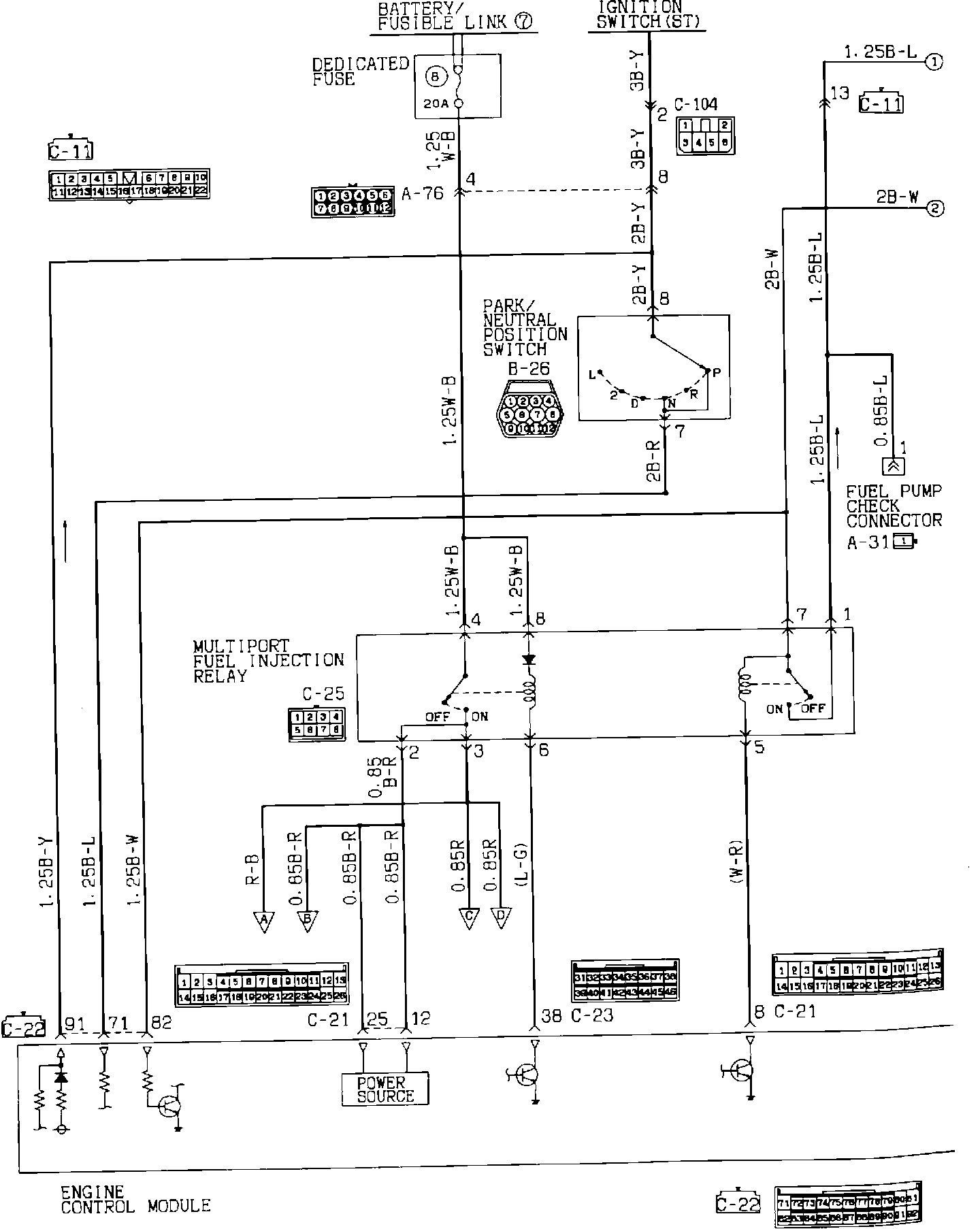

Engine Control Module Wiring Diagram (1 Of 4):
