3000GT Convertible V6-2972cc 3.0L DOHC
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Fuel Delivery and Air Induction
>>
Variable Induction System
>>

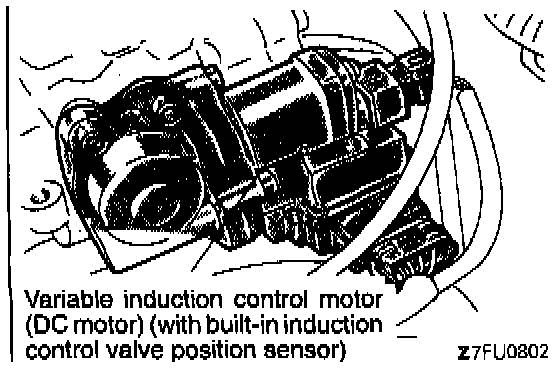

Variable Induction Position Sensor
>>
Testing and Inspection
>>
Federal
Federal

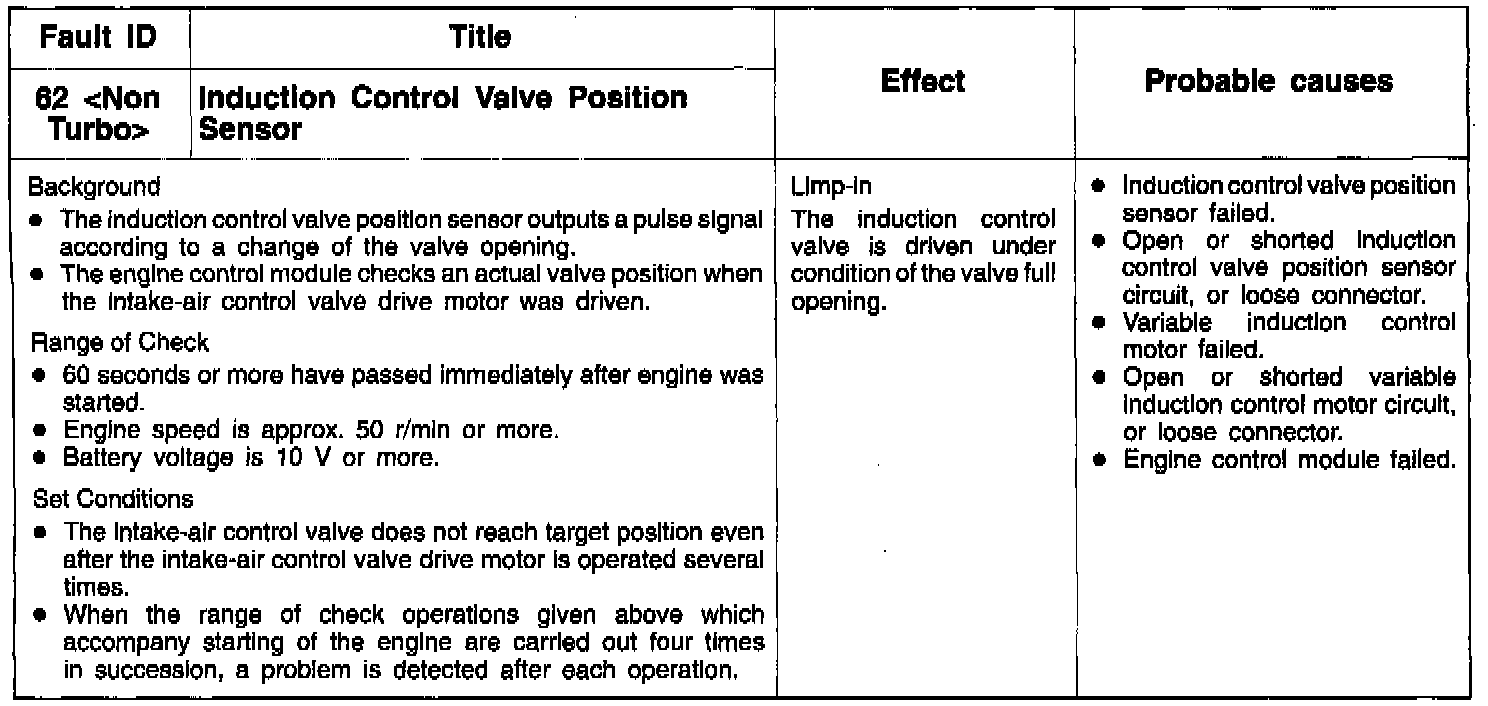

TROUBLESHOOTING PROCEDURES

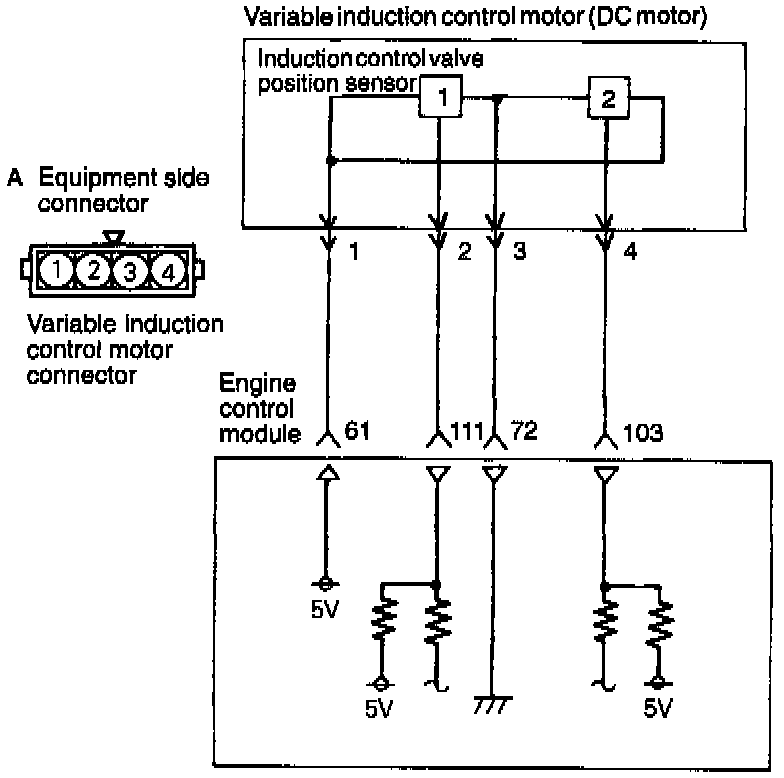

CIRCUIT DIAGRAM
INSPECTION USING SCAN TOOL

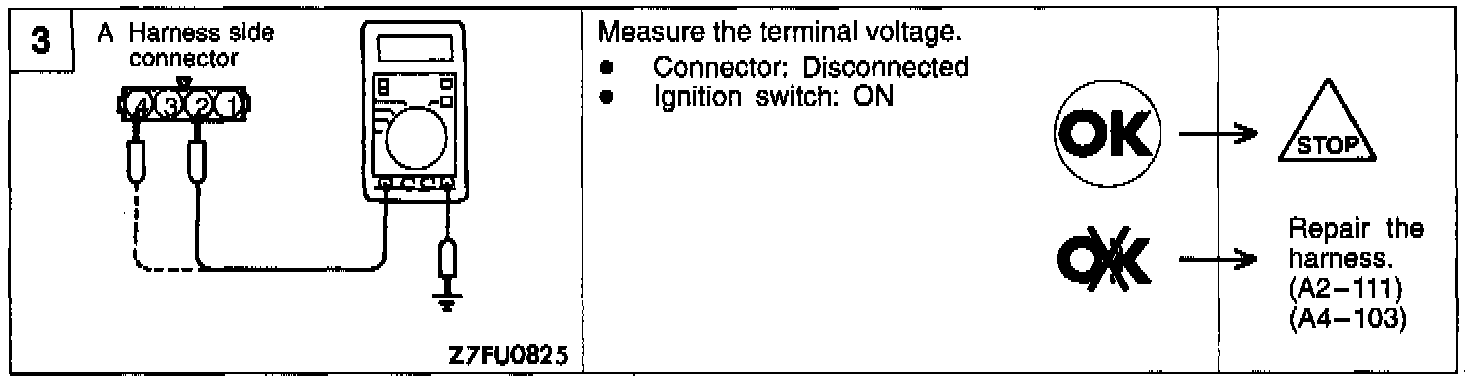

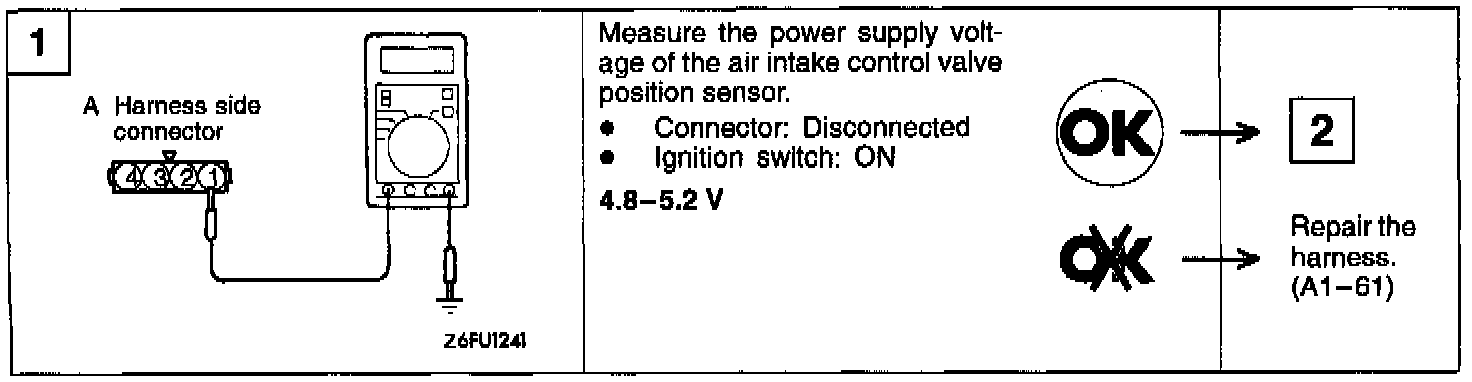

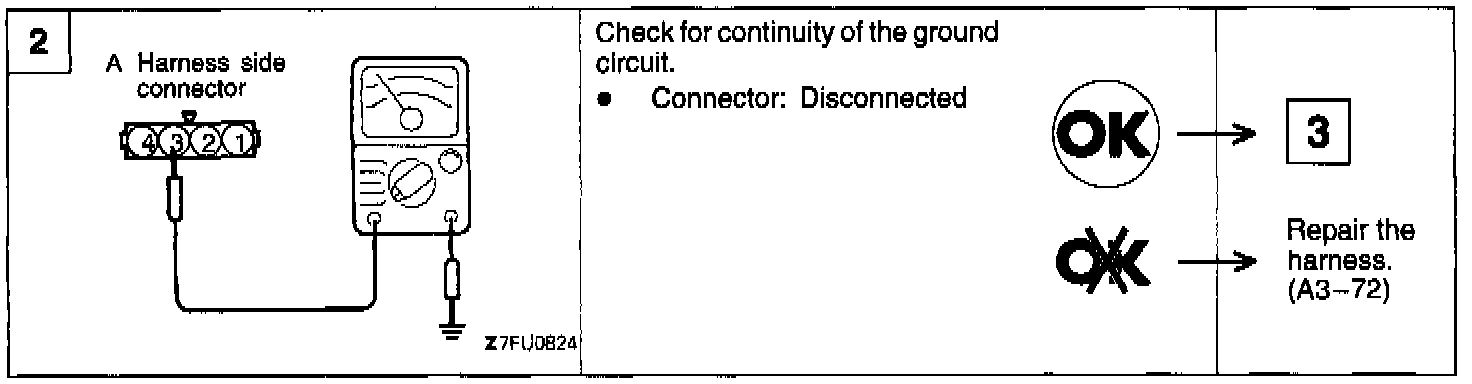

HARNESS INSPECTION PROCEDURE
