3000GT Convertible V6-2972cc 3.0L DOHC
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Vehicle Speed Sensor
>>
Diagrams
>>
Electrical Diagrams
>>
California Emissions
California Emissions

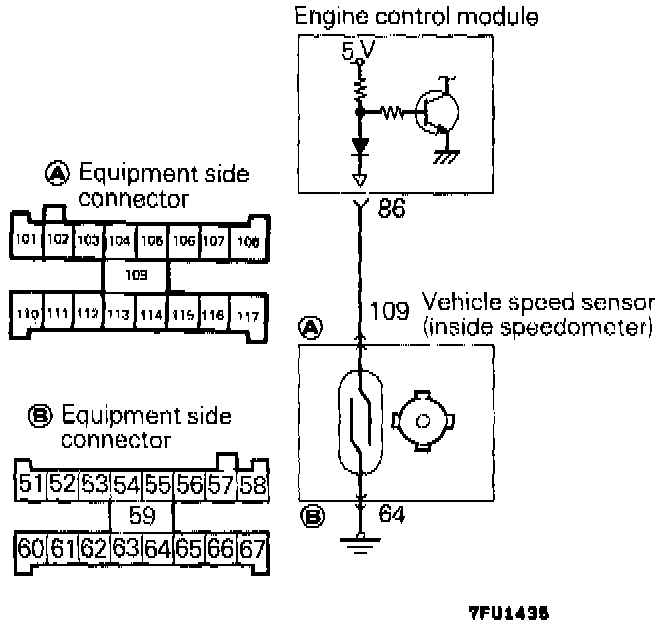

Vehicle Speed Sensor Circuit:
