Manifold Differential Pressure (MDP) Sensor
Manifold Differential Pressure (MDP) Sensor

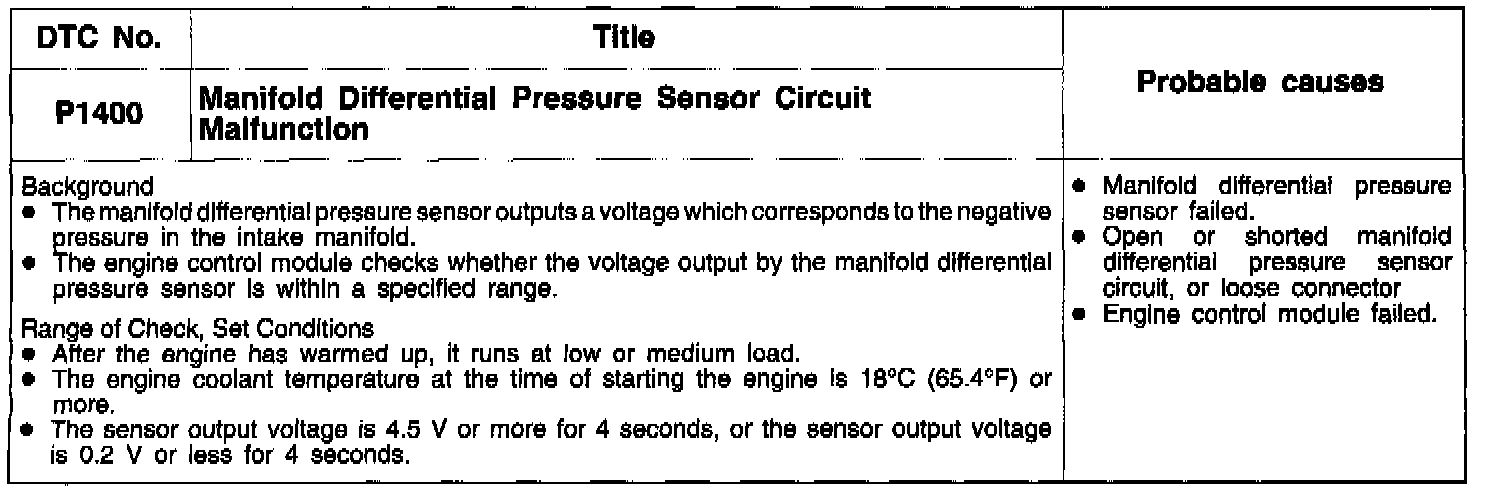

DIAGNOSTIC DETECTION LOGIC

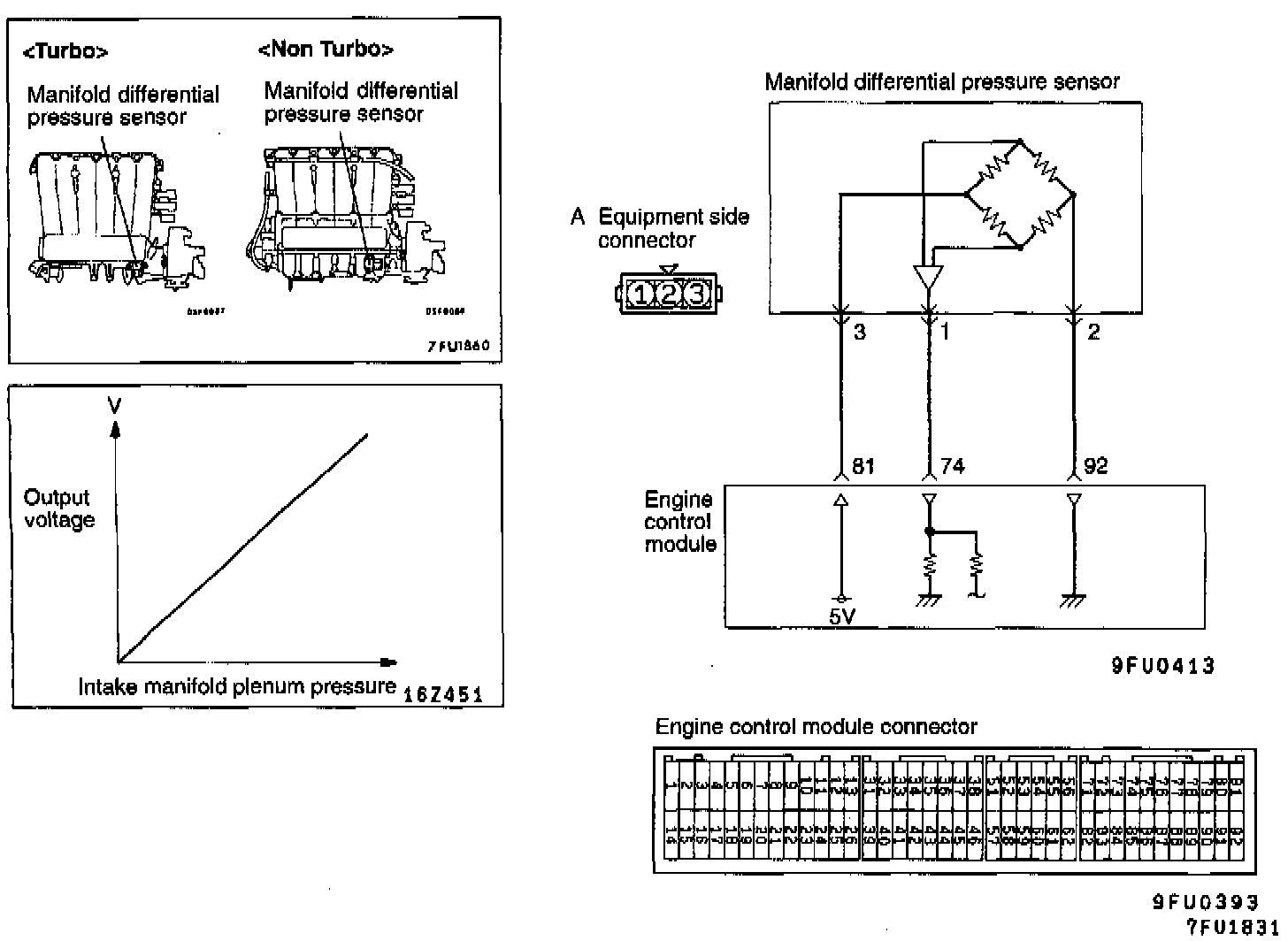

CIRCUIT DIAGRAM

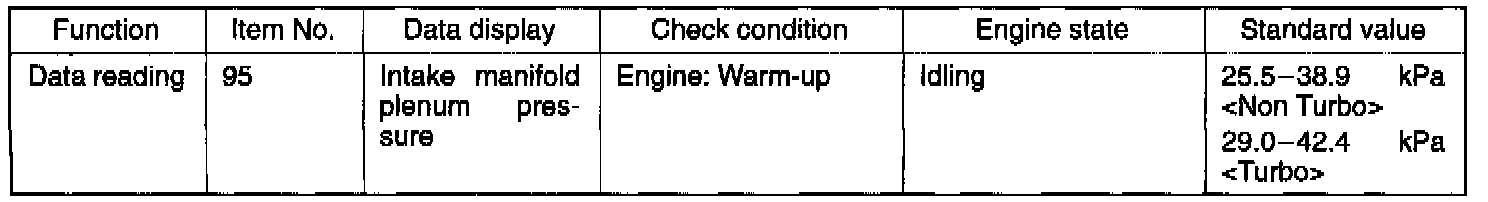

INSPECTION USING SCAN TOOL

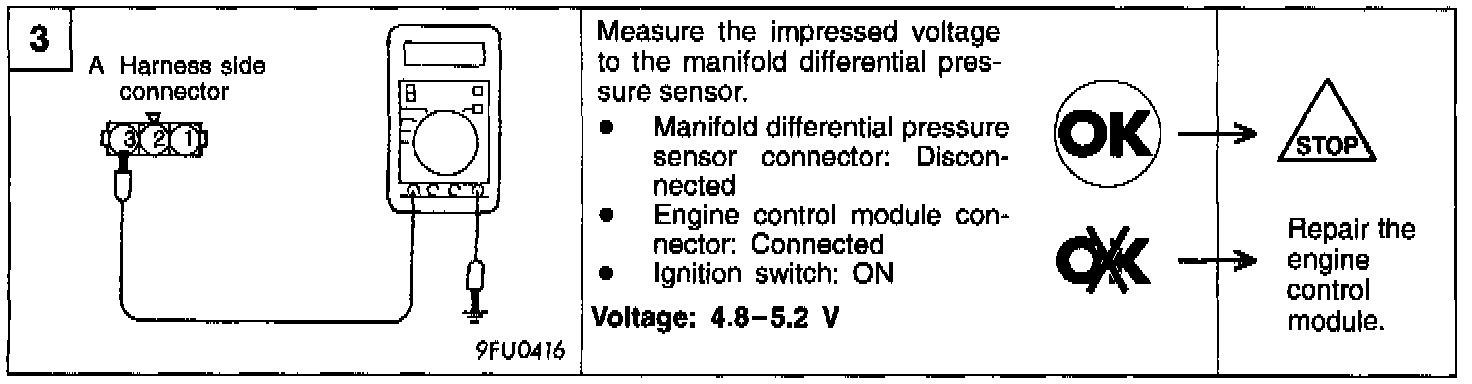

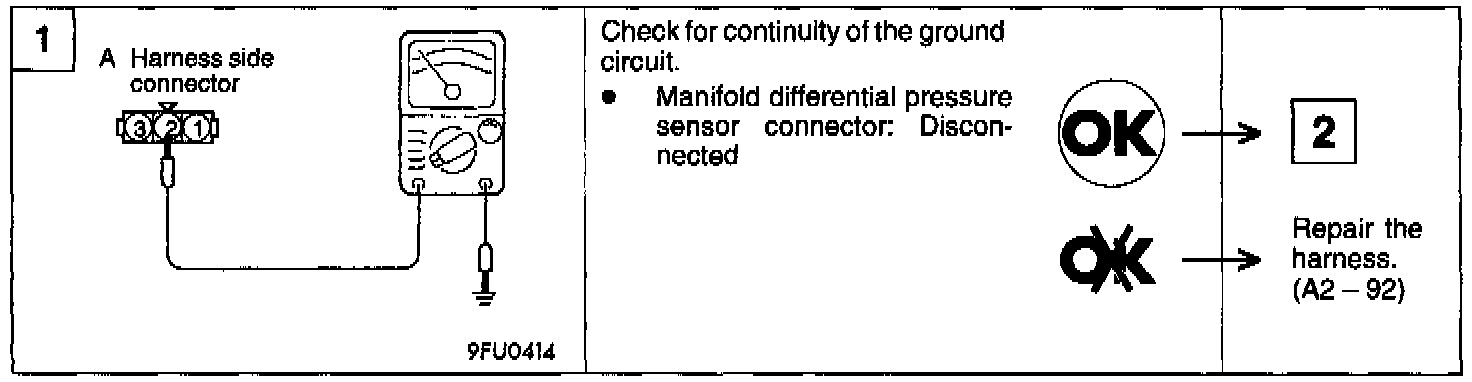

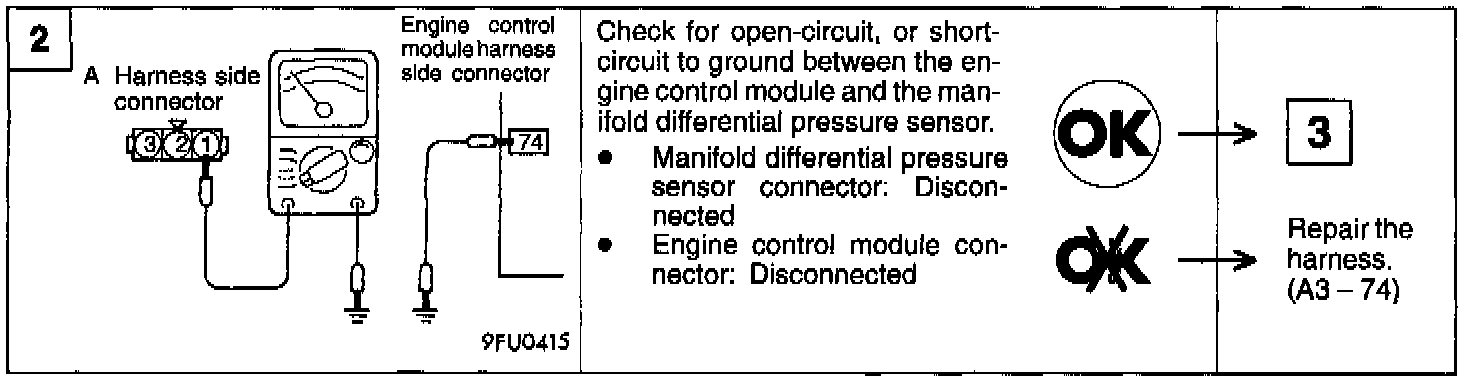

HARNESS INSPECTION PROCEDURE
