Mitsubishi
>>
1995
>>
3000GT Convertible V6-2972cc 3.0L DOHC
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Testing and Inspection
>>
Component Tests and General Diagnostics
>>
Engine and Transaxle Total Control Signal (With A/T)
>>
Federal
Federal

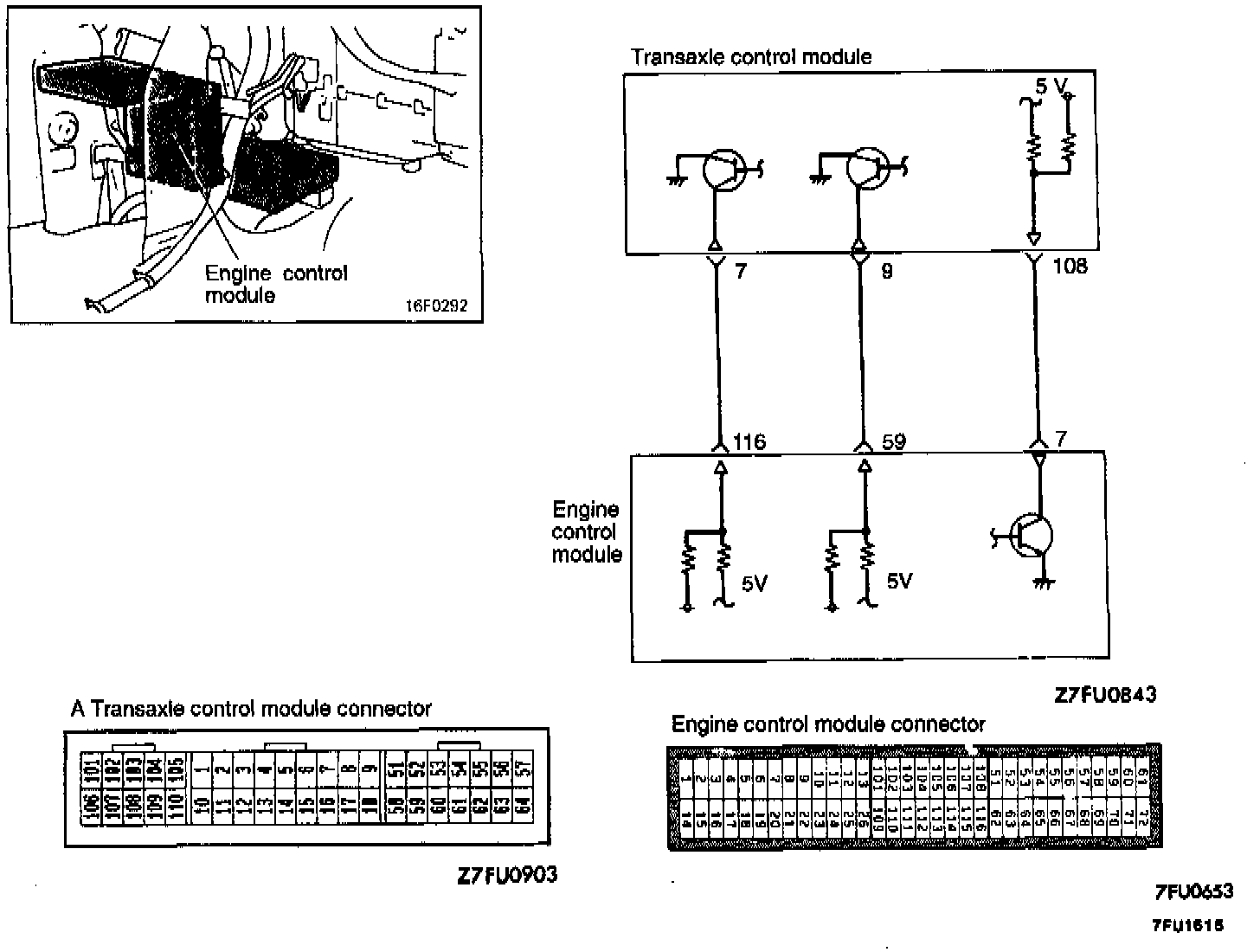

CIRCUIT DIAGRAM

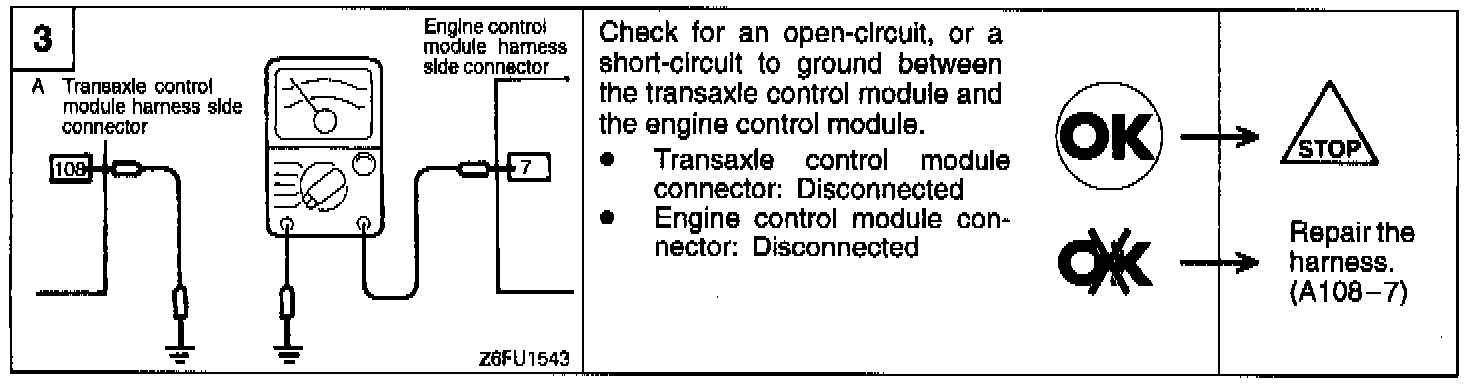

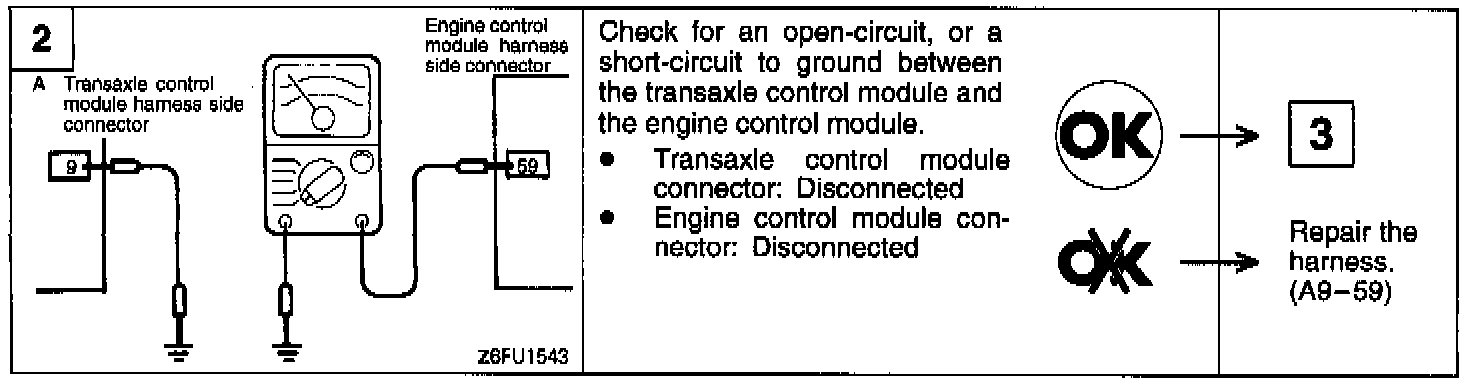

HARNESS INSPECTION PROCEDURE
