3000GT Convertible V6-2972cc 3.0L DOHC
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Testing and Inspection
>>
Component Tests and General Diagnostics
>>
Active Exhaust Control Unit
>>
California
California

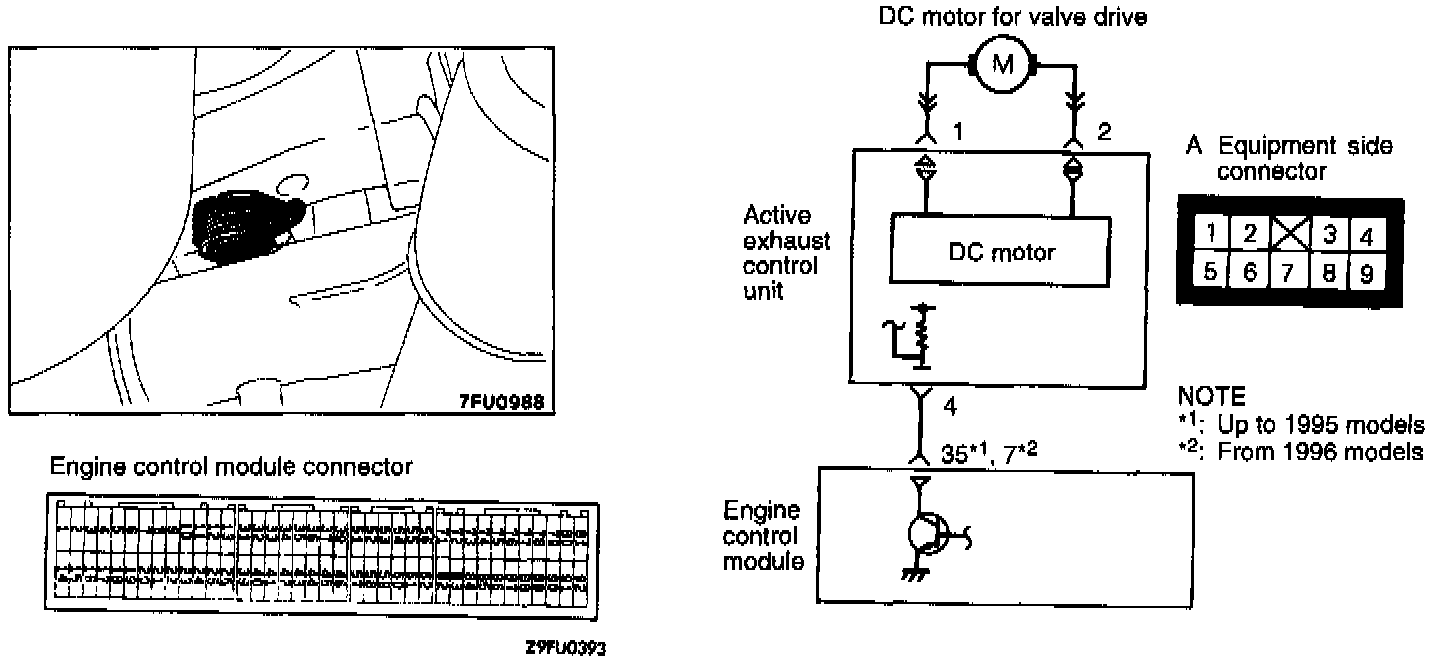

CIRCUIT DIAGRAM

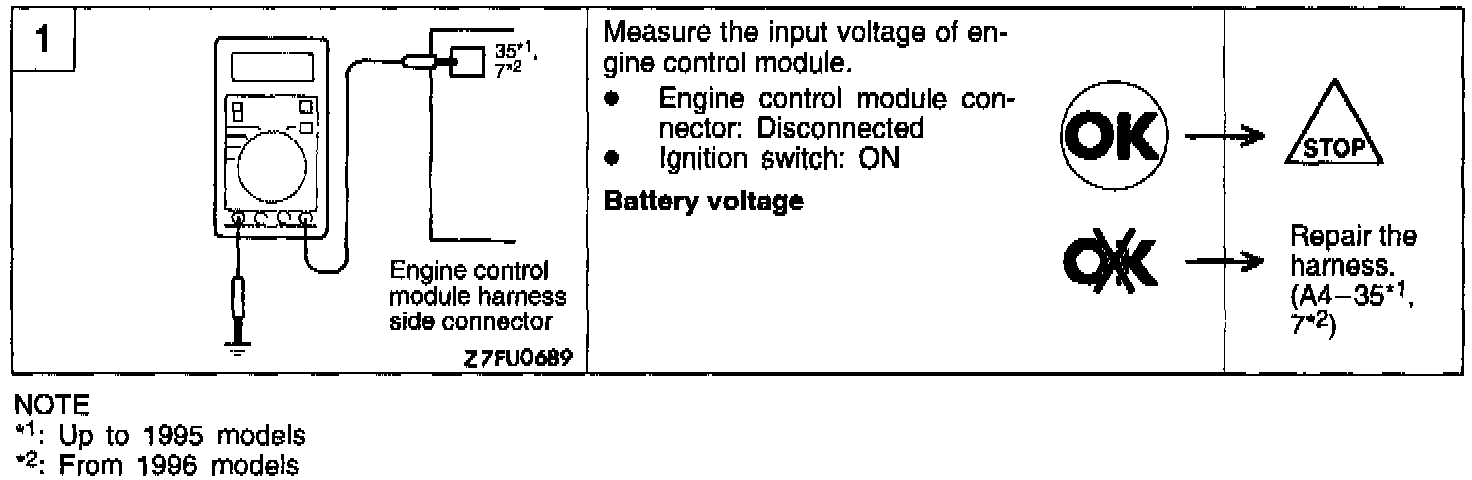

HARNESS INSPECTION PROCEDURE
