Crankshaft Position Sensor
>>
Diagrams
>>
Electrical Diagrams
>>
California Emissions
California Emissions

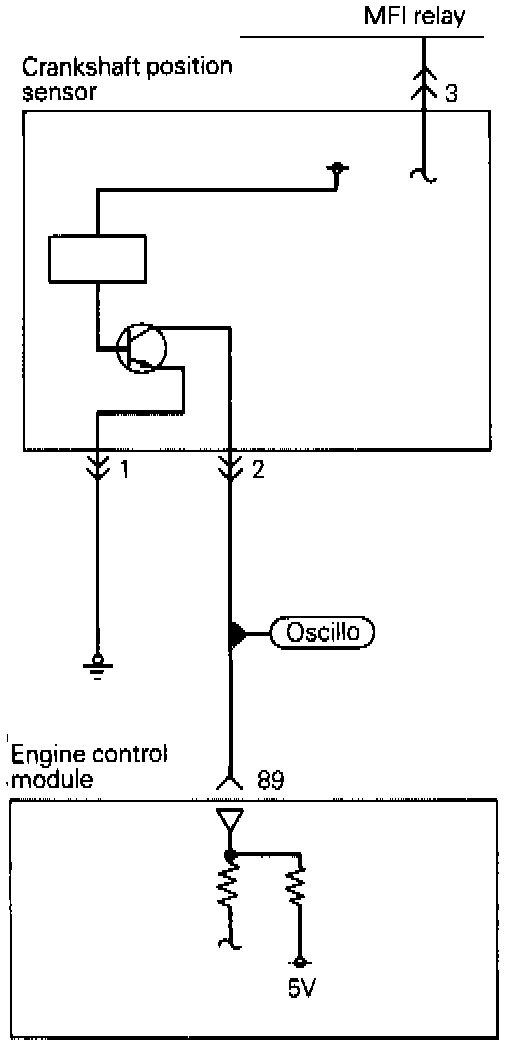

Crankshaft Position Sensor Circuit:
