Home >> Mitsubishi >> 1995 >> 3000GT Convertible AWD V6-2972cc 3.0L DOHC Turbo >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Heating and Air Conditioning >> Compressor HVAC >> Manual Controls

Manual Controls

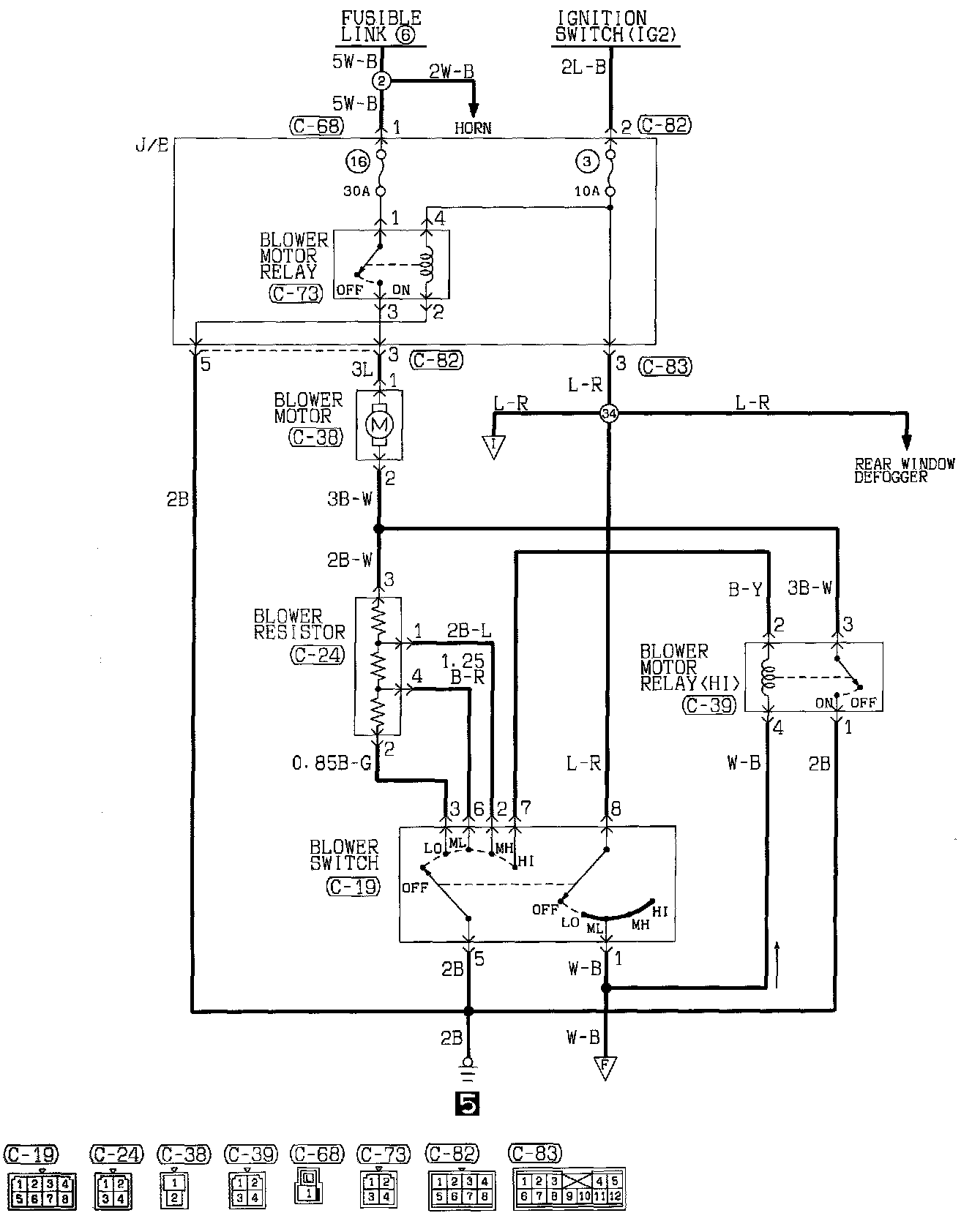

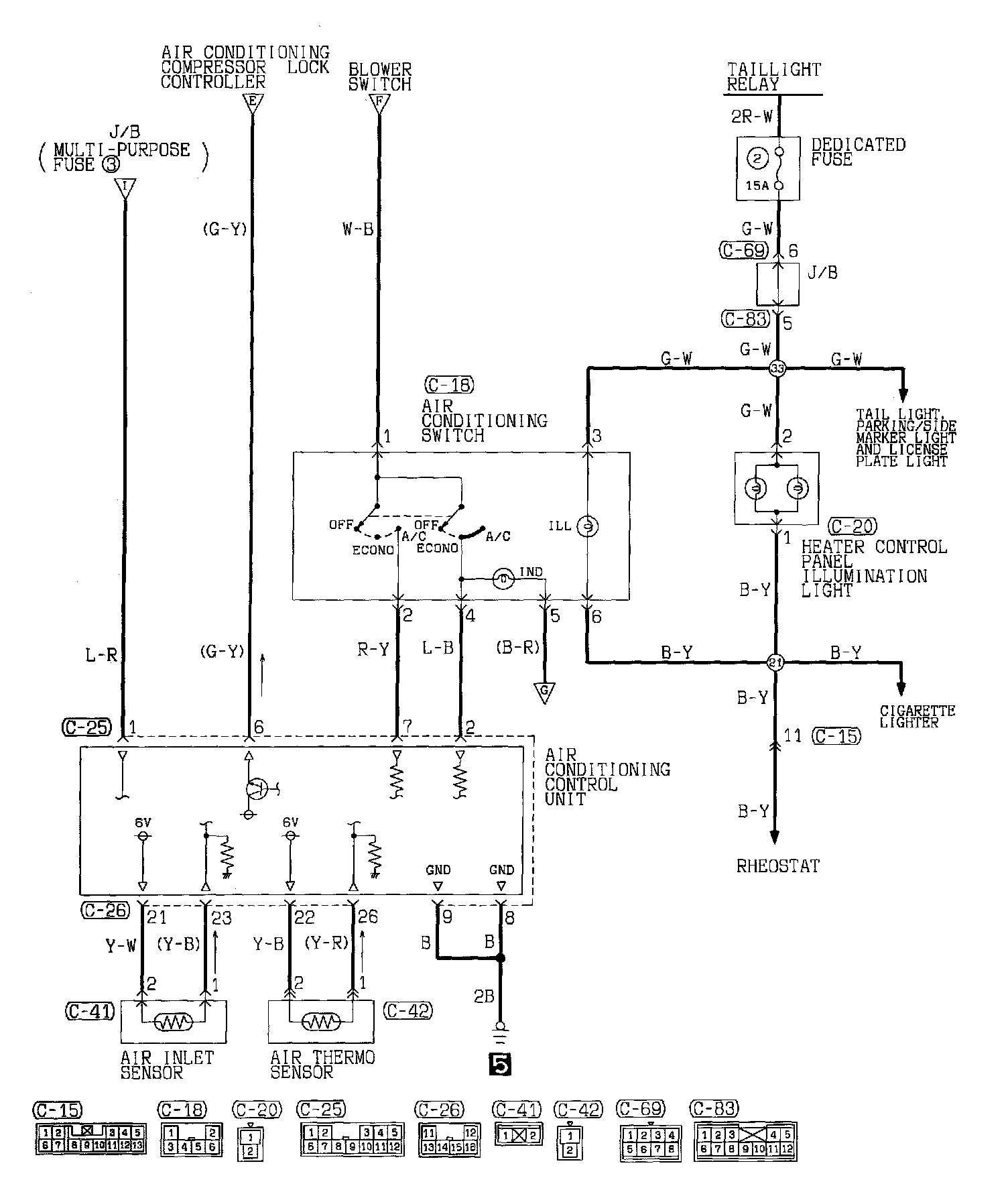

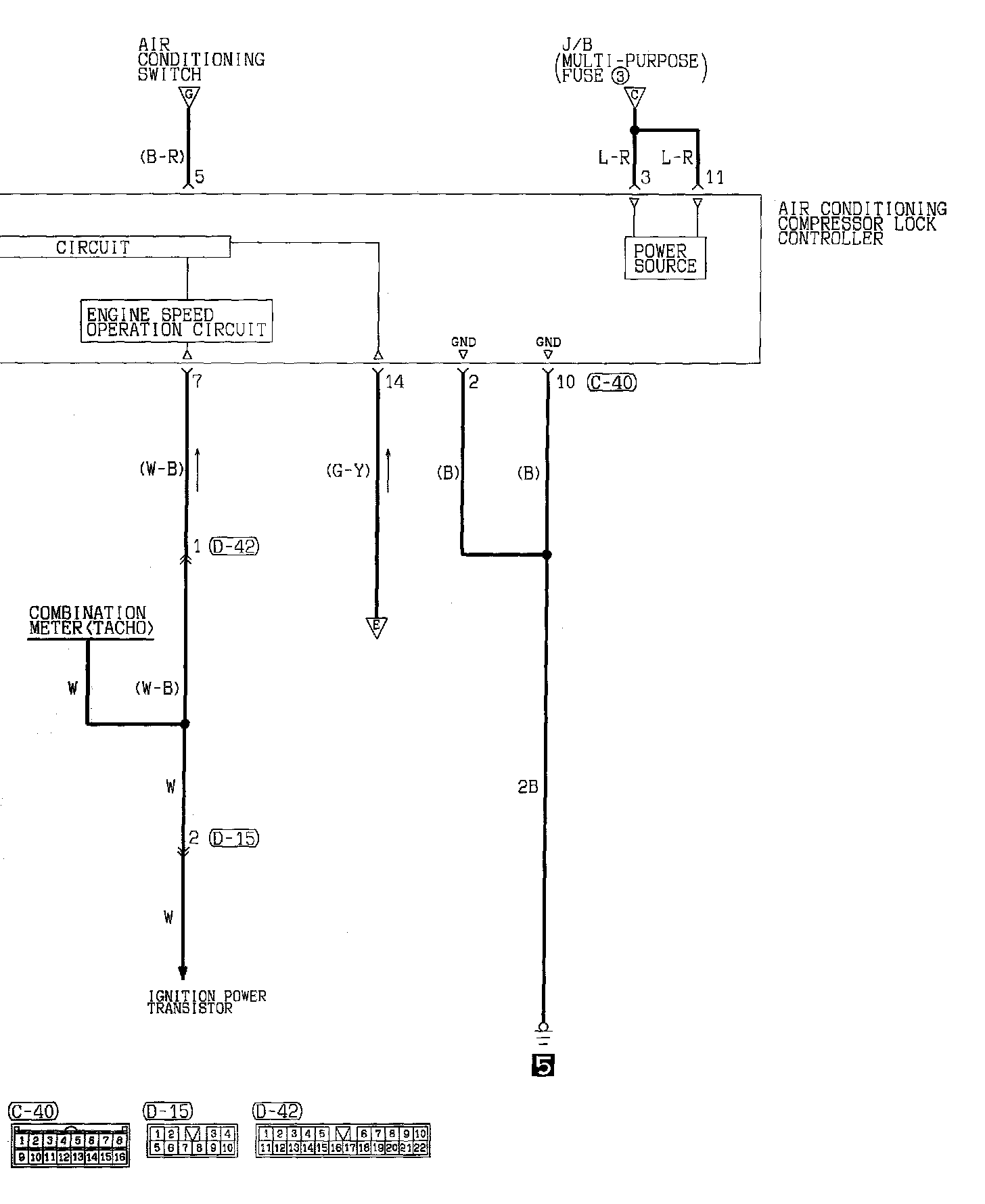

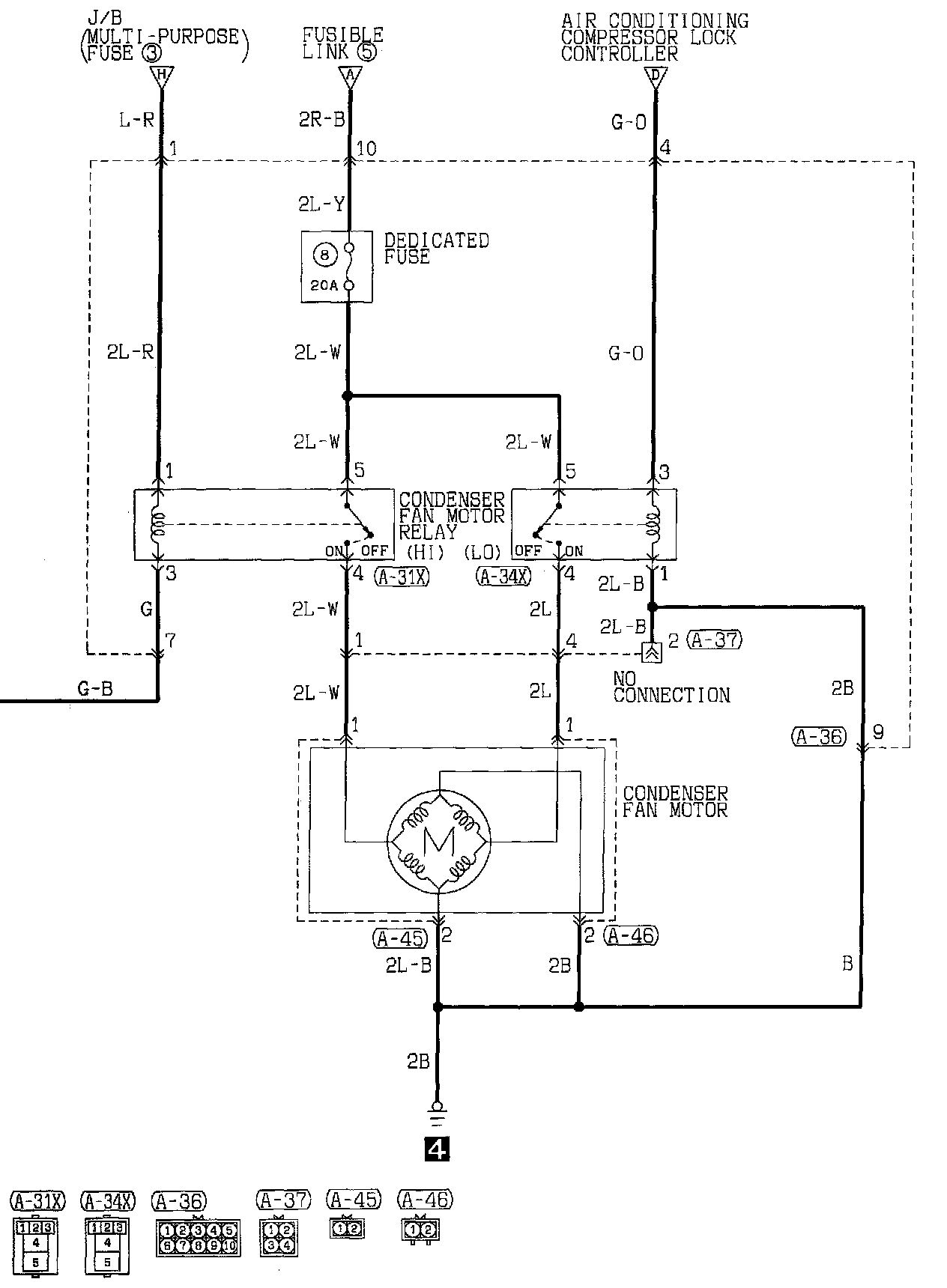

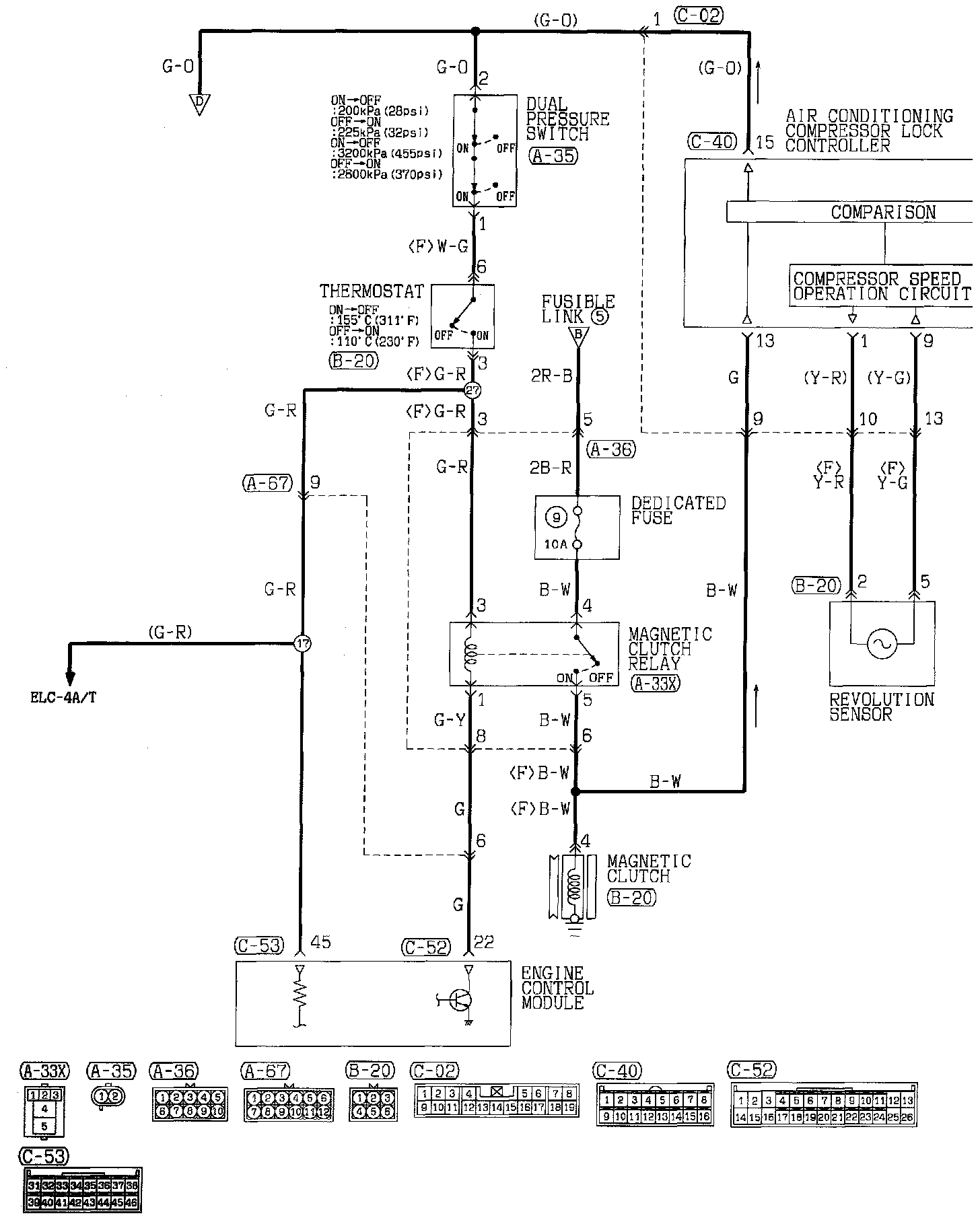

MANUAL AIR CONDITIONING CIRCUIT (1994,1995 MODELS)
