Mirage L4-1795cc 1.8L SOHC
>>
Repair and Diagnosis
>>
Wiper and Washer Systems
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

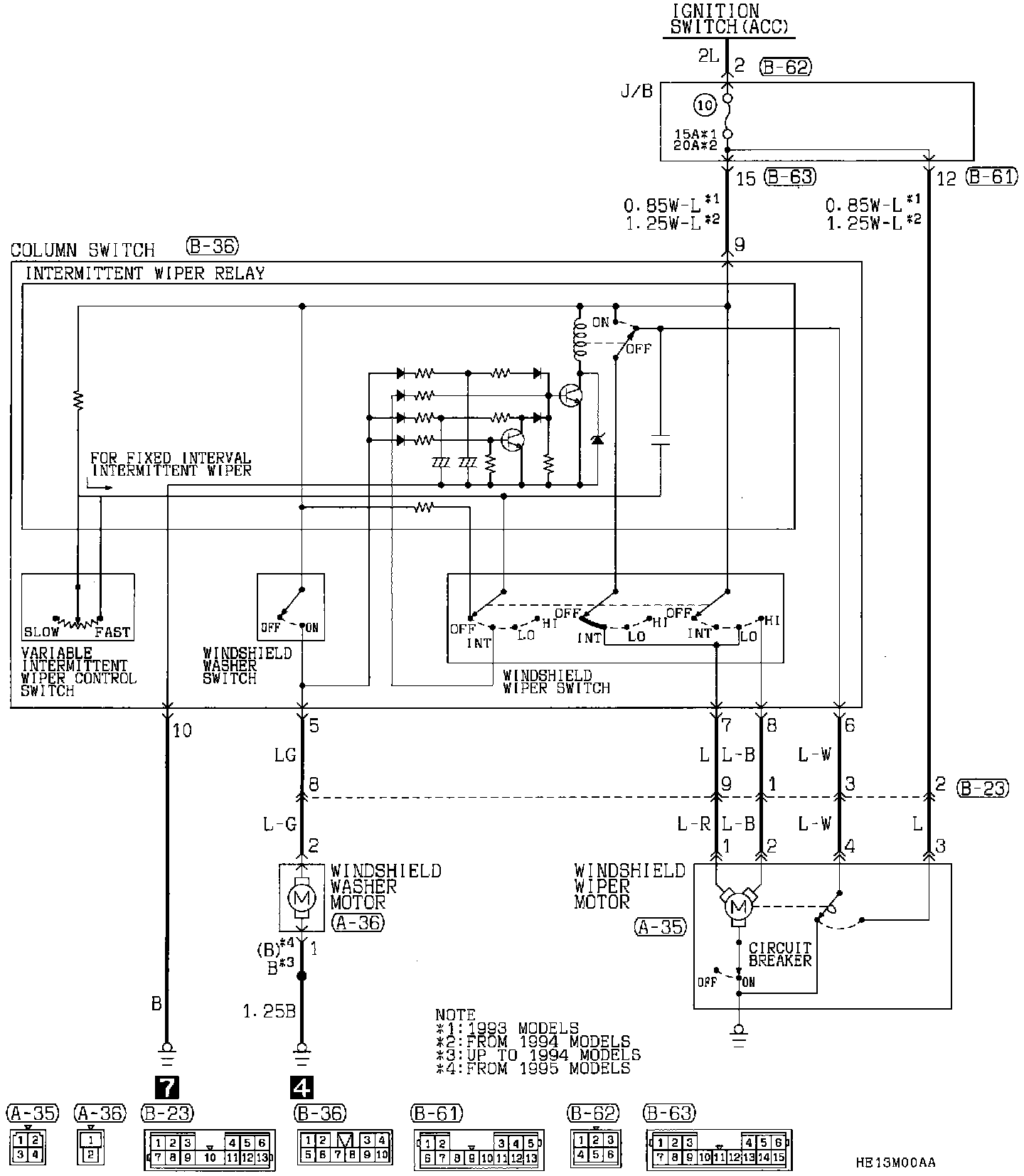

Windshield Wiper And Washer (With Intermittent):

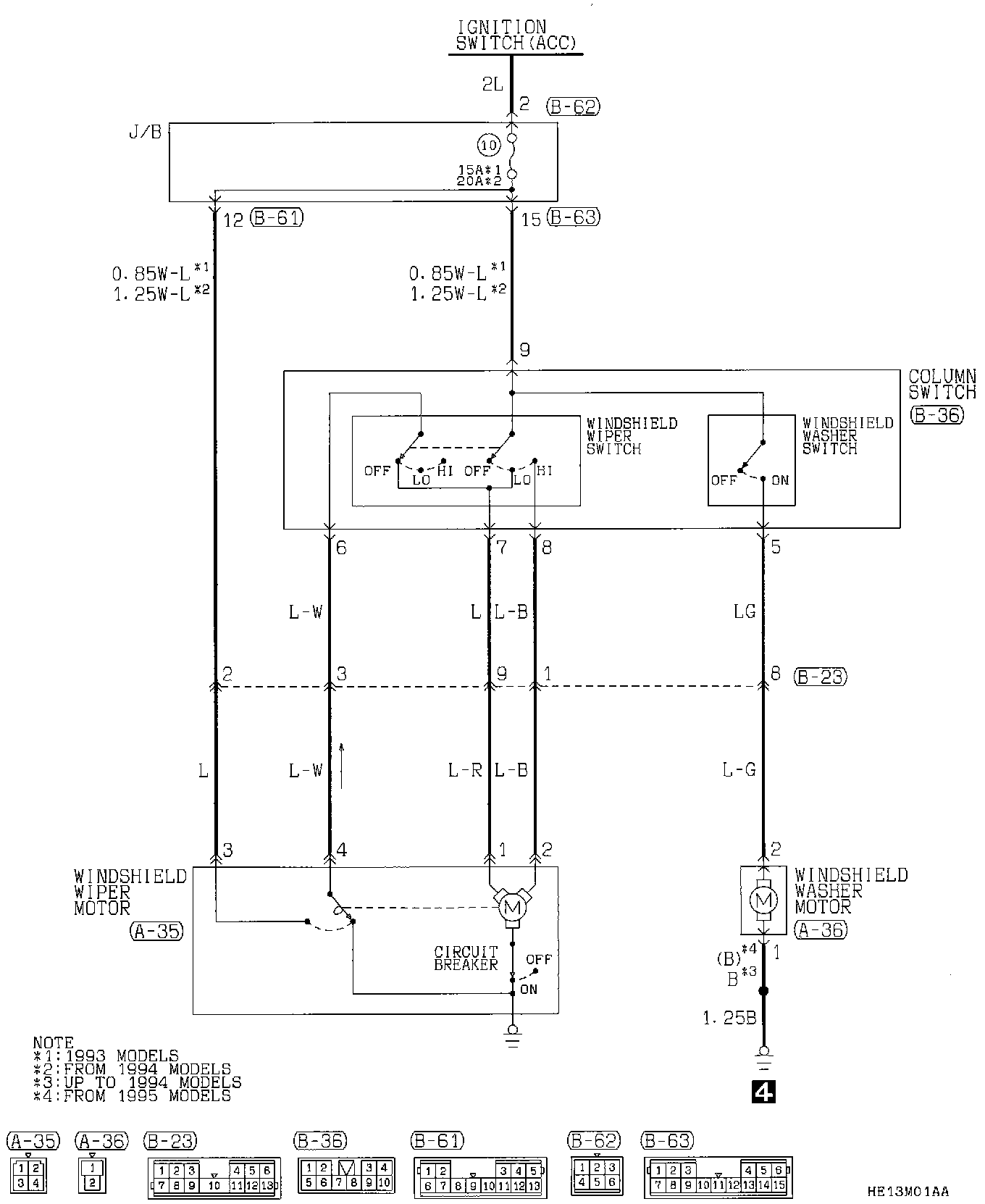

Windshield Wiper And Washer (Without Intermittent):
