Headlamp Relay: Testing and Inspection

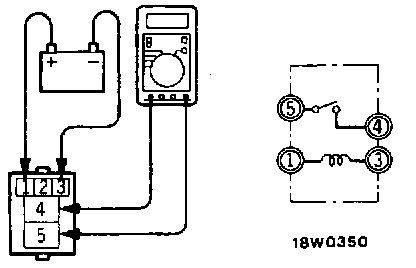

Headlight Relay Continuity Check:

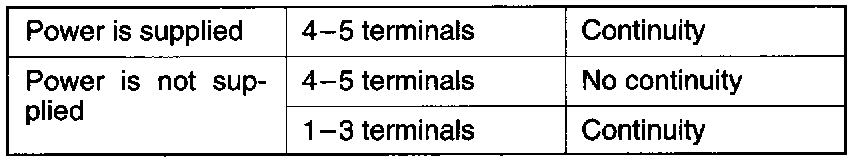

Headlight Relay Continuity Check Table:

1. Take out the headlight relay from the engine compartment relay box.
2. Connect battery to terminal 1 and check continuity between terminals with terminal 3 grounded.
