Air Cleaner Housing: Service and Repair

PRE-REMOVAL AND POST-INSTALLATION OPERATION
- Battery, Battery Seat and Tray Removal and Installation
- Splash Shield (R.H.) Removal and Installation

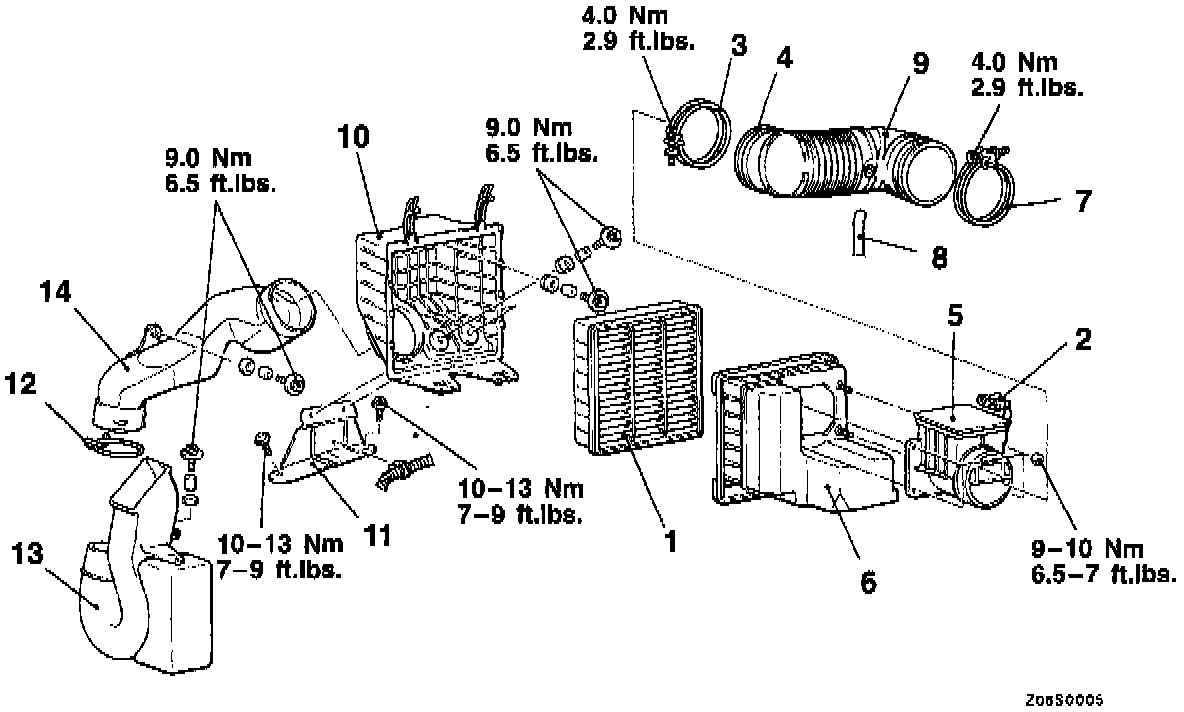

1. Air cleaner element

VOLUME AIR FLOW SENSOR REMOVAL STEPS
2. Volume air flow sensor connector
3. Hose clamp
4. Air intake hose connection
5. Volume air flow sensor

AIR CLEANER COVER REMOVAL STEPS
1. Air cleaner element
5. Volume air flow sensor
6. Air cleaner cover

AIR INTAKE HOSE REMOVAL STEPS
3. Hose clamp
7. Hose clamp
8. PCV hose
9. Air intake hose

AIR CLEANER BODY REMOVAL STEPS
1. Air cleaner element
6. Air cleaner cover
10. Air cleaner body
11. Air cleaner bracket

AIR DUCT A AND B REMOVAL STEPS
1. Air cleaner element
6. Air cleaner cover
10. Air cleaner body
12. Hose clamp
13. Air duct A
14. Air duct B

INSTALLATION SERVICE POINT




Air Intake Hose And Hose Clamps Installation
1. Install the air intake hose so that the "UP" mark is towards the top.
2. Install the hose clamp on the throttle body side so that the thread section of the hose clamp is horizontal.
3. Install the hose clamp on the air cleaner side so that the thread section of the hose clamp is vertical.
