Throttle Cable/Linkage: Service and Repair

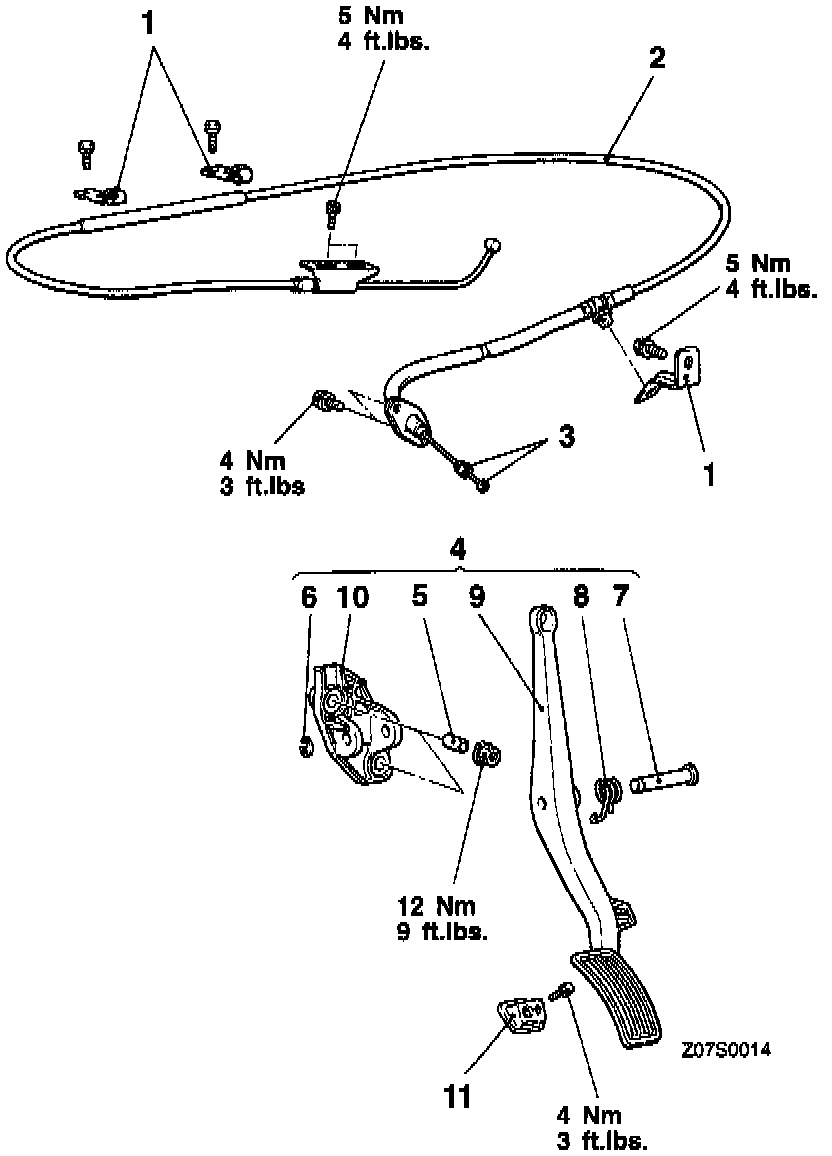

ACCELERATOR CABLE REMOVAL STEPS
1. Accelerator cable bracket and clamp
2. Accelerator cable

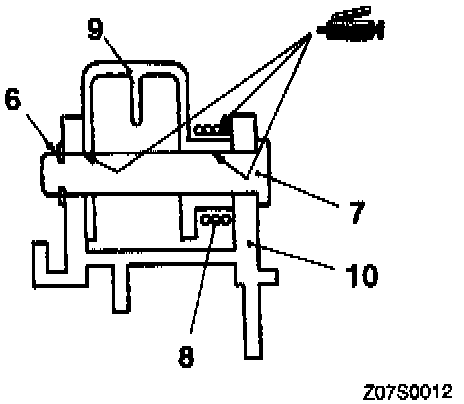

ACCELERATOR PEDAL REMOVAL STEPS
3. Bushing and accelerator cable connection
4. Accelerator pedal assembly
5. Spacer
6. Snap ring
7. Pin
8. Return spring
9. Accelerator pedal arm
10. Accelerator pedal support
11. Accelerator pedal stopper

POST-INSTALLATION OPERATION

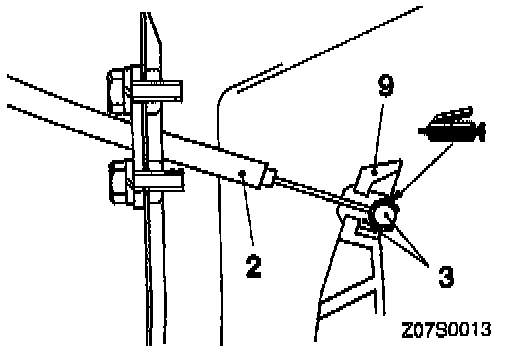

1. Install the accelerator cable so that the marking section is aligned with the clamp shown by the arrow.
2. Adjusting the Accelerator Cable.
