General Information

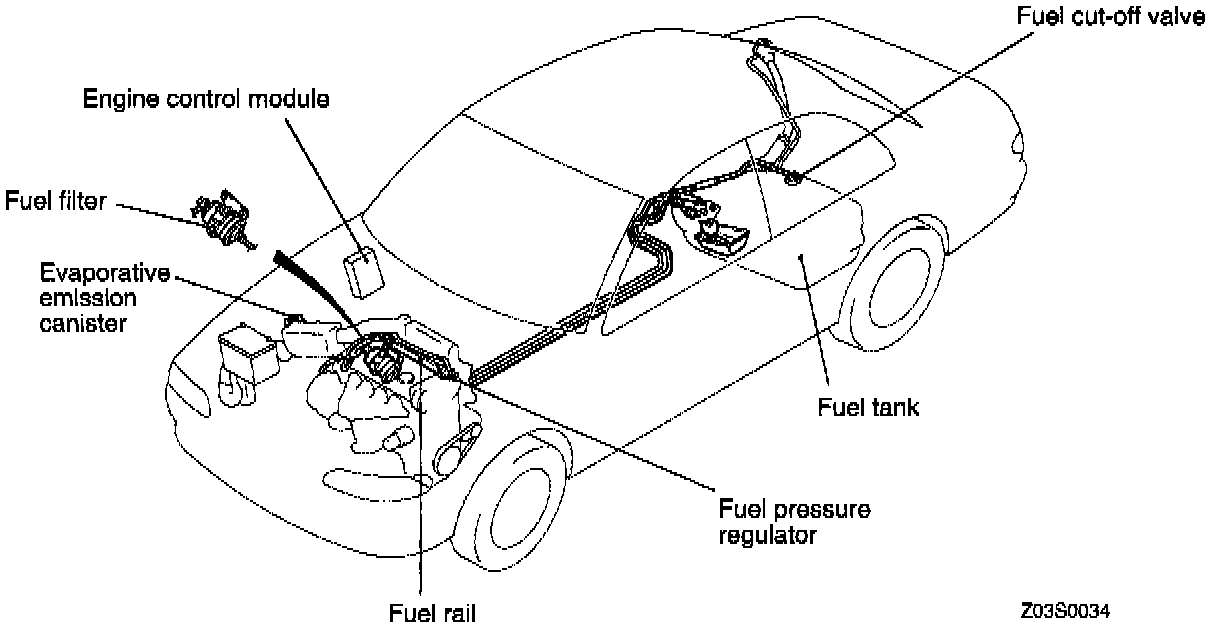

The fuel system consists of an electromagnetic fuel injector, fuel rail, pressure regulator, an electric fuel pump to supply high pressure fuel, a fuel filter, fuel tank, etc.

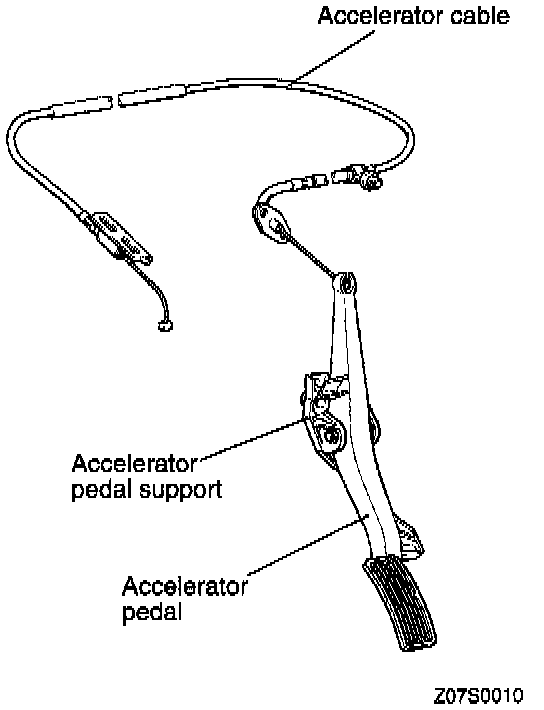

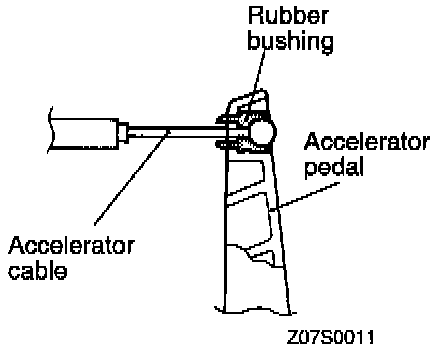

The accelerator control system uses a cable and a suspended pedal. A special resin moulding is used for the pedal. The ends of the cable are provided with rubber bushings to absorb the vibration which may be transmitted from the pedal.
