Evaporative Emission Control Canister: Testing and Inspection

SIMPLE INSPECTION OF CHECK VALVE INSIDE CANISTER

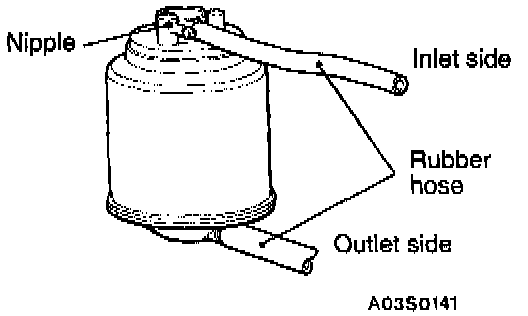

1. Connect clean rubber hoses to the nipples on the inlet side and outlet side.

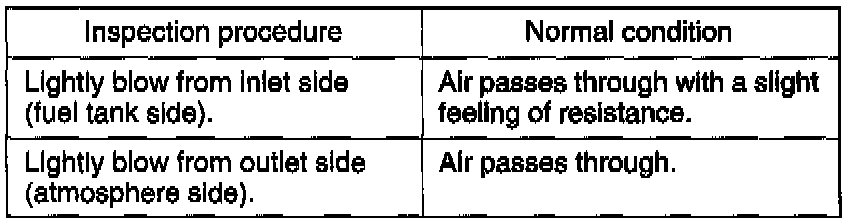

2. Close off the other nipple with your finger and then check the operation of the check valve.
