Combination Meter Disassembly and Assembly

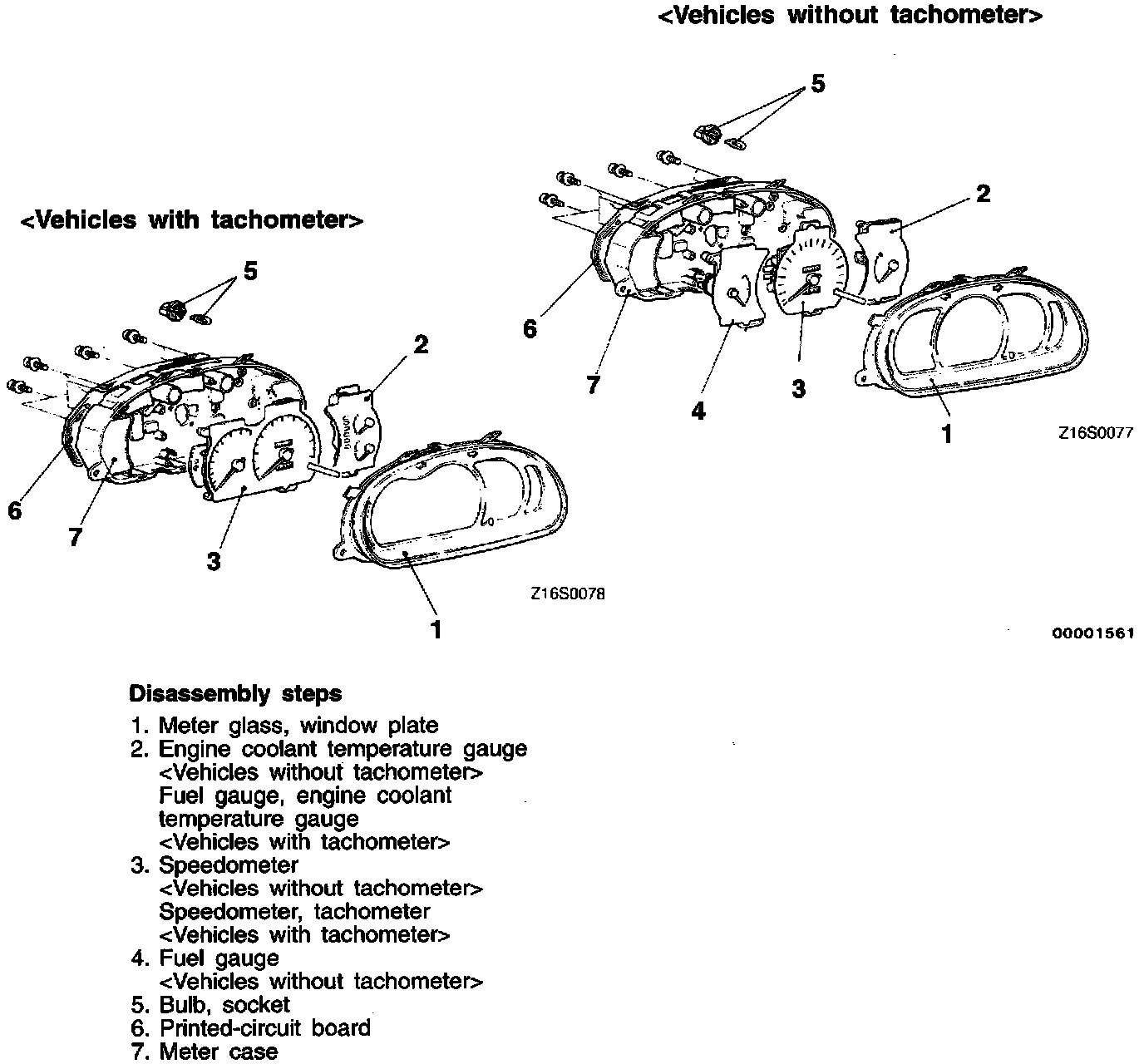

Meter And Gauges - Disassembly And Reassembly:

REMOVE
1. Meter glass, window plate
2. Engine coolant temperature gauge
tachometer>
Fuel gauge, engine coolant temperature gauge
tachometer>
3. Speedometer
tachometer>
Speedometer, tachometer
tachometer>
4. Fuel gauge
tachometer>
5. Bulb, socket
6. Printed-circuit board
7. Meter case

INSTALL
1. Meter case
2. Printed-circuit board
3. Bulb, socket
4. Fuel gauge
Vehicles without tachometer>
5. Speedometer
tachometer>
Speedometer, tachometer
tachometer>
6. Engine coolant temperature gauge
tachometer>
Fuel gauge, engine coolant temperature gauge
tachometer>
7. Meter glass, window plate
