Water Pump: Service and Repair

1. Disconnect battery ground cable.
2. Remove timing belt as outlined under Timing Belt.
3. Remove timing belt rear cover.

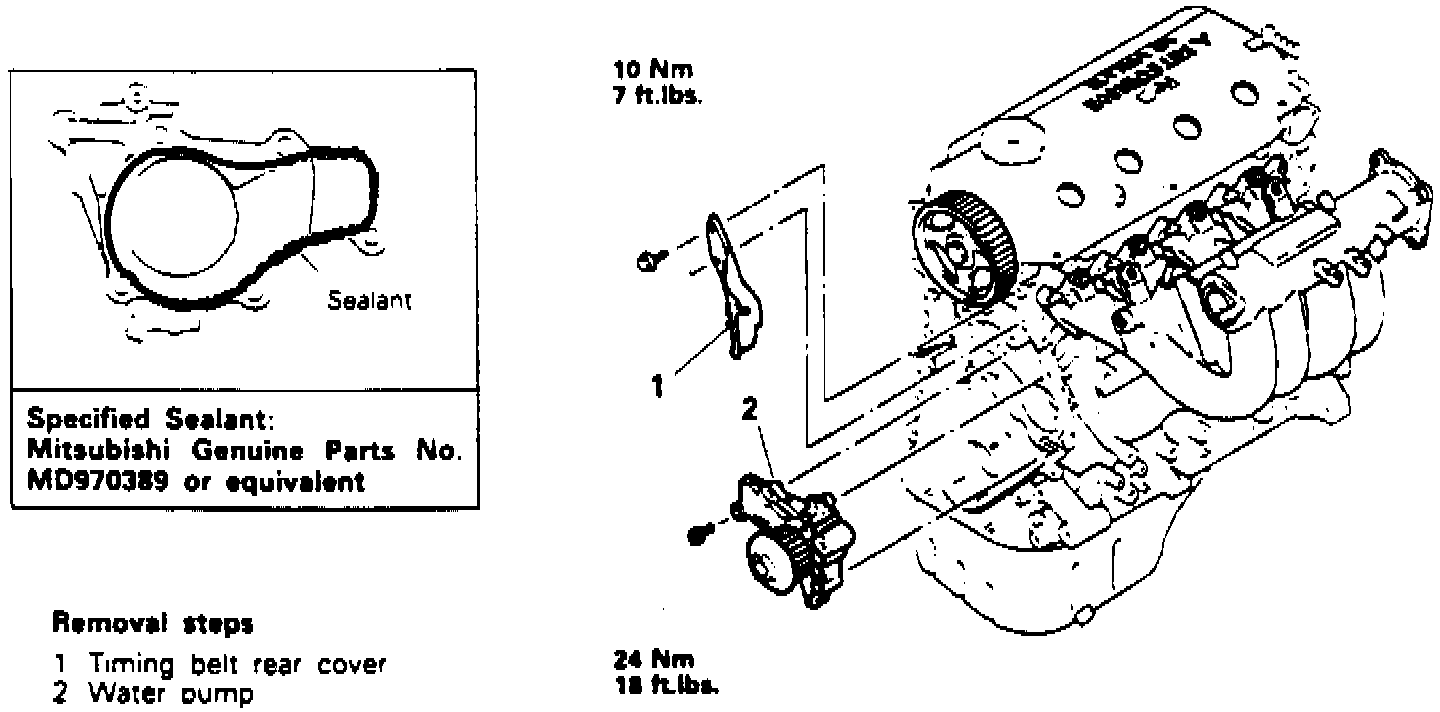

Fig. 32 Water Pump Replacement:

4. Remove water pump mounting bolts, then water pump, Fig. 32.

Fig. 30 Installing Water Pump Bolts:

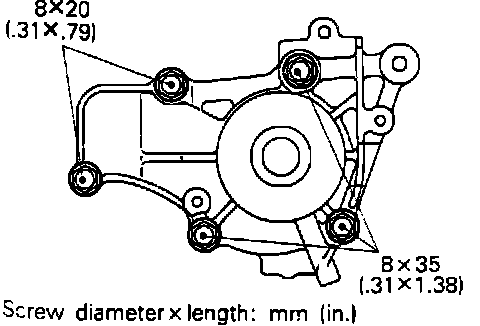

5. Reverse procedure to install, noting bolt length position shown in Fig. 33.
