Installation

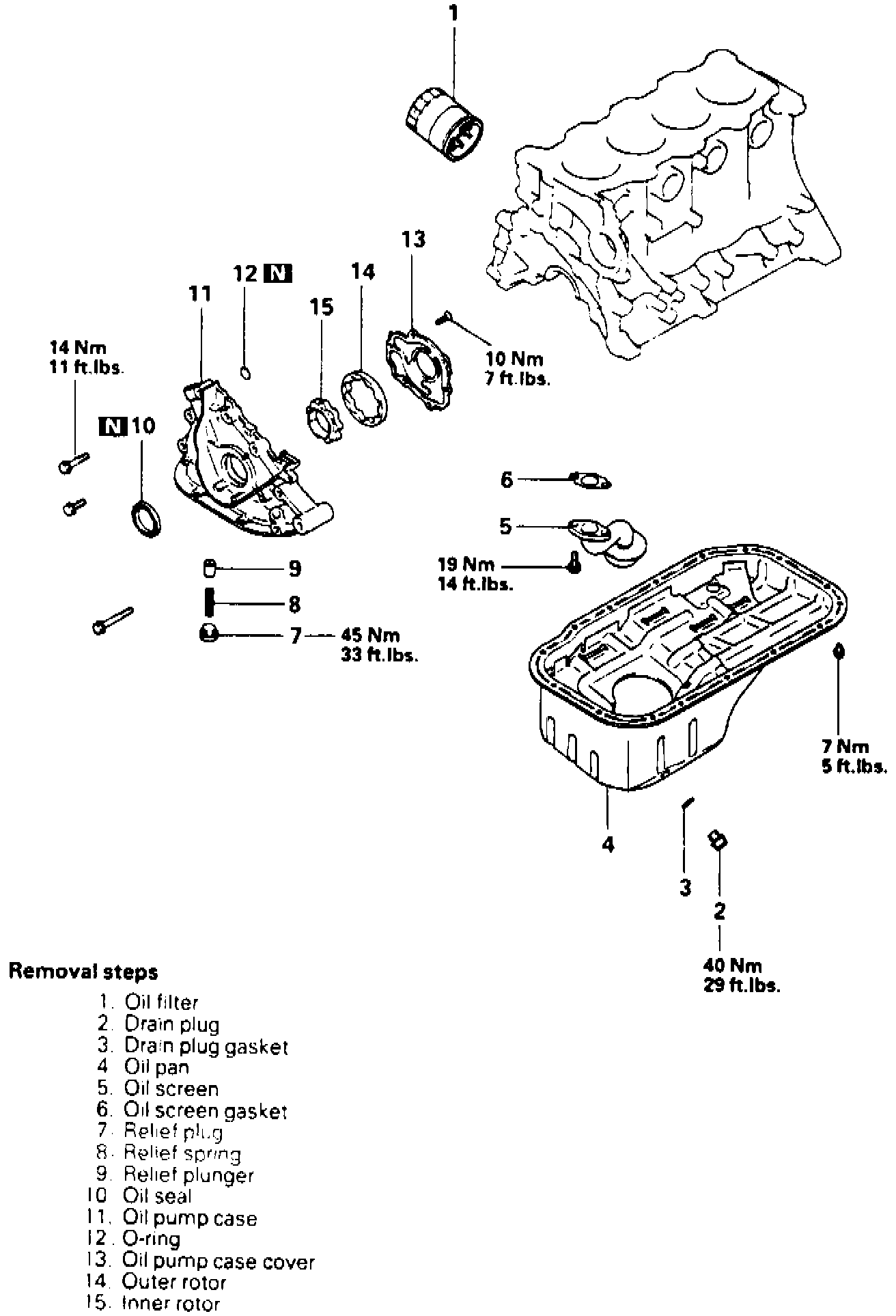

Fig. 25 Exploded View Of Front Case & Oil Pump:

Reverse numbered sequence shown in Fig. 25 to install, noting following:
1. Apply engine oil to oil pump rotors.
2. Install oil pump rotors into pump body, aligning marks made during disassembly.
3. Apply sealant to oil pump case cover.
4. Install seal into oil pump case using seal installer tool, No. MD998717-01, or equivalent.

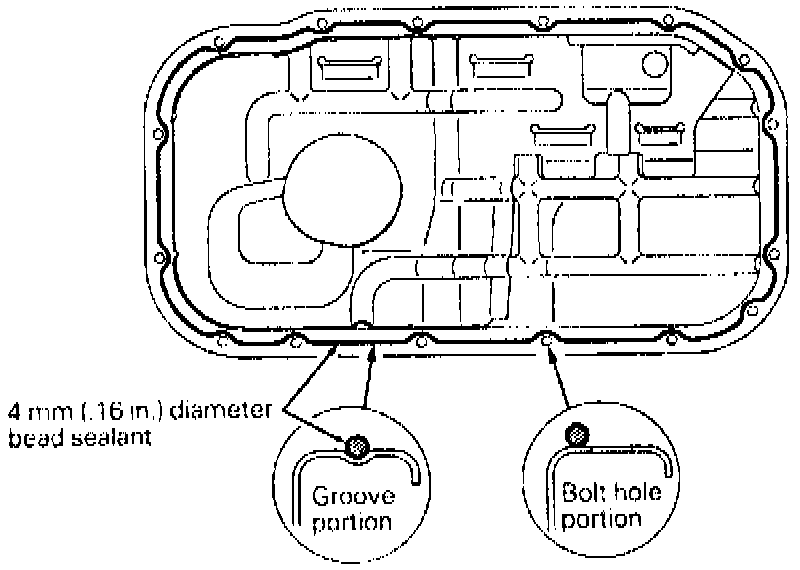

Fig. 29 Oil Pan Sealant Location:

5. Apply a 0.16 inch diameter bead of sealant to oil pan flange as shown, Fig. 29.
