Inspection

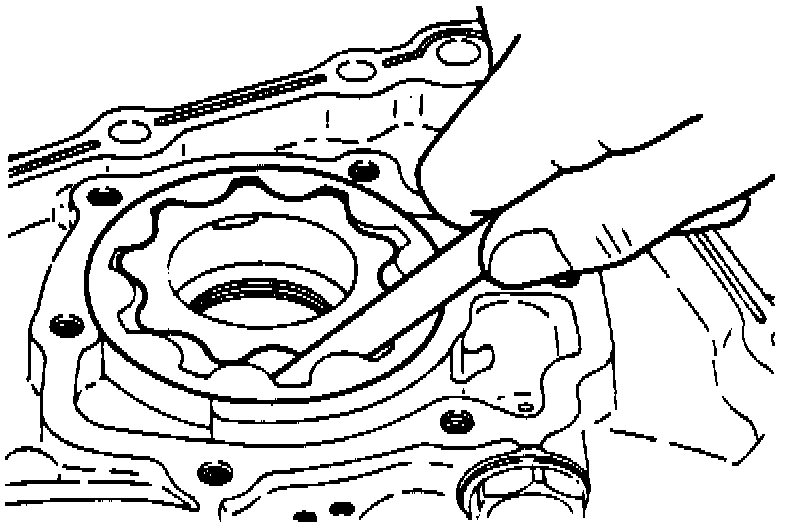

Fig. 26 Rotor Tip Clearance Inspection:

1. Inspect oil pump rotor tip clearance and ensure a 0.0024-0.0071 inch clearance exists, Fig. 26.

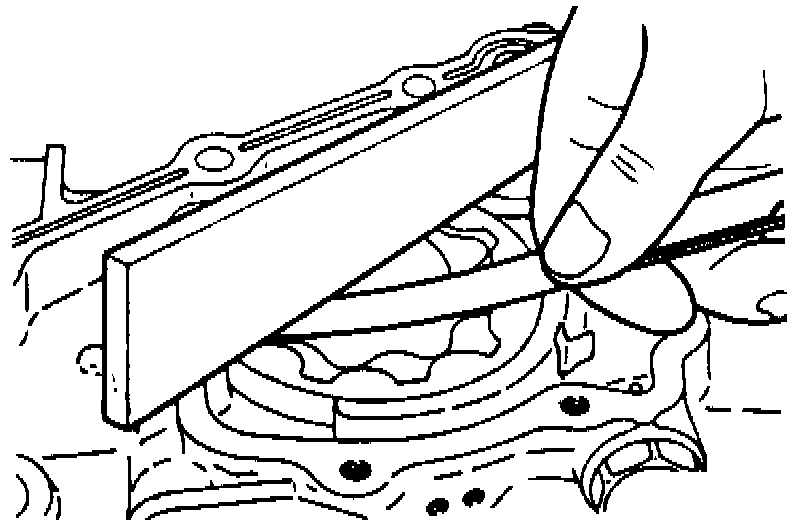

Fig. 27 Rotor Side Clearance Inspection:

2. Inspect oil pump rotor side clearance and ensure a 0.0016-0.0039 inch clearance exists, Fig. 27.

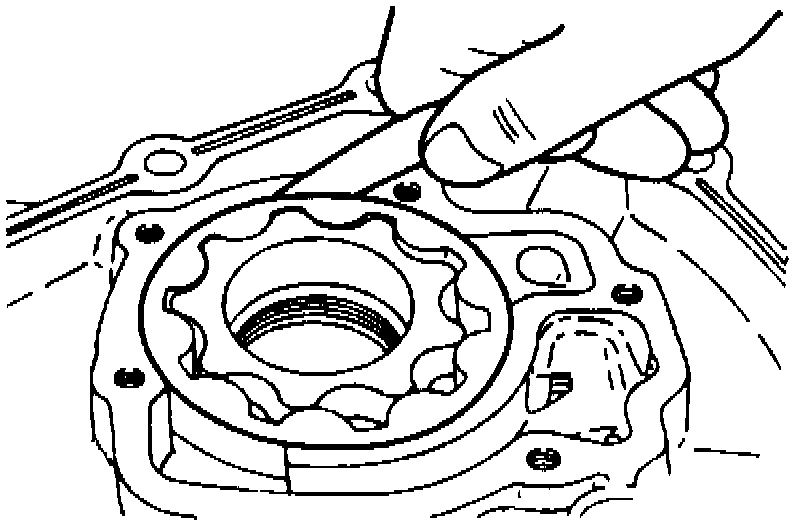

Fig. 28 Body Clearance Inspection:

3. Inspect oil pump body clearance and ensure a 0.0039-0.0071 inch clearance exists, Fig. 28.
