Mitsubishi
>>
1994
>>
Mirage L4-1795cc 1.8L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Cooling System
Cooling System

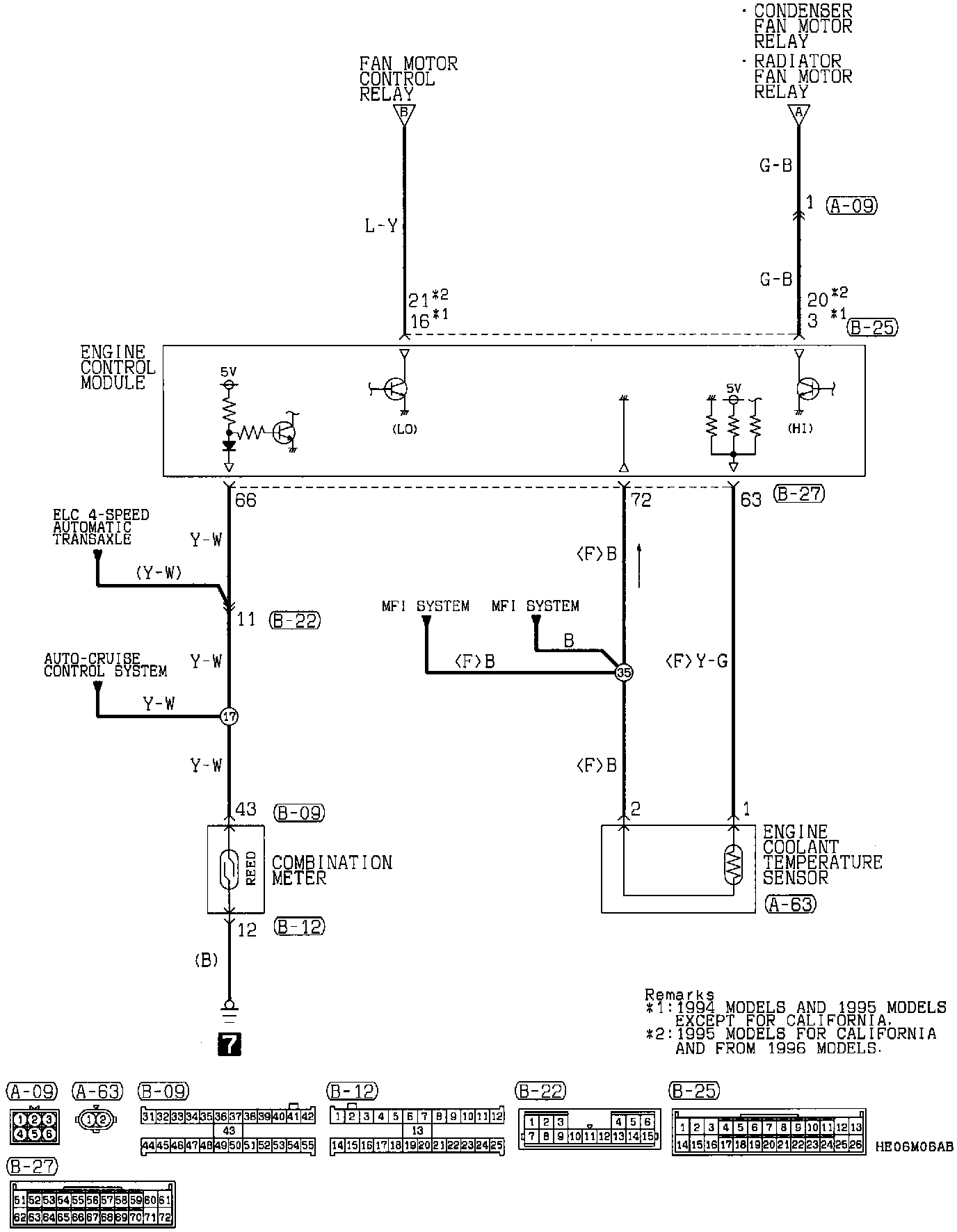

Cooling System (Part 1 Of 2):

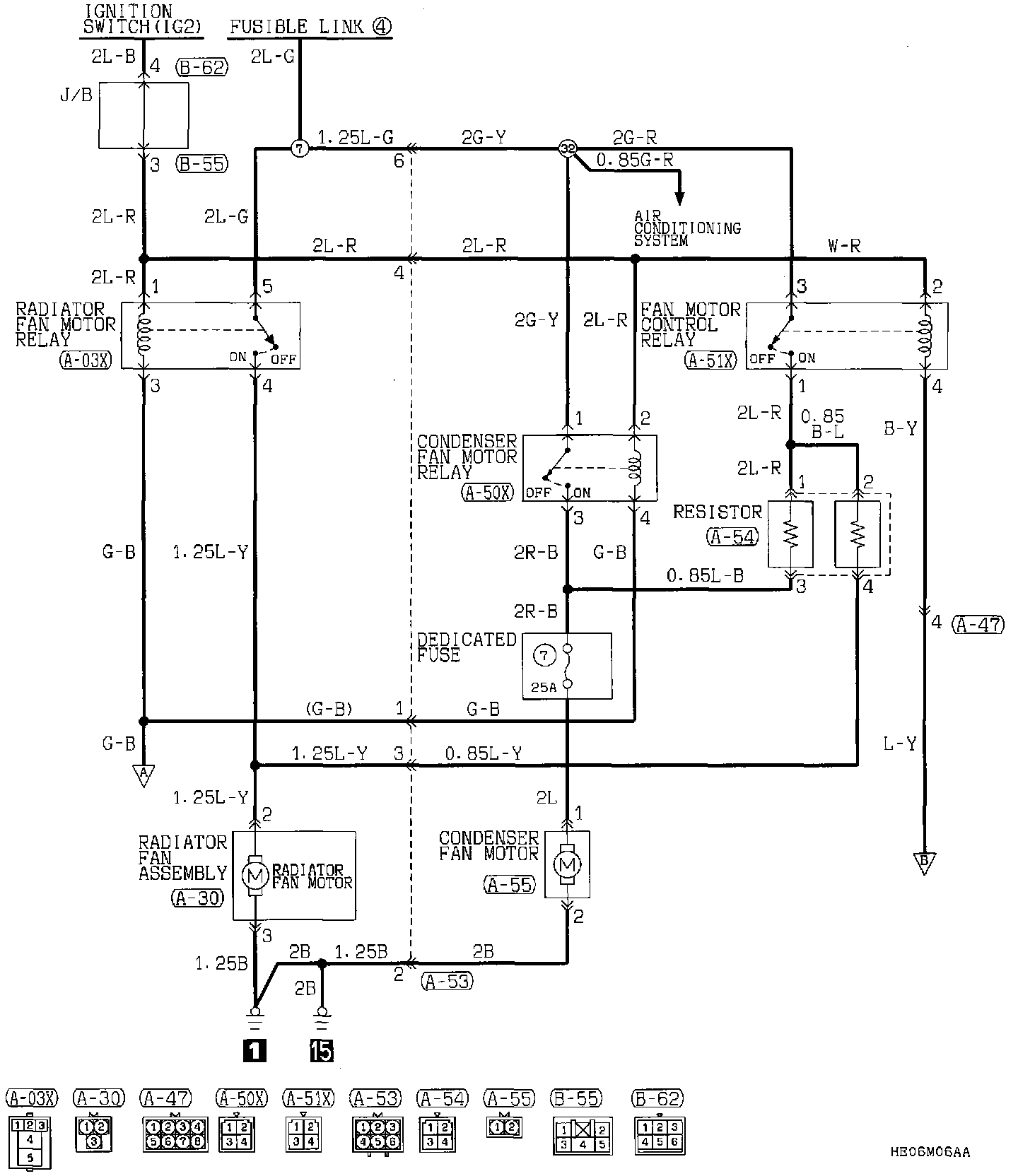

Cooling System (Part 2 Of 2):
