Manual Transmission/Transaxle: Description and Operation

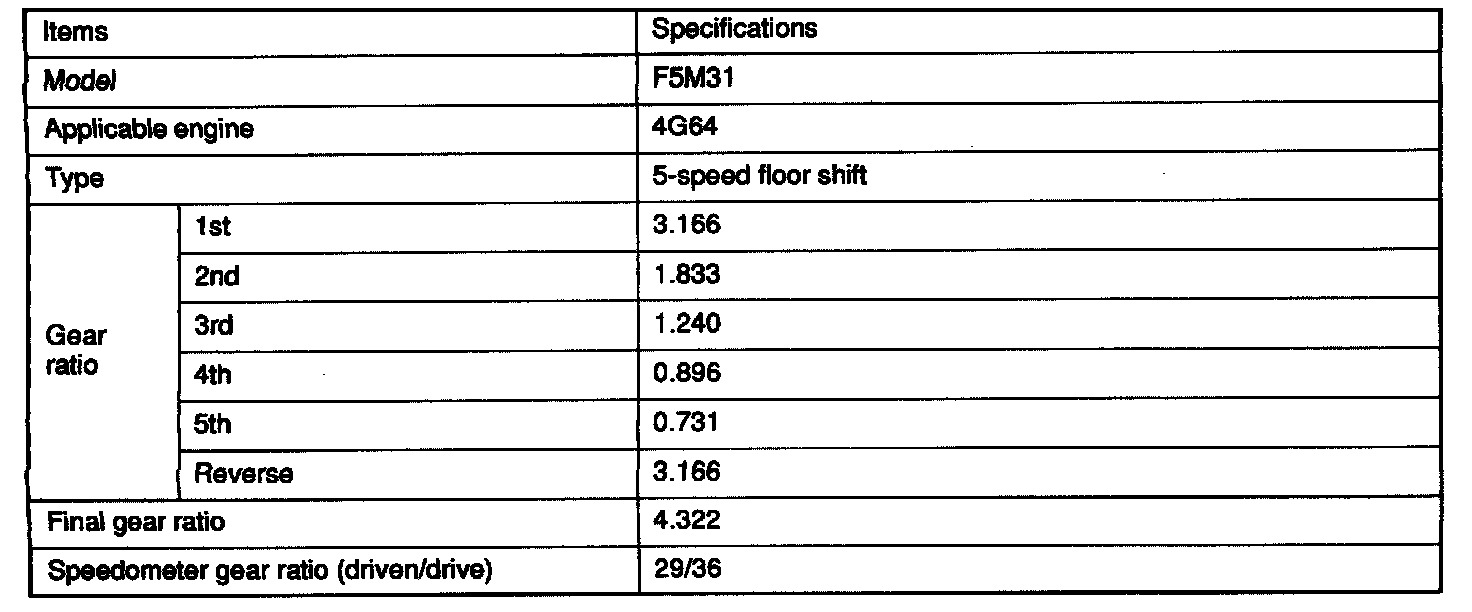

The manual transaxle come in one model, namely, F5M31. The transaxle is essentially the same as the conventional models.

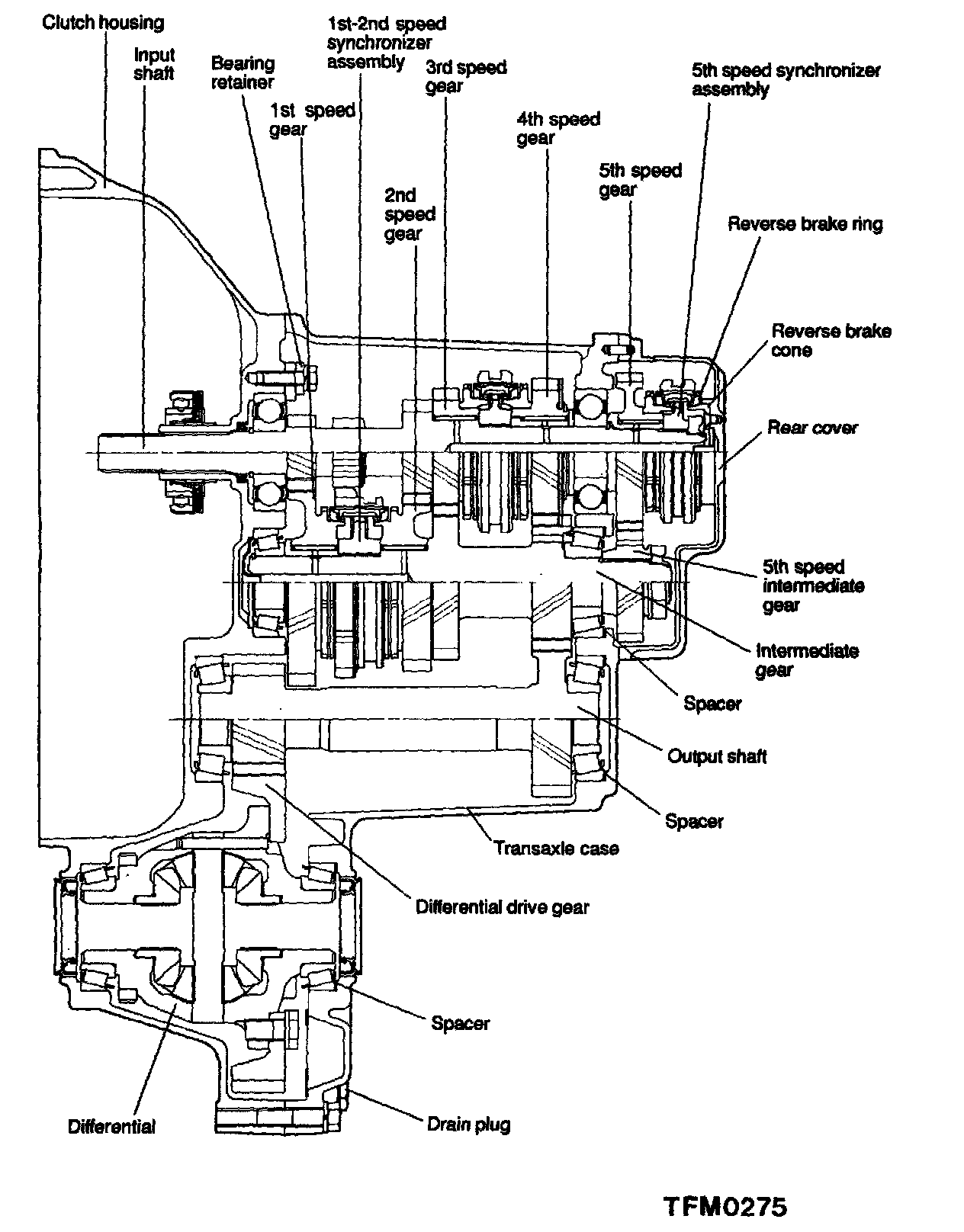

Sectional View:
