Shift Cable: Service and Repair

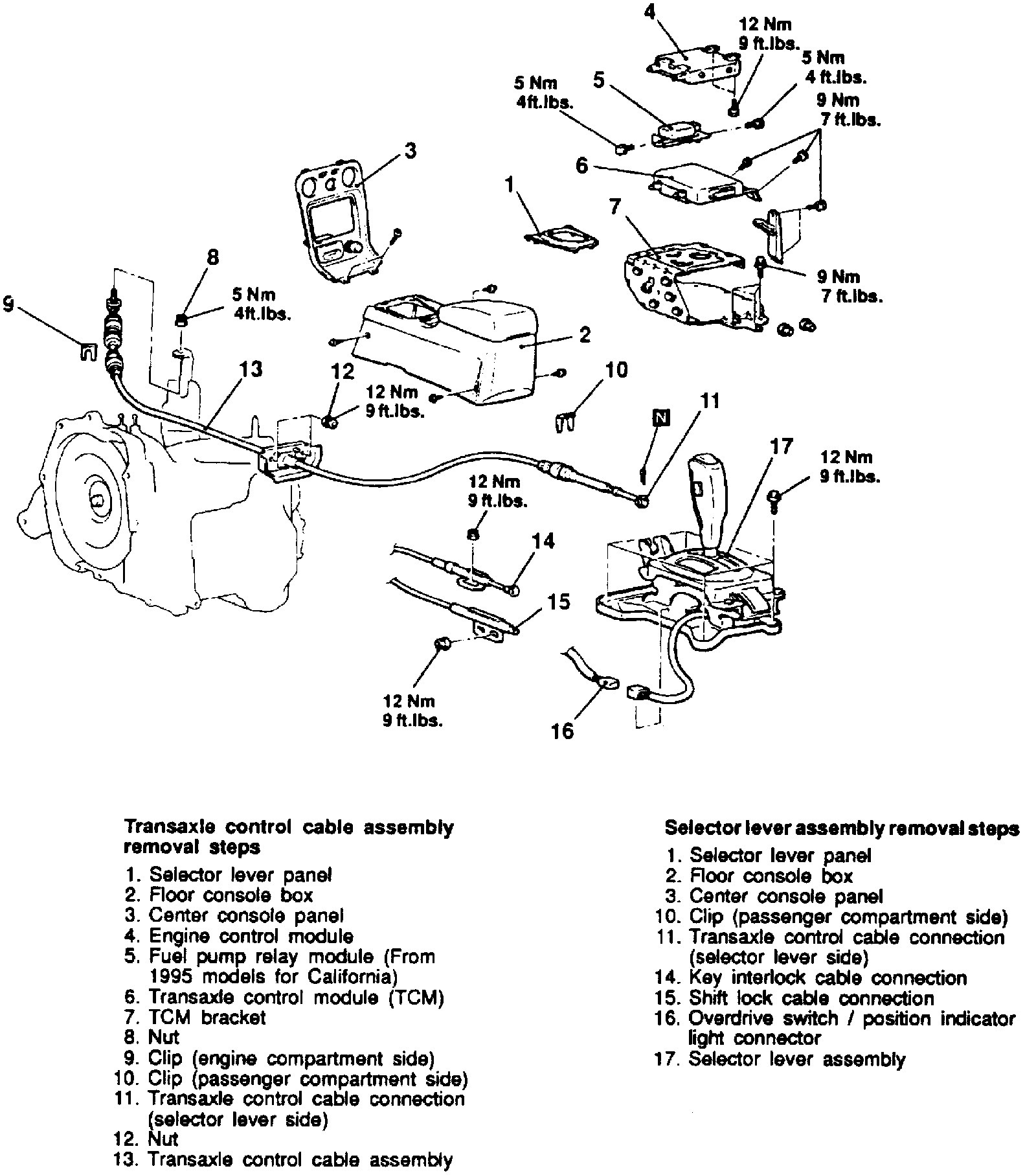

Fig. 32 Control Cable Replacement:





Refer to Figs. 32 when replacing transaxle control cables.
