Toe Control Arm Adjustment - Graduation Value Revised
NO.: TSB-95-34-002DATE: December, 1995
MODEL: 1994-95 Galant
TSB Revision TSB-95-34-002
PURPOSE
The graduation scale value for adjusting the toe control arm mounting bolt is revised.
Write the TSB revision number of this bulletin in the "TSB Revision" box at the bottom of each affected service manual page. The 1996 Galant Service Manual, Volume 1 already has these revisions.
AFFECTED SERVICE MANUAL
1994-95 Galant, Volume 1, Page 34A
1994 Galant Body Repair Manual Page 8-9.
SERVICE MANUAL REVISIONS

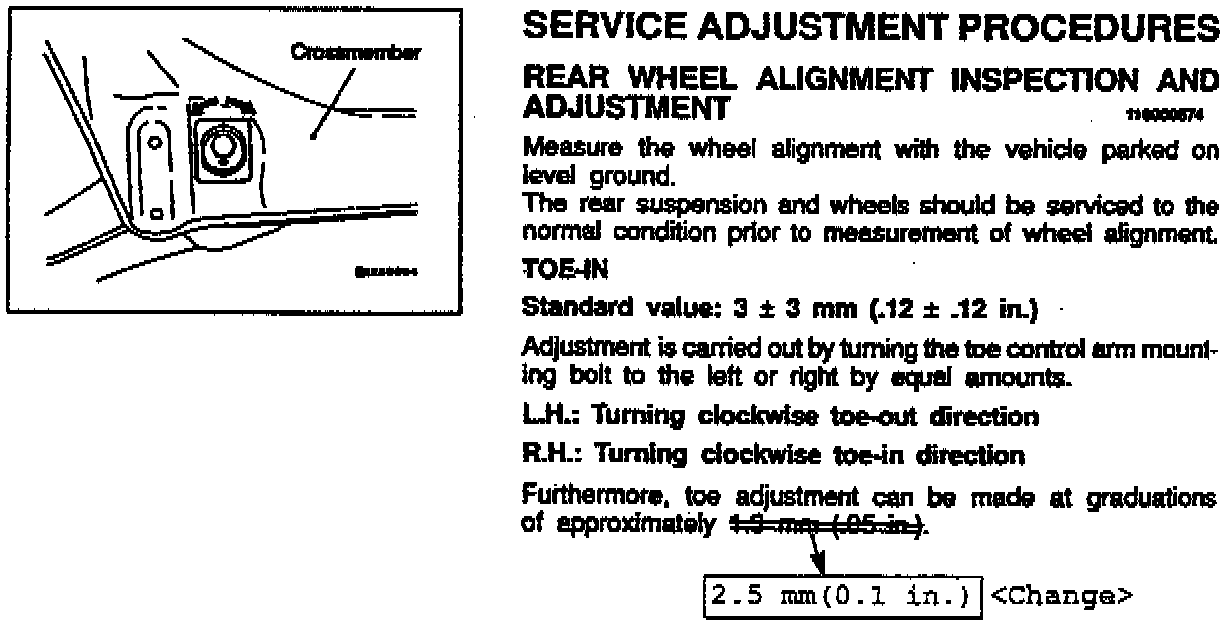

1994-95 Galant, Volume 1, Page 34-4
Change the toe adjustment graduation value as shown.

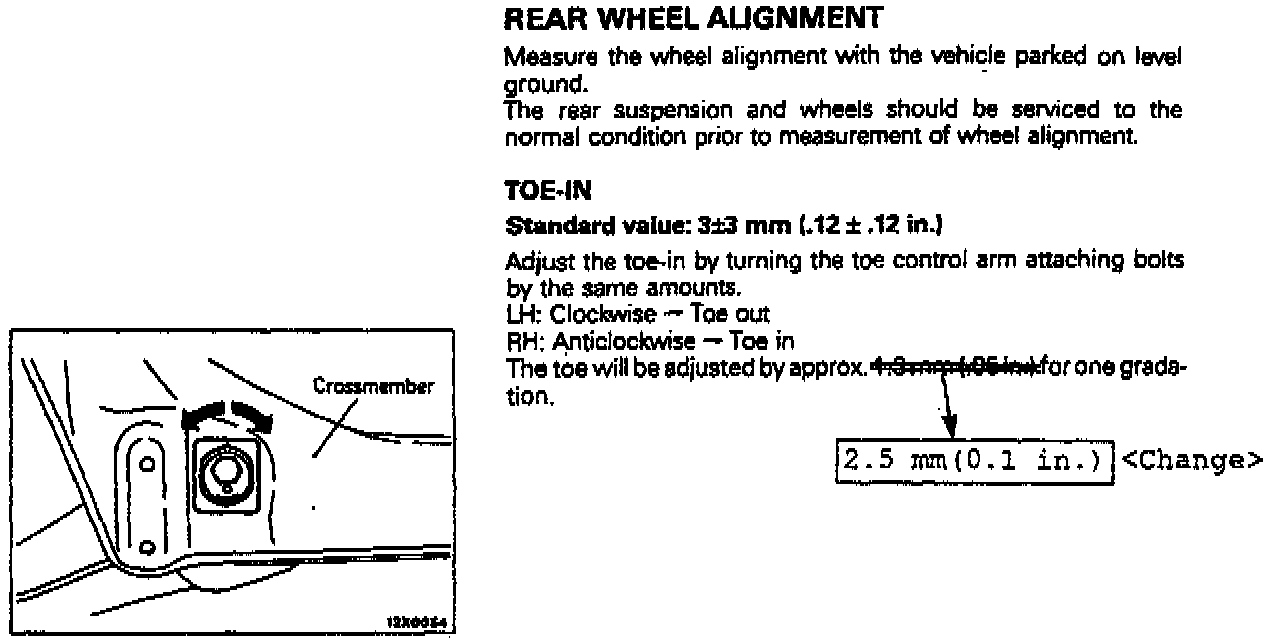

1994 Galant Body Repair Manual, Page 8-9 Change the toe adjustment graduation value as shown.
