Front Drive Shaft Repair Kits - Service Manual Revision
NO.: TSB-96-26-002DATE: June, 1996
MODEL: 1994-96 Galant
SUBJECT:
FRONT DRIVE SHAFT REPAIR KITS - SERVICE MANUAL REVISION
PURPOSE
This bulletin revises information concerning front drive shaft repair kits in the Volume 1 service manuals for the 1994-95 and 1996 Galant. The front drive shaft damper kit is eliminated. A new birfield joint (B.J.) boot repair kit is added. For more information about installing this newly added B.J. boot repair kit, refer to TSB-96-26-001. The part number for the B.J. boot kit is in the 1994-96 Galant parts catalog/microfiche.
Write the TSB Revision number in the "TSB Revision box at the bottom of the affected service manual pages.
AFFECTED VEHICLES
1994-96 Galant
AFFECTED SERVICE MANUAL
1994-95 Galant Volume 1; Page 26-16
1996 Galant Volume 1; Page 26-13
SERVICE MANUAL REVISION

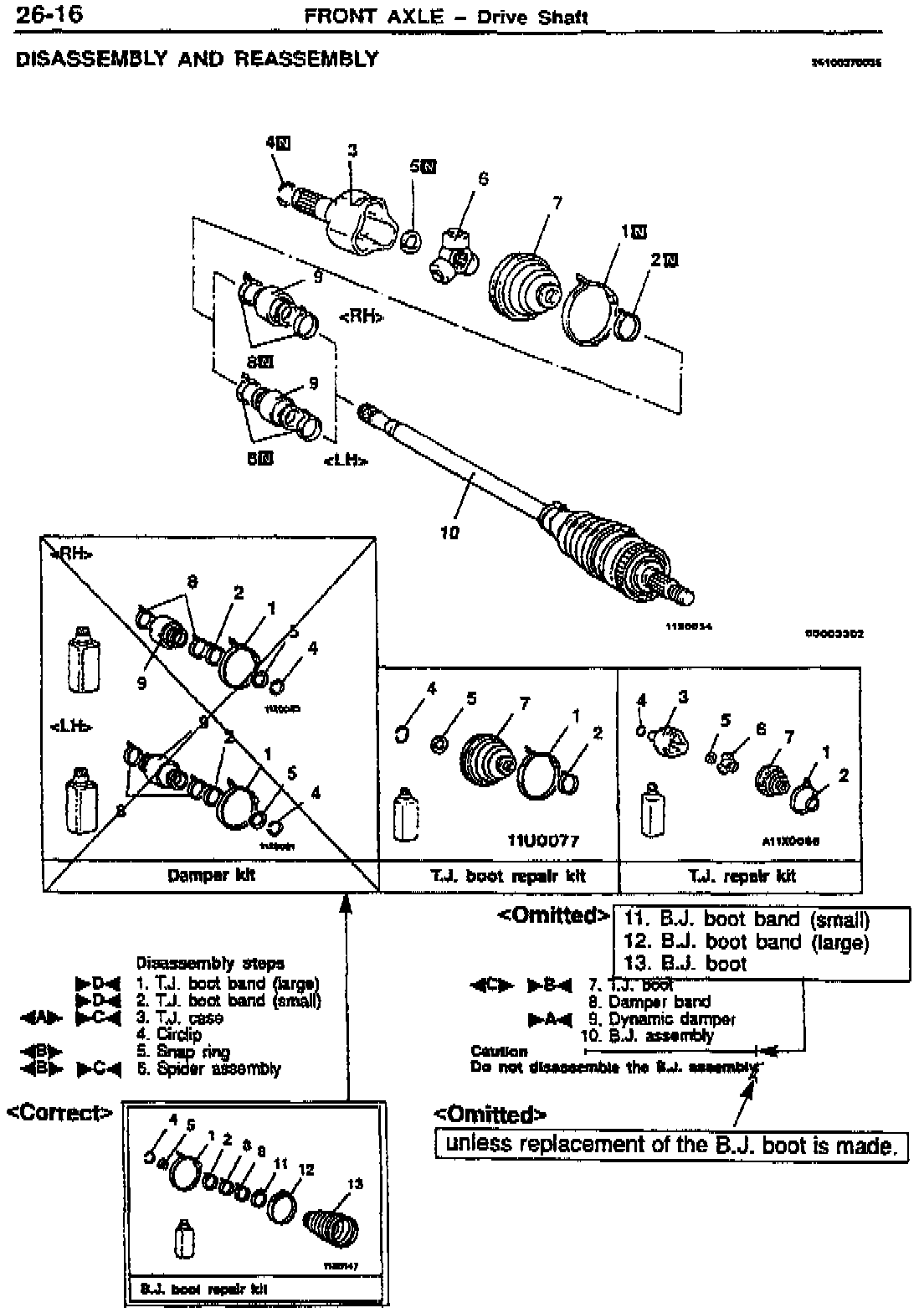

1994-95 Galant Volume 1 Page 26-16
Delete the indicated information about the damper kit and add the B.J. boot repair kit as shown.
1996 Galant Volume 1: Page 26-13
Delete the indicated information about the damper kit and add the B.J. boot repair kit as shown.
