ABS Troubleshooting Chart - Service Manual Revision

No.: TSB-95-35-006

DATE: November, 1995

MODEL: 1994-95 Galant

SUBJECT:
ABS TROUBLESHOOTING CHART - SERVICE MANUAL REVISION

TSB Revision TSB-95-35-006

PURPOSE
The diagnostic procedures in this bulletin update those shown in the 1994-95 edition of the Galant Service Manual, Volume 1, ABS Troubleshooting Charts for diagnosing "Code 51 Valve Relay ON Impossible" and "Codes 41-48 - Solenoid Valve" trouble codes.

Write the TSB revision number of this bulletin in the "TSB Revision" box at the bottom of the affected service manual page. The 1996 Galant Service Manual, Volume 1 already has these revisions.

AFFECTED SERVICE MANUAL

1994-95 Galant, Volume 1, pages 35B-13 & 358-14.





SERVICE MANUAL REVISIONS

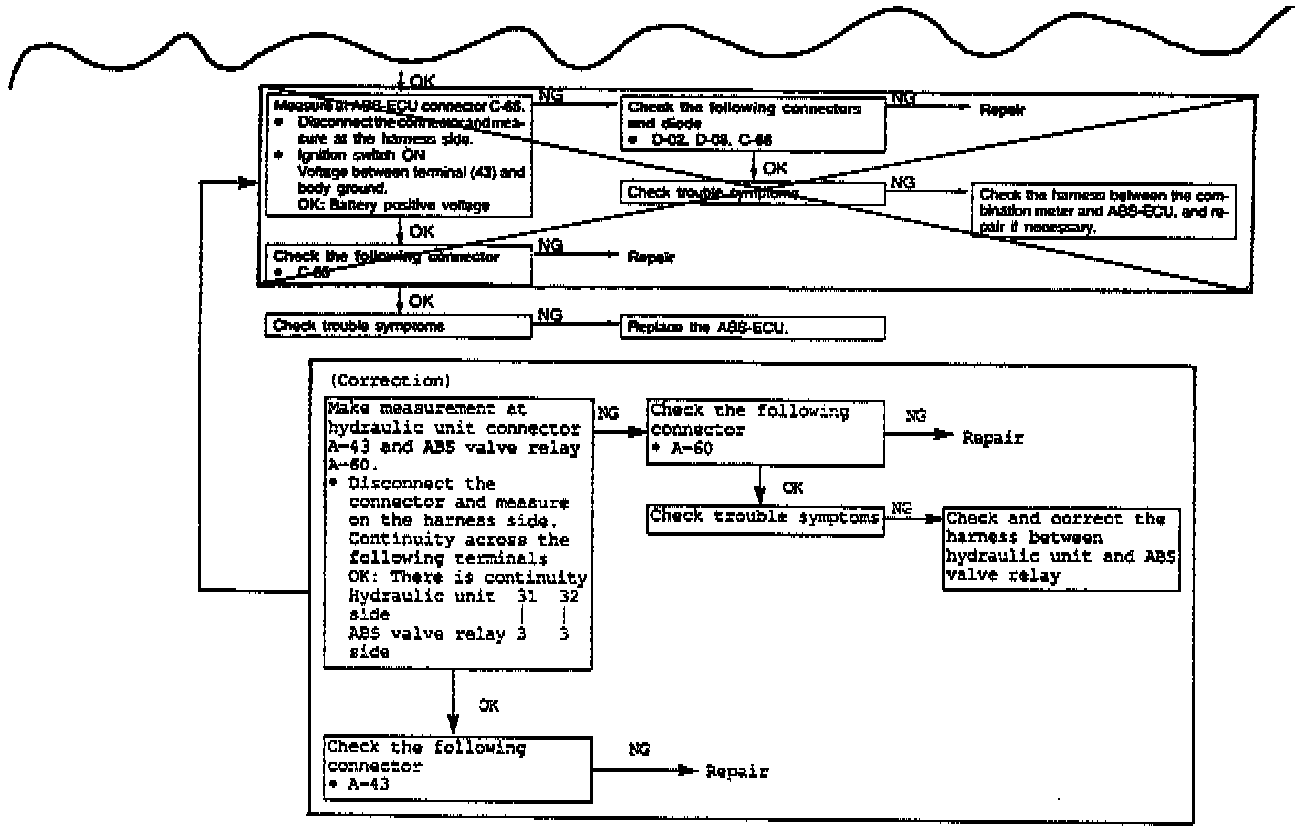

1994-95 Galant, Volume 1, Page 35B-13
Revise the troubleshooting steps as shown.

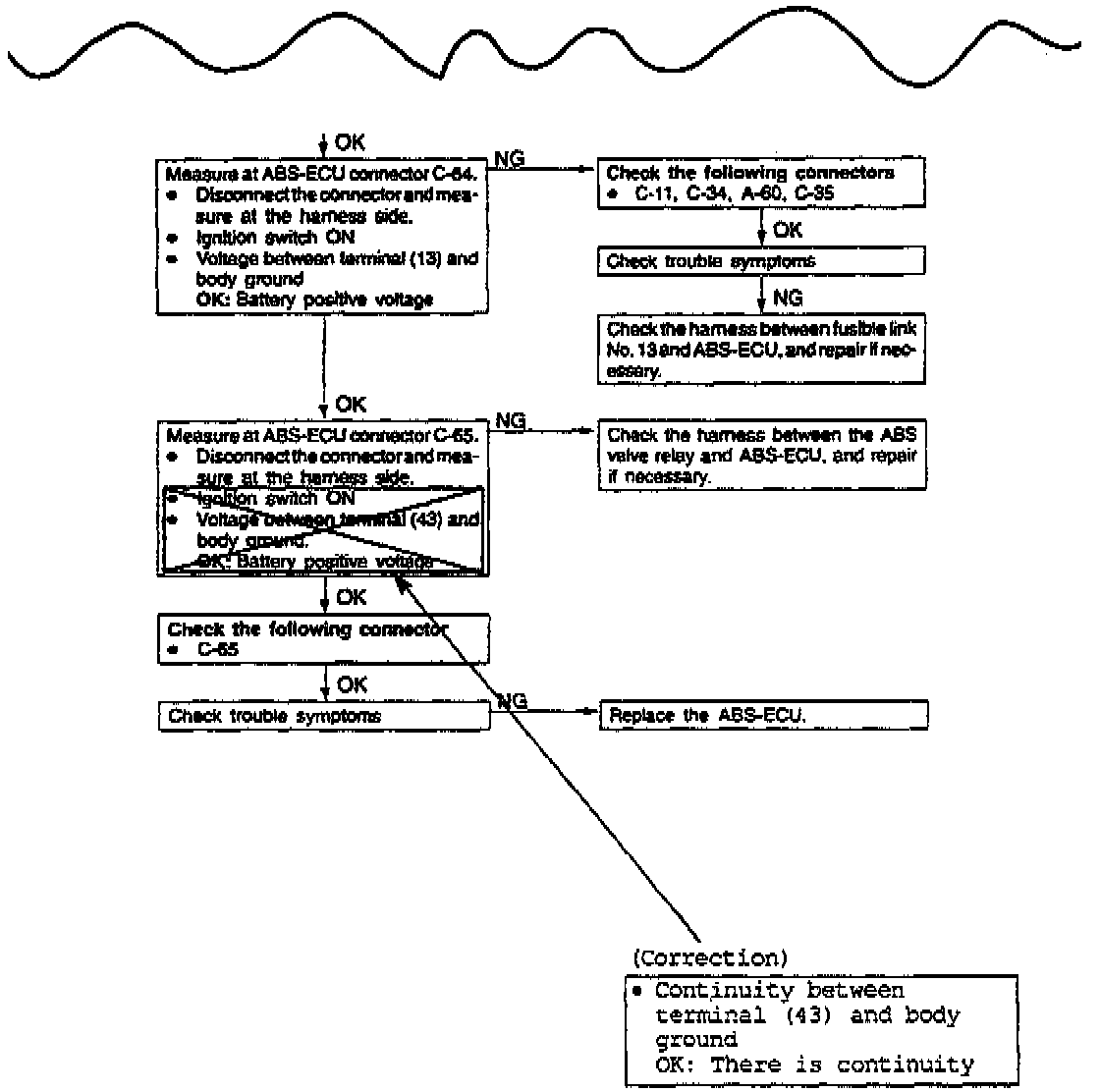

1994-95 Galant, Volume 1, Page 35B-14 Revise the troubleshooting steps as shown.
