A/C Lap Cooler Duct - Service Manual Revision
NO.: TSB-96-55-001DATE: January, 1996
MODEL: 1994-95 Galant
SUBJECT:
ELIMINATION OF LAP COOLER DUCT - SERVICE MANUAL REVISION
TSB Revision TSB-98-55-001
PURPOSE
The air conditioner lap cooler ductwork is eliminated on all Galants produced after September 12, 1994. This bulletin revises the 1994-95 Galant Service Manual, Volume 1, to reflect this production change.
To reference this bulletin in the service manual, write the TSB Revision number in the TSB Revision box located at the bottom of the affected service manual page.
NOTE:
When servicing, always use the latest edition of the Service Manual. The older version may contain information that is no longer valid.
AFFECTED SERVICE MANUAL
1994- 95 Galant, Volume 1

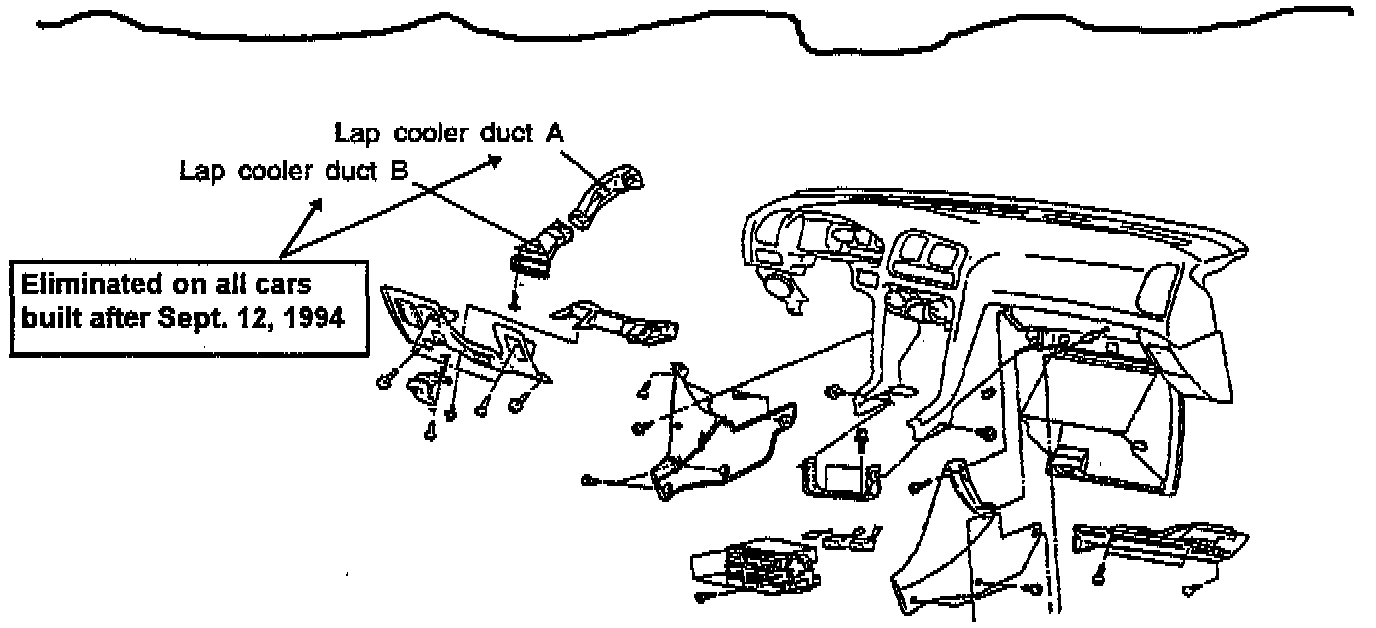

SERVICE MANUAL REVISION
1994-95 Galant, Volume 1, Page 55-43
Make changes to the manual as shown.
