Trailing Arm: Service and Repair

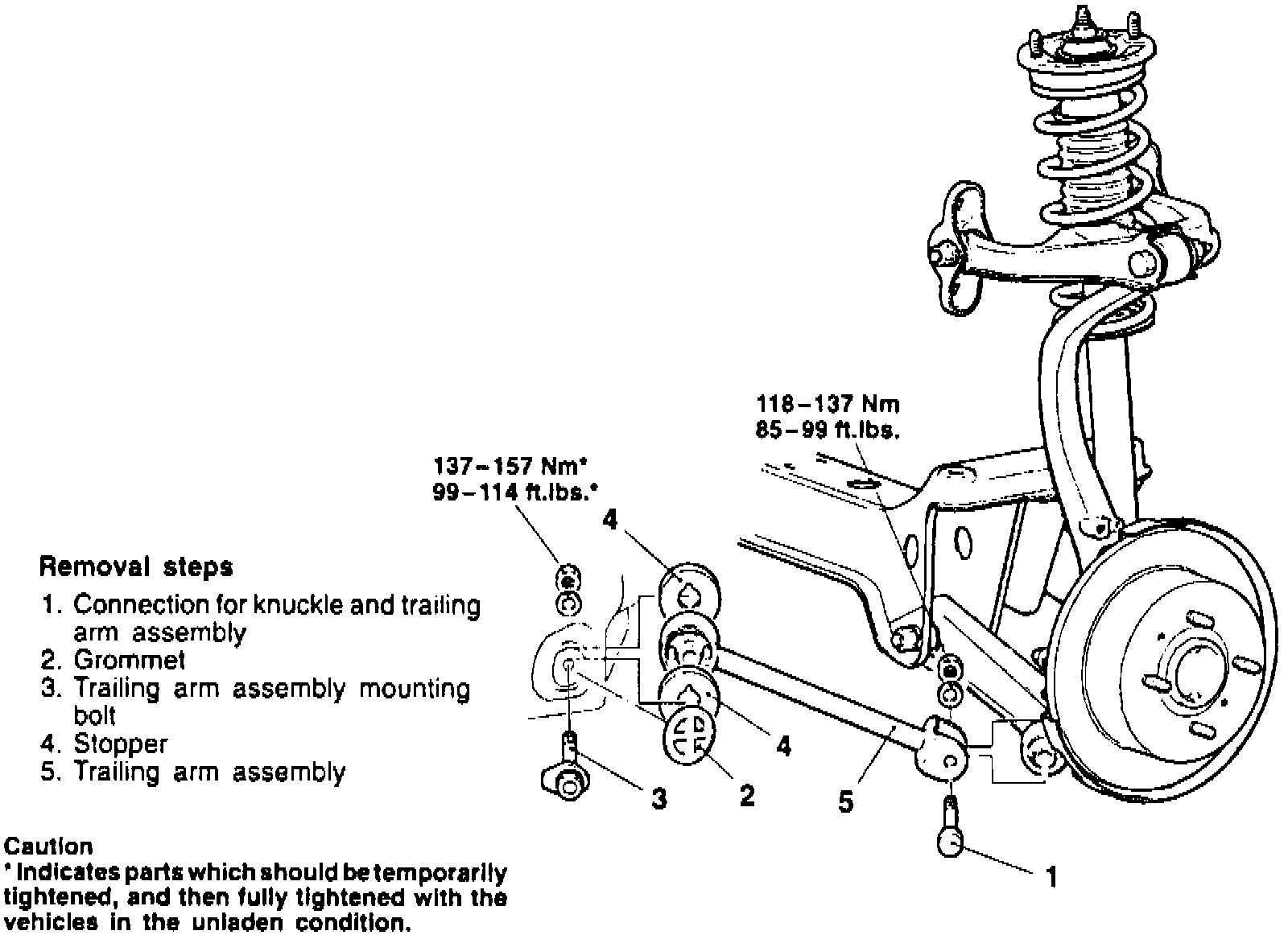

Fig. 15 Trailing Arm Replacement:

1. Remove trailing arm assembly in numbered sequence shown, Fig. 15.
2. Reverse procedure to install, noting the following:
a. Tighten all bolts and nuts to specifications, Fig. 15.
b. Inspect and adjust rear wheel alignment as necessary.
