Upper Control Arm

1. Raise and support front of vehicle.

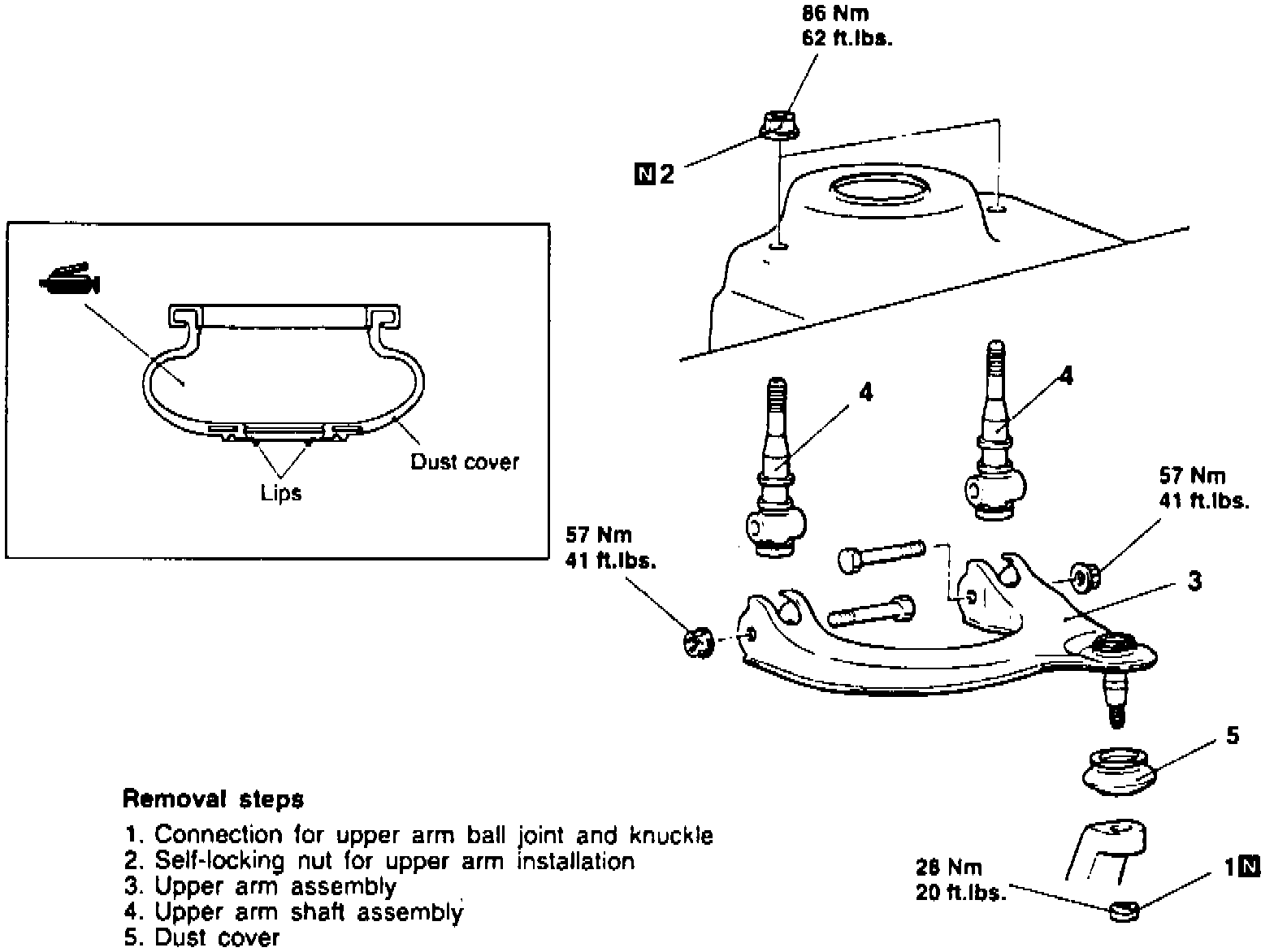

Fig. 6 Upper Control Arm Replacement:

2. Remove upper arm assembly in numbered sequence shown, Fig. 6.
3. Reverse procedure to install. Inspect and adjust wheel alignment as necessary.
